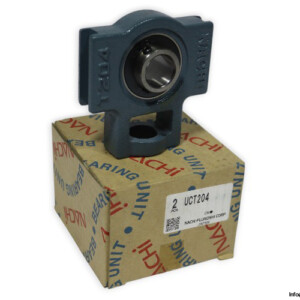

Nachi UCT 204 Take UP Ball Bearing Unit
New
In stock2 unitsReady to ship
Take-Up Bearing Unit
Nachi UCT204 take-up ball bearing unit with UC204 insert, 20 mm bore, cast iron housing, and set screw locking for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

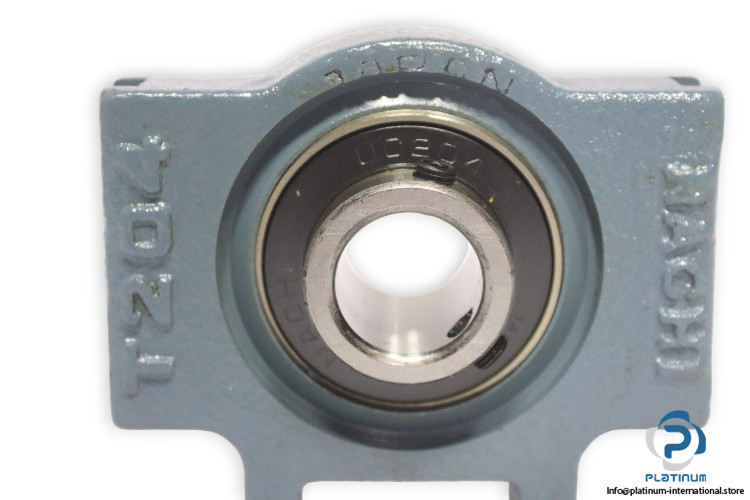

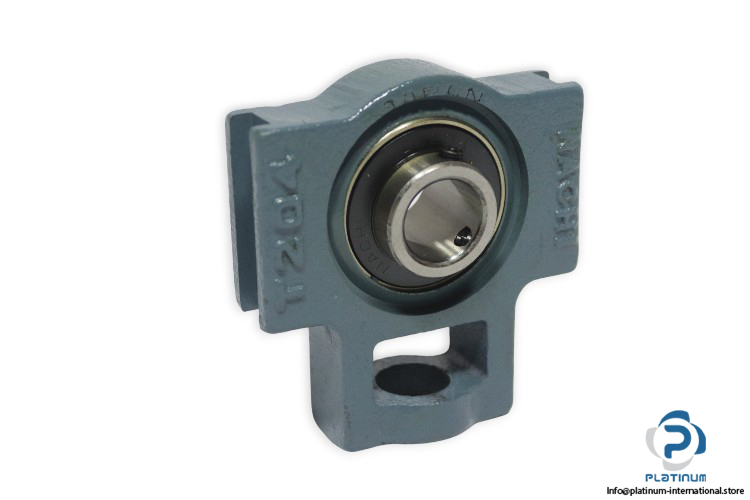

Nachi UCT204 Take-Up Ball Bearing Unit
The Nachi UCT204 is a take-up ball bearing unit designed to provide reliable shaft support and smooth operation in industrial applications. It combines a UC204 insert bearing with a T204 cast iron housing, offering durability, easy alignment, and secure shaft locking.
Manufacturer: Nachi
Type: Take-Up Ball Bearing Unit
Model: UCT204
Bearing Number: UC204
Housing Number: T204
| Shaft Diameter (d) | 20 mm |
| Overall Width (A) | 32 mm |
| Width of Inner Ring (B) | 31 mm |
| Overall Height (H) | 89 mm |
| Height of Attachment End (H2) | 51 mm |
| Distance from Attachment End Face to Center Line of Spherical Seat Diameter (L1) | 61 mm |
| Overall Length (L) | 94 mm |
| Basic Load Rating (Dynamic) | 12,800 N |
| Basic Load Rating (Static) | 6,600 N |
| Housing Type | Take-Up |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
