Nachi UKP205 Pillow Block Ball Bearing Unit
features 20 mm shaft diameter, tapered bore, 140 mm length, 70 mm height, and is ideal for industrial machinery applications.

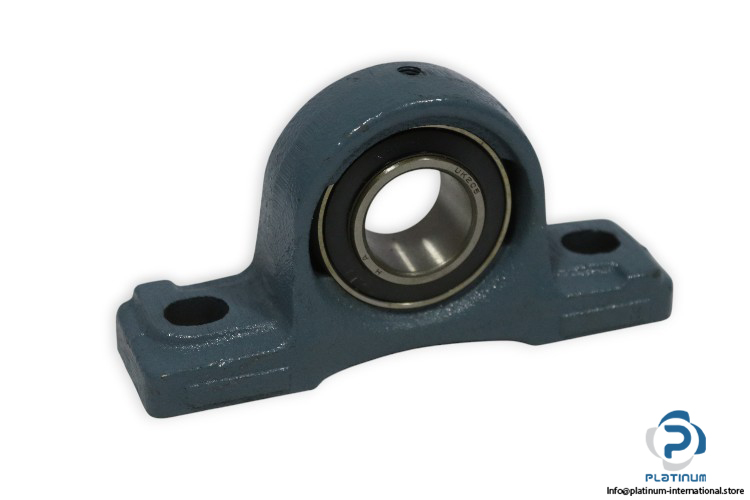

NACHI UKP205 Pillow Block Ball Bearing Unit
The NACHI UKP205 Pillow Block Ball Bearing Unit is designed for robust performance in industrial applications. With a shaft diameter of 20 mm and a tapered bore, this unit ensures reliable and smooth operation. It features a length of 140 mm, height of 70 mm, and width of 35 mm, making it suitable for various machinery such as conveyors, pumps, and other heavy-duty equipment. The unit is designed to handle significant loads, with a bore type that enables easy installation and secure fit.
Technical Specifications:
- Manufacturer: NACHI
- Type: Pillow Block Ball Bearing Unit
- Model: UKP205

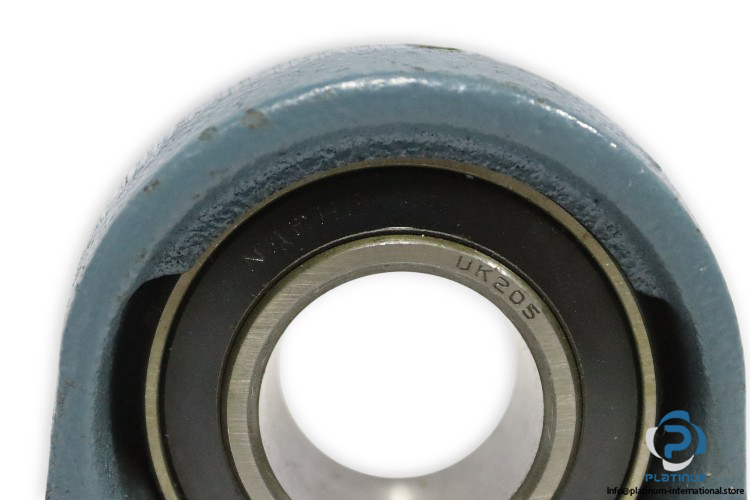

- Bearing No.: UK205

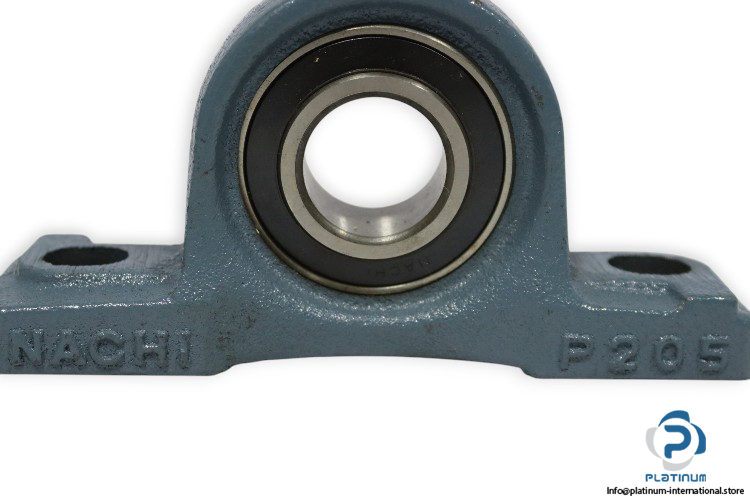

- Housing No.: P205

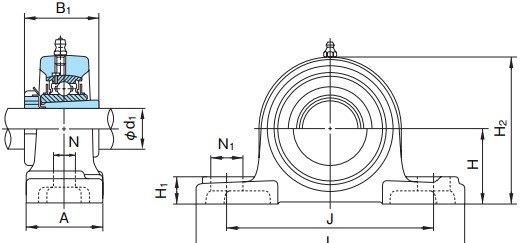

- Shaft Diameter: 20 mm
- Overall Length: 140 mm
- Overall Height: 70 mm
- Width of Inner Ring: 35 mm
- Height of Spherical Seat Center: 36.5 mm
- Distance Between Attachment Bolts: 105 mm
- Bore Type: Tapered Bore
With its durable design and ease of installation, the UKP205 is an ideal choice for industries that demand high performance, longevity, and minimal maintenance.
