Nachi UCF 204 Square Flange Ball Bearing Unit
New
In stock3 unitsReady to ship
Square Flanged Bearing Unit
Nachi UCF204 square flanged ball bearing unit with 20 mm bore, cast iron housing, and set screw locking for stable industrial mounting.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

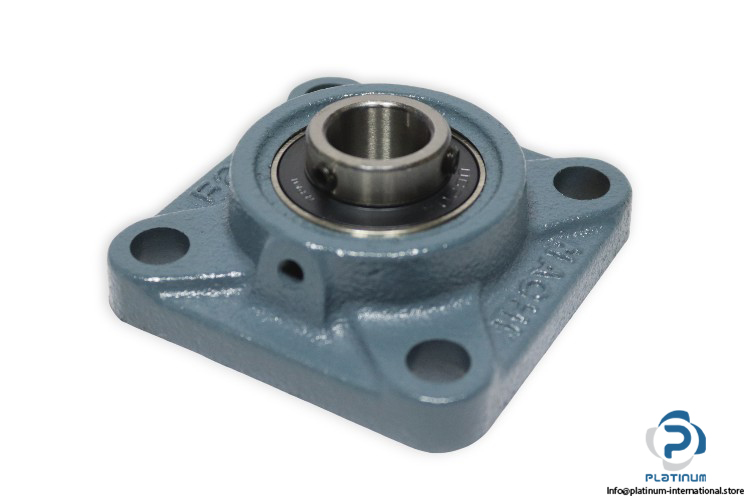

Nachi UCF204 Square Flanged Ball Bearing Unit
The Nachi UCF204 is a square flanged ball bearing unit designed to provide reliable shaft support, stable mounting, and long service life in industrial applications. Its cast iron housing and set screw locking system ensure secure installation and dependable performance under load.

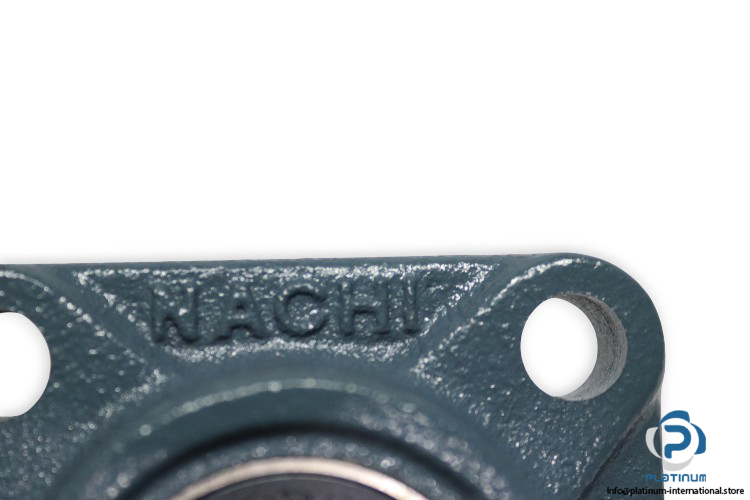

Manufacturer: Nachi
Type: Square Flanged Ball Bearing Unit
Model: UCF204

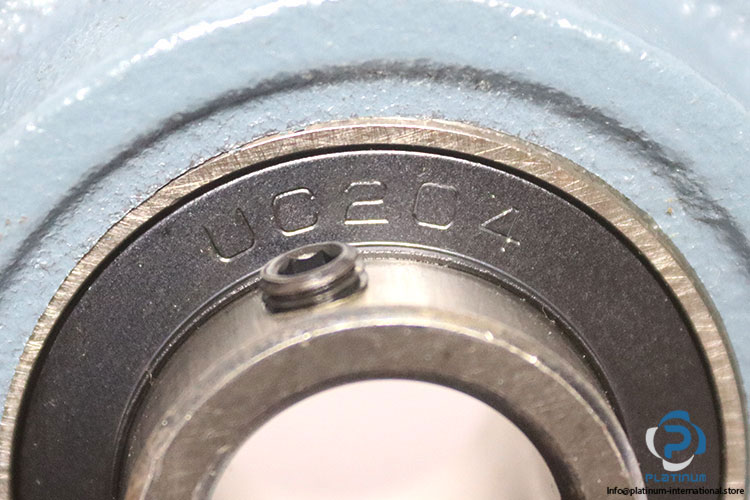

Bearing Number: UC204

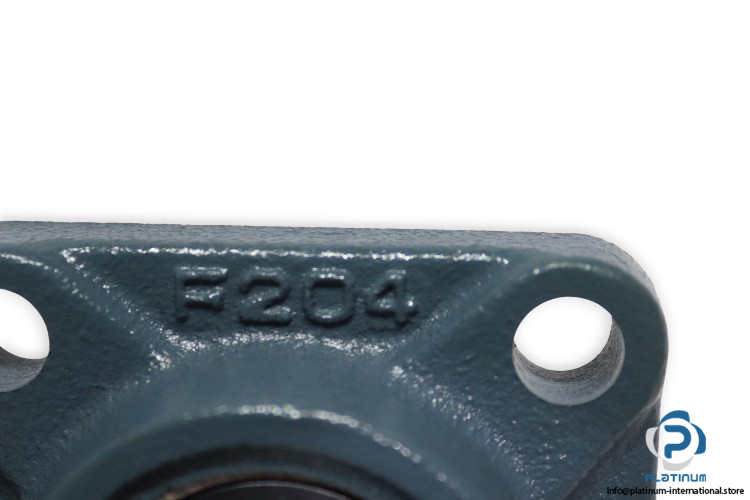

Housing Number: F204

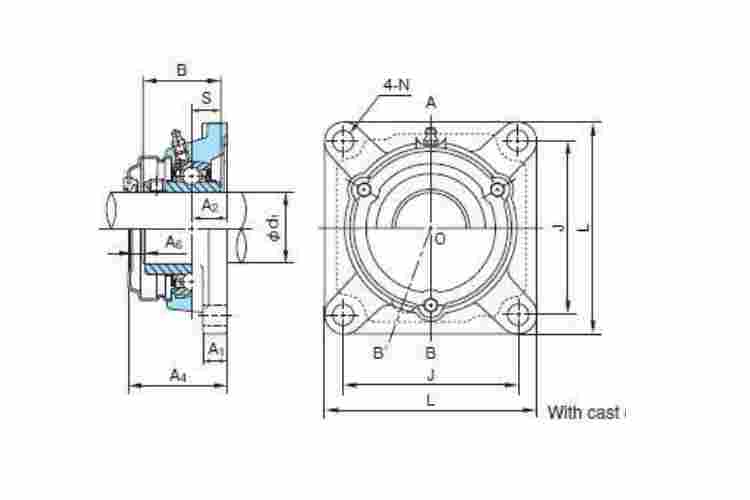

| Shaft Diameter (d) | 20 mm |
| Outside Diameter (L) | 86 mm |
| Pitch Diameter of Attachment Bolts (J) | 64 mm |
| Length of Attachment Bolt Hole (N) | 12 mm |
| Width of Inner Ring (B) | 31 mm |
| Overall Width (A0) | 33.3 mm |
| Dynamic Load Rating | 12,800 N |
| Static Load Rating | 6,600 N |
| Bolt Size | M10 |
| Locking Device | Set Screw |
| Housing Type | Square Flange, Cylindrical Bore |
| Housing Material | Cast Iron |
