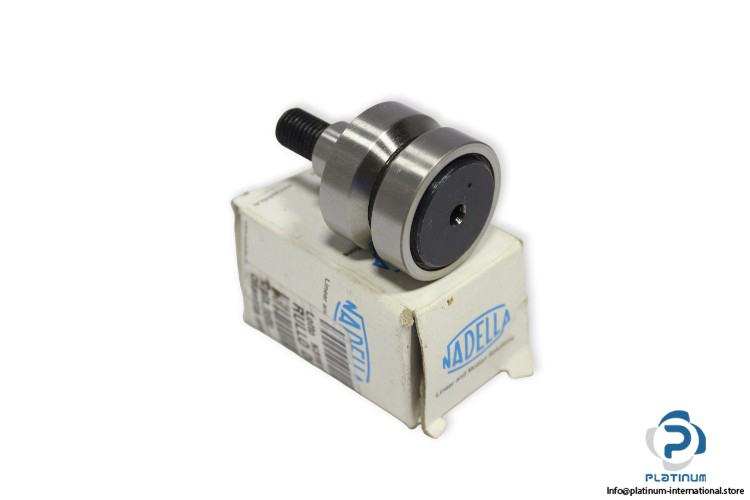

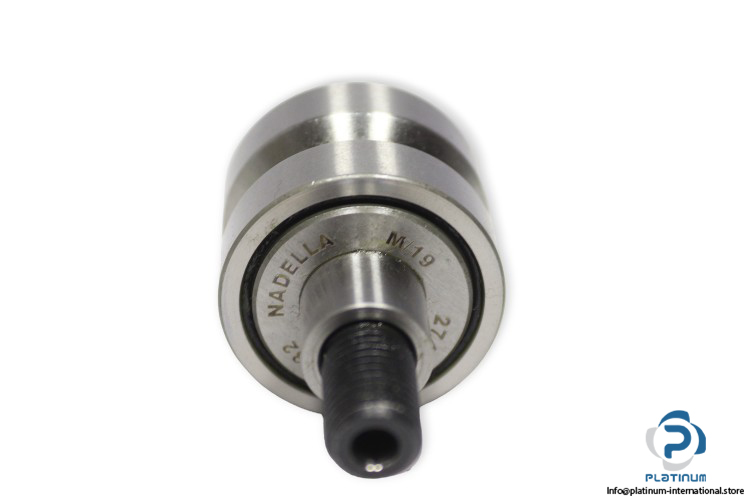

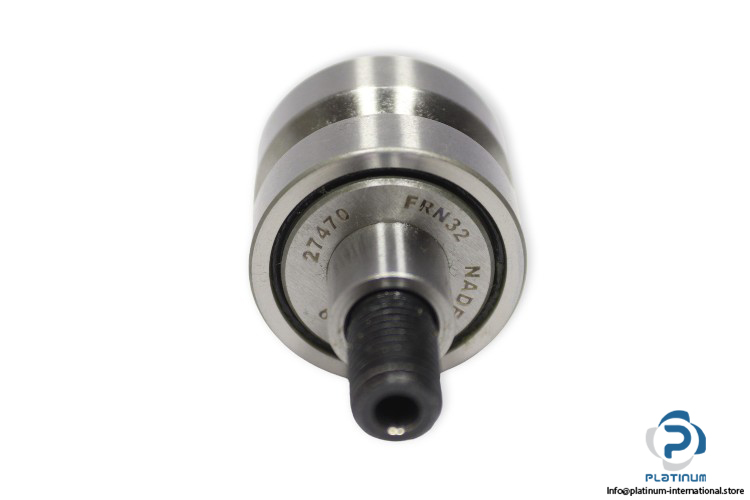

Nadella FRN32 Guide Roller
Manufacturer: NADELLA
Type: GUIDE ROLLERS FRN
Model: FRN32
Design: concentric
Dimensions
Outside diameter De: 32 mm
Stud diameter d1: 14 mm
Total length L: 52 mm
Width outer ring A: 24.2 mm
Thread stud d: M10x1.25
Basic load ratings Dynamic:
Radial C wr: 5600 N
axial C Wa: 2100 N
Limit loads of the stud:
Radial Fr: 2030 N
axial Fa: 950 N
Torque wrench settings: 20 Nm
Pressure angle α: 40°
