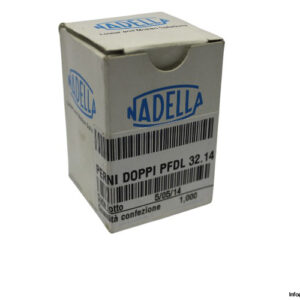

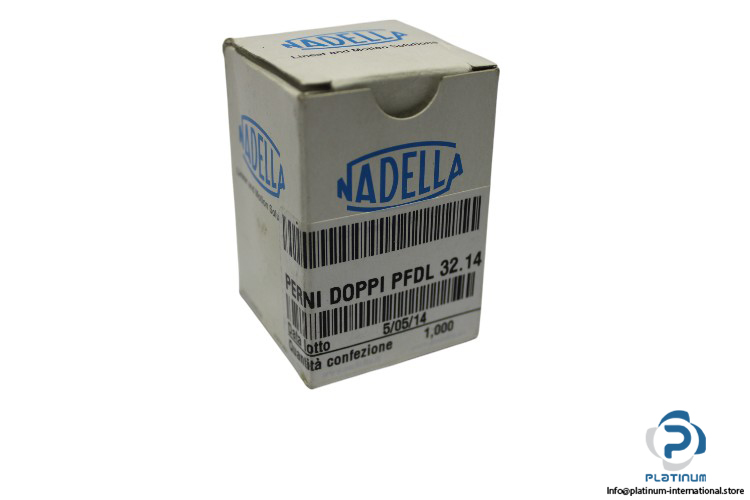

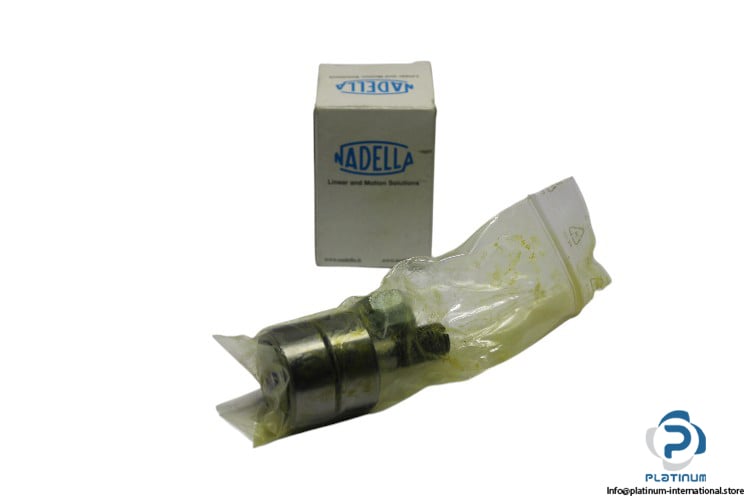

Nadella PFDL32.14 Stud Type CAM Follower
New
In stock3 unitsReady to ship
Stud Type Cam Follower (Double)
The Nadella PFDL32.14-A1.2203 Stud Type Cam Follower features a 32mm outer diameter, M12x1.5 thread, and 4800 rpm grease lubrication for industrial applications.bearingCamControlDoubleFollowerGreasehigh-loadIndustriallubricationM12X1.5MotionNadellaPFDL32.14-A1.2203PrecisionStudType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Nadella PFDL32.14-A1.2203 Stud Type Cam Follower (Double)
The Nadella PFDL32.14-A1.2203 Stud Type Cam Follower (Double) is a high-performance bearing component designed for precision motion control in industrial applications. Featuring a robust construction, high load capacity, and efficient grease lubrication, this cam follower ensures durability and smooth operation under demanding conditions.
Manufacturer: Nadella
Type: Stud Type Cam Follower (Double)
Model: PFDL32.14-A1.2203
Basic Load Ratings:
| Outside Diameter (D) | 32 mm |
| Attachment Diameter (d) | 12 mm |
| Total Length | 60 mm |
| Width Outer Ring (C) | 29 mm |
| Thread Stud (G) | M12x1.5 |
| Dynamic (Fr) | 1900 N |
| Static (F0r) | 3000 N |
| Speed Limits (Grease Lubrication) | 4800 rpm |
