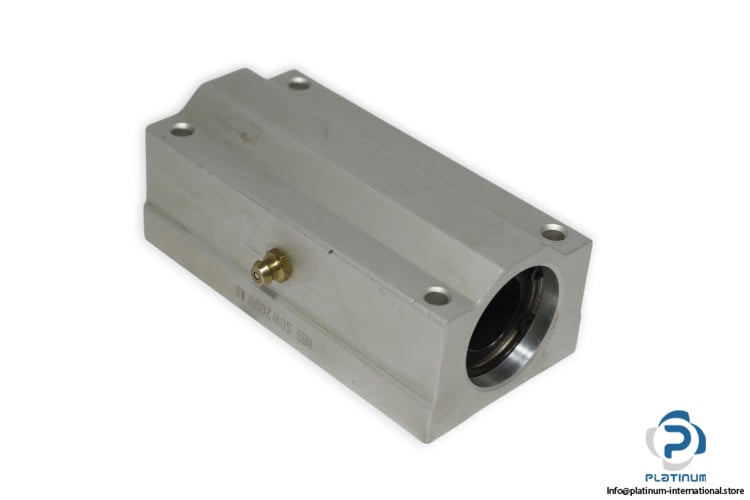

NBS SCW20UUAS Linear Bearing Unit
New
Manufacturer: NBS
Type: LINEAR BEARING UNITS (Long)
Model: SCW20 UU AS
Normal series: SCW, Long
Shaft diameter d: 20 mm

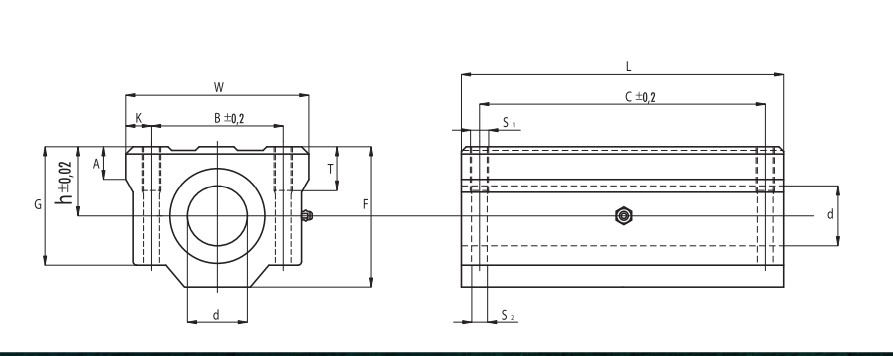

Dimensions:
W: 54 mm
Total height F: 42 mm
h: 21 mm
Height of block G: 36 mm
A: 11 mm
L: 106 mm
B: 40 mm
T: 12 mm
C: 90 mm
Dynamic load rating: 1440 N
Static load rating: 2800 N
Seal: UU, seals with both sides
Block type code: AS, Flange-Standard Height of block (with oil hole)
