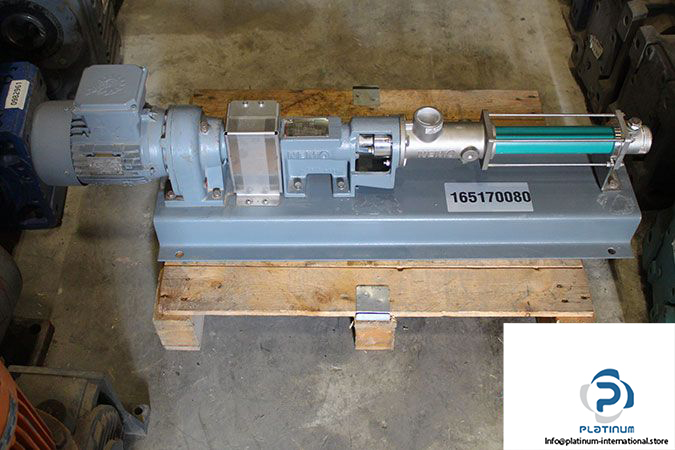

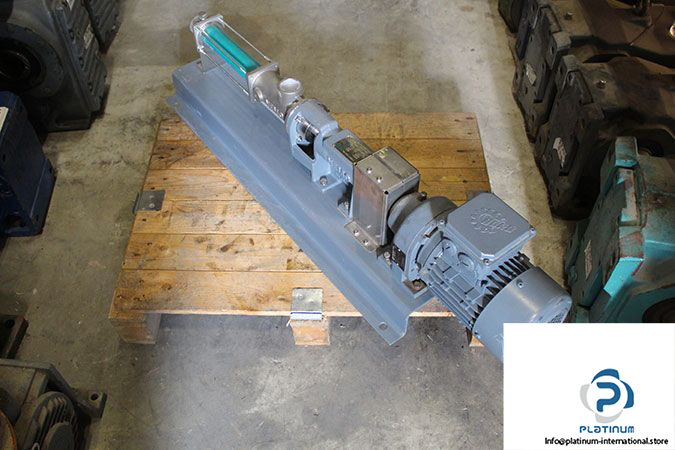

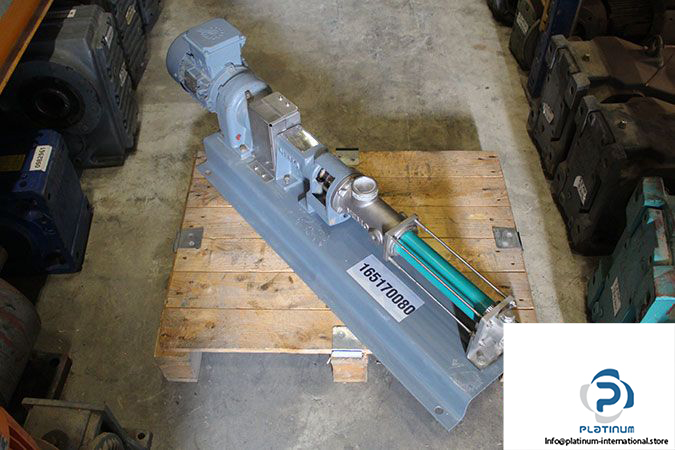

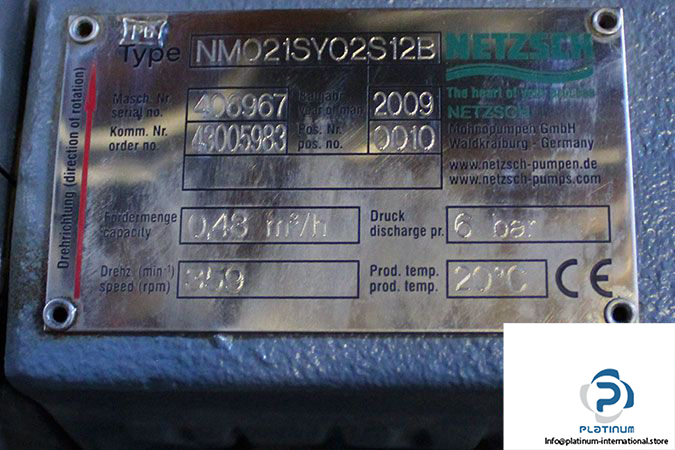

Netzsch NM021SY02S12B Nemo Pump

Manufacturer: Netzsch

Type: Nemo Progressing Cavity Pumps

Model: NM021SY02S12B

Capacity [m³/h]: 0.43

Discharge Pressure [bar]: 6

Prod. Temperature [°C]: 20

Rated Speed [min^-1]: 359

Pump Size: 021

Number of Stages: 02

Geometry: S

Force For all Direction [N]: 550

Torque For all Direction [Nm]: 300

Standard Nominal Diameter [DN]: 32

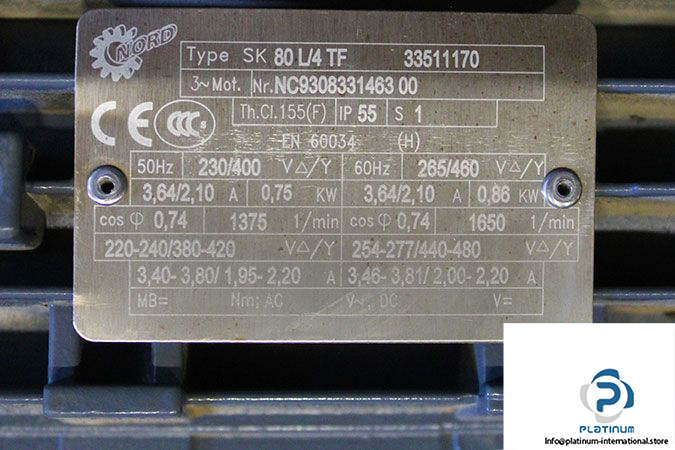

Attachment: NORD SK80L/4 TF 3 PHASE ELECTRIC MOTOR

Manufacturer: Nord

Type: 3 Phase Electric Motor

Model: SK80L/4TF

Rated Voltage 50Hz [V]: 230 / 400

Current [A]: 3.64 / 2.1 Delta /Star

Rated Power [kW]: 0.75

Frequency [Hz]: 50

Power Factor: 0.74

Rated Speed [rpm]: 1375

Permissible Voltage Range [V]: 220-240/380-420

Permissible Current Range [A]: 3.4-3.8/1.95-2.2

Rated Voltage 60Hz [V]: 265 / 460

Current [A]: 3.64 / 2.1 Delta /Star

Rated Power [kW]: 0.86

Frequency [Hz]: 60

Power factor: 0.74

Rated Speed [rpm]: 1650

Permissible Voltage Range [V]: 254-277/440-480

Permissible Current Range [A]: 3.46-3.81/2.0-2.2

Thermal Class of Insulation System: 155(F)

Protection Class [IP]: 55

Operating Mode: S1

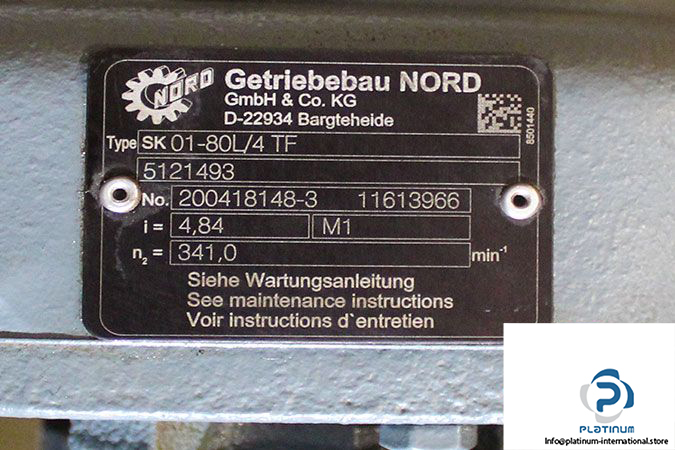

Gear Unit Model: SK 01-80L/4 TF

Gear Unit Type: Helical Gear Unit

Overall Gear Unit Ratio: 4.84

Rated Speed of Gear Unit Drive Shaft [rpm]: 341.0

Weight [kg]: 42
