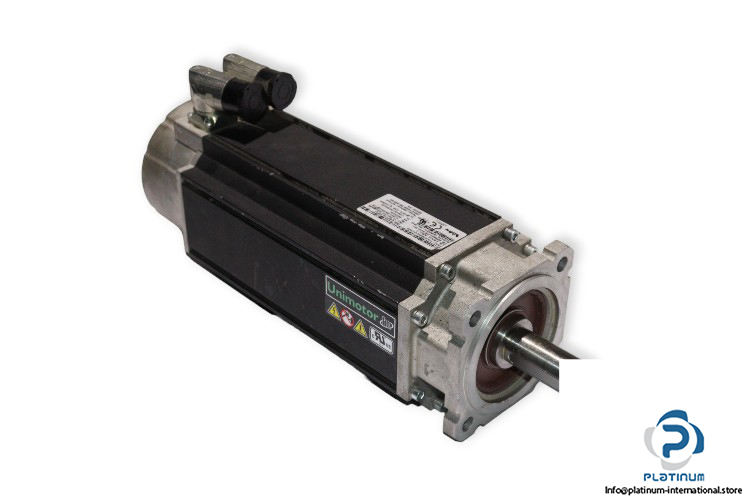

Nidec 115U3D300BFCAA115240 Servo Motor
Used
In stock1 unitReady to ship
1 399,99$
Manufacturer: Nidec Model: 115U3D300BFCAA115240
Type:
Servo Motor
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

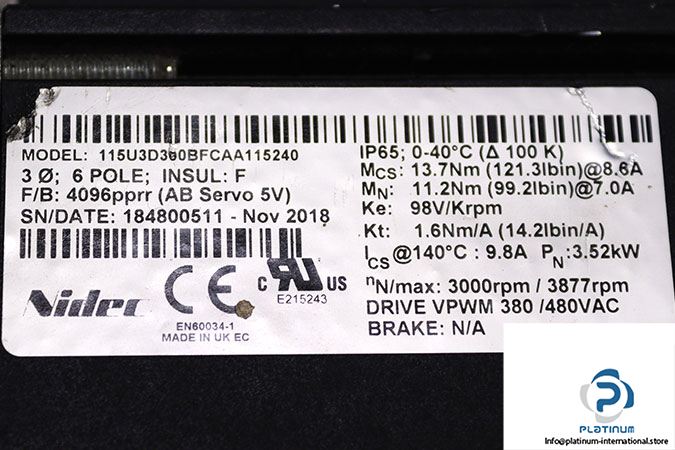

Manufacturer: Nidec
Type: Servo Motor
Model: 115U3D300BFCAA115240
Rated Voltage [V]: 380/480
Rated Power [kW]: 3.52
Rated Torque [Nm]: 11.2
Stall Torque [Nm]: 13.7
Rated Current [A]: 7.0
Stall Current [A]: 8.6
Rated Speed [rpm]: 3000
Max. Speed [rpm]: 3877
Constant Voltage [V/1000min-1]: 98
Constant Torque [Nm/A]: 1.6
Protection Class [IP]: 65
Temperature [C°]: 0-40
Poles: 6
Insulation Class: F
