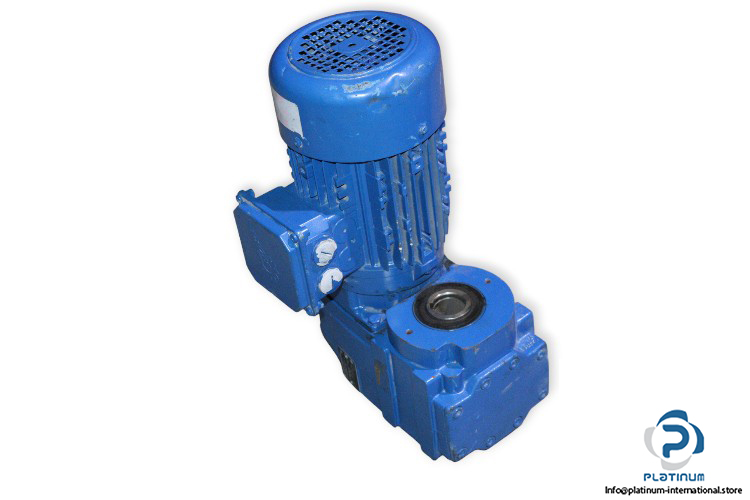

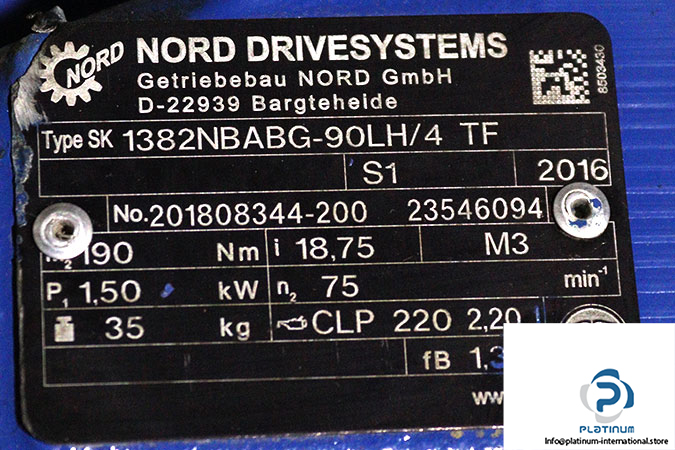

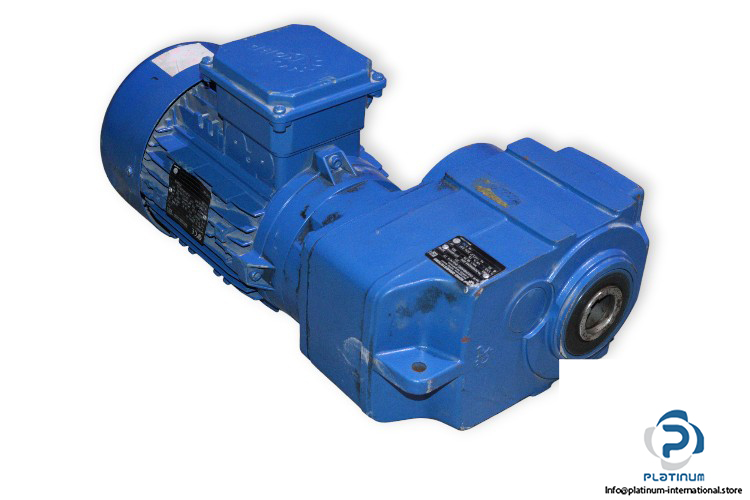

Nord SK 1382NBABG-90LH/4 TF Gear Motor

Manufacturer: Nord
Type: Gear Motors
Model: SK1382NBABG-90LH/4TF

Ratio [i]: 18.75
Output Speed [rpm]: 75
Rated Power [kW]: 1.5
Rated Torque [Nm]: 190
Mounting Position [IM]: M3
Duty: S1
Oil: CLP 220
Quantity [L]: 2.2

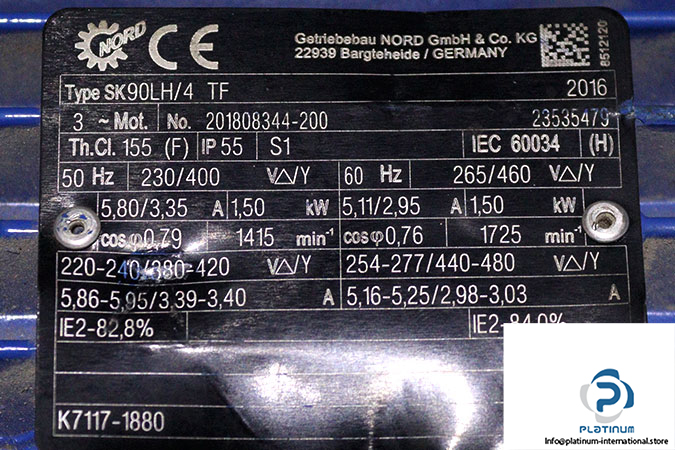

Attachment: Nord SK 90LH/4 TF 3 Phase Electric Motor
Manufacturer: Nord
Type: 3 Phase Electric Motor
Model: SK90LH/4TF
Rated Voltage [V]: 230-400/265-460 Delta-Star
Rated Power [kW]: 1.5
Rated Current [A]: 5.8-3.35/5.11-2.95
Rated Speed [rpm]: 1415-1725
Power Factor: 0.79/0.76
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Duty: S1
Insulation Class: F
