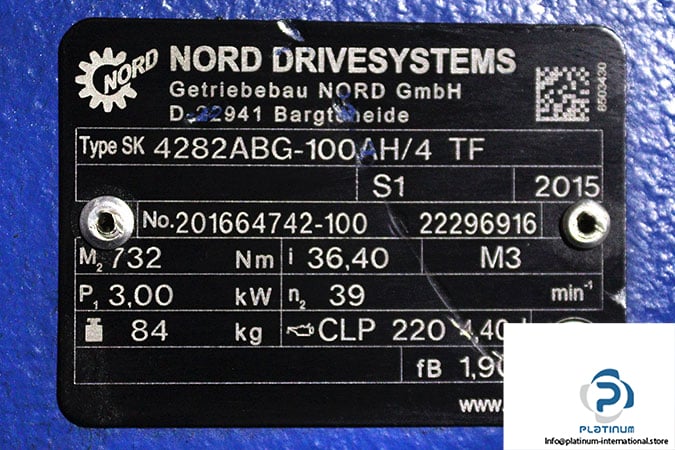

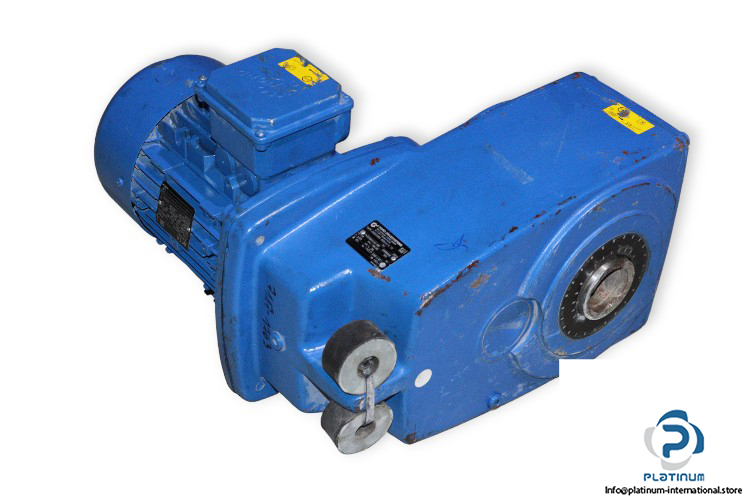

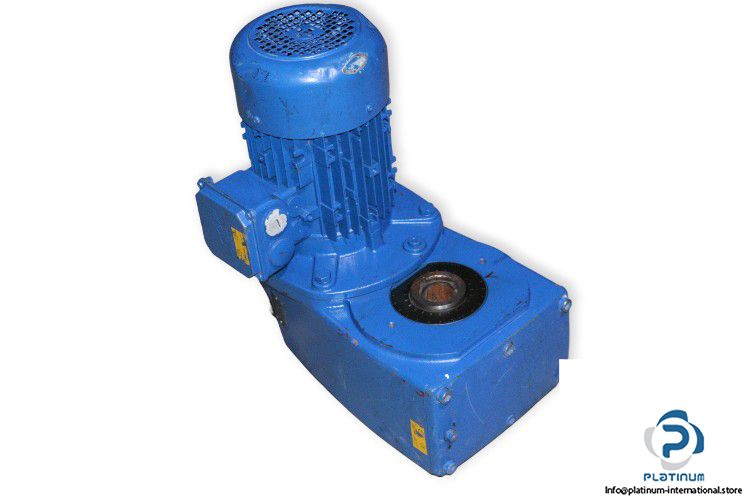

Nord SK 4282ABG-100AH/4 TF Gear Motor
Manufacturer: Nord
Type: Gear Motors
Model: SK4282ABG-100AH/4TF
Ratio [i]: 36.4
Output Speed [rpm]: 39
Rated Power [kW]: 3.0
Rated Torque [Nm]: 732
Mounting Position [IM]: M3
Duty: S1
Oil: CLP 220
Quantity [L]: 4.4

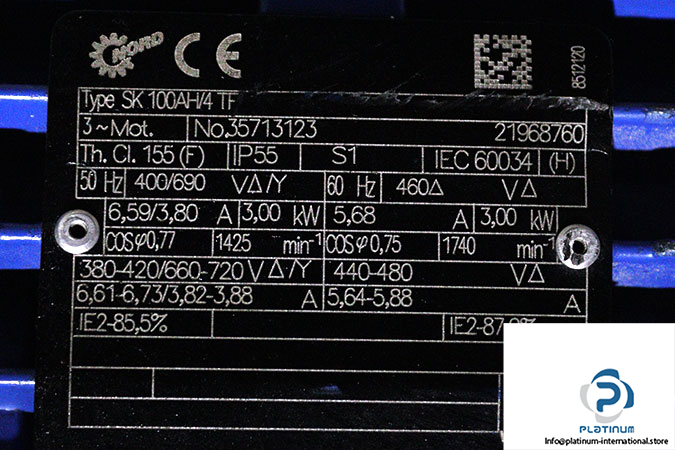

Attachment: Nord SK100AH/4 TF 3 Phase Electric Motor
Manufacturer: Nord
Type: 3 Phase Electric Motor
Model: SK100AH/4TF
Rated Voltage [V]: 400-690/460 Delta/Star
Rated Power [kW]: 3.0
Rated Current [A]: 6.59-3.8/5.68
Rated Speed [rpm]: 1425/1740
Power Factor: 0.77/0.75
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Duty: S1
Insulation Class: F
