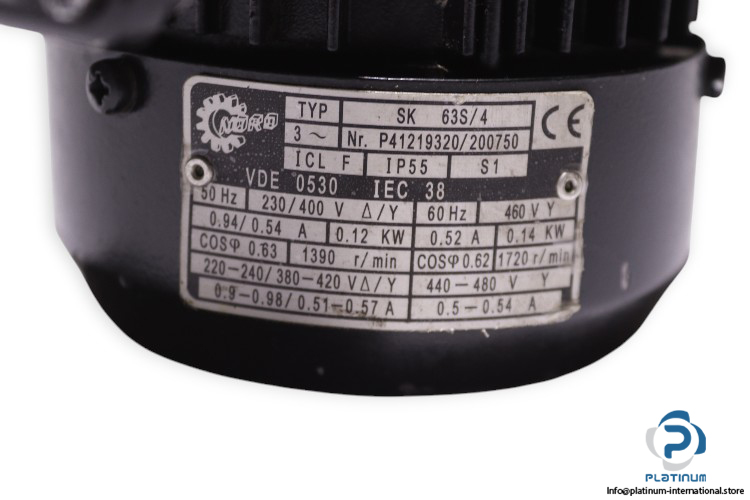

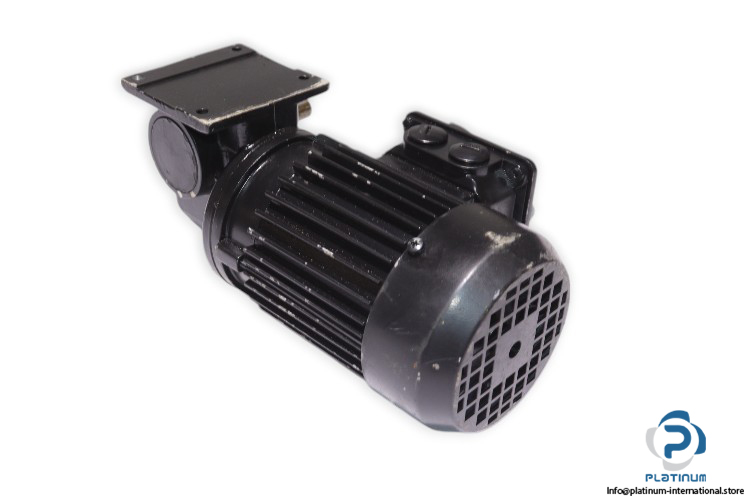

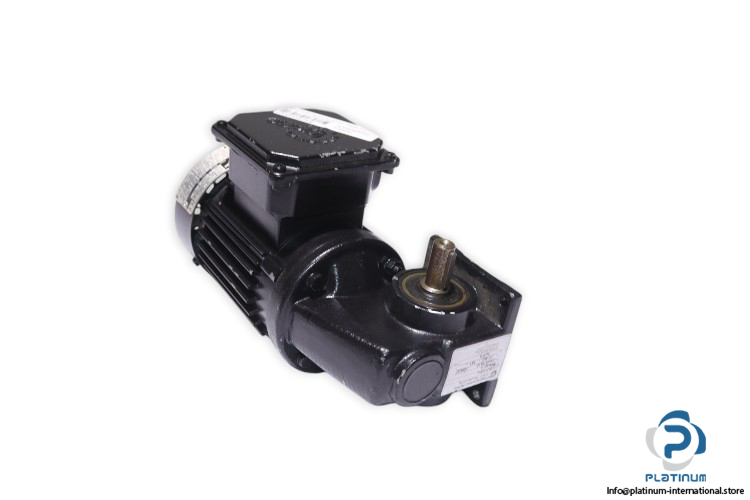

Nord SK 63S/4 Gear Motor

Manufacturer: NORD
Type: Gear Motor
Model: SK 63 S/4
Item no.: P41219320/200750

Motor frame size: 63
At Frequency [Hz]: 50
Rated Power [kW]: 0.12
Rated Voltage [V]: 230/400 Delta/Star
Rated Current [A]: 0.94/0.54
Rated Speed [rpm]: 1390
Power Factor: 0.63
At Frequency [Hz]: 60
Rated Power [kW]: 0.14
Rated Voltage [V]: 460 Star
Rated Current [A]: 0.52
Rated Speed [rpm]: 1720
Power Factor: 0.52
Duty: S1
Insulation class: F
Protection Class: IP55

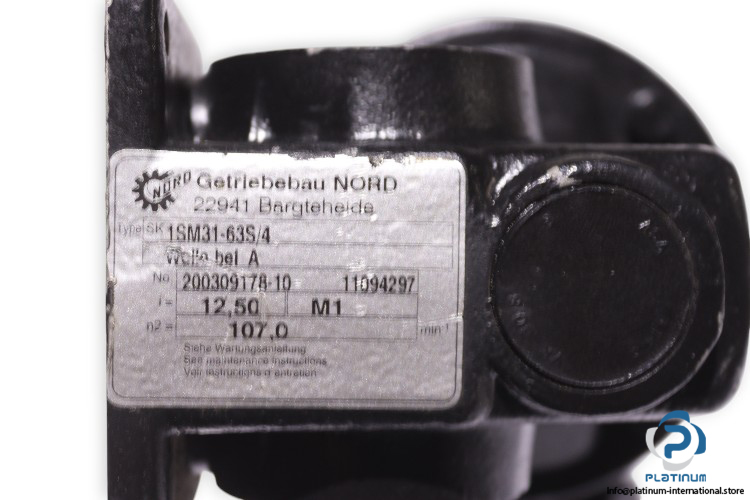

Attachment: NORD SK 1SM31-63S/4 Gear Motor
Manufacturer: Nord
Type:  Gear Motor
Model: SK 1SM31-63S/4

Ratio [i]: 12,5
Mounting Position [IM]: M1
Output Speed [rpm]: 107
