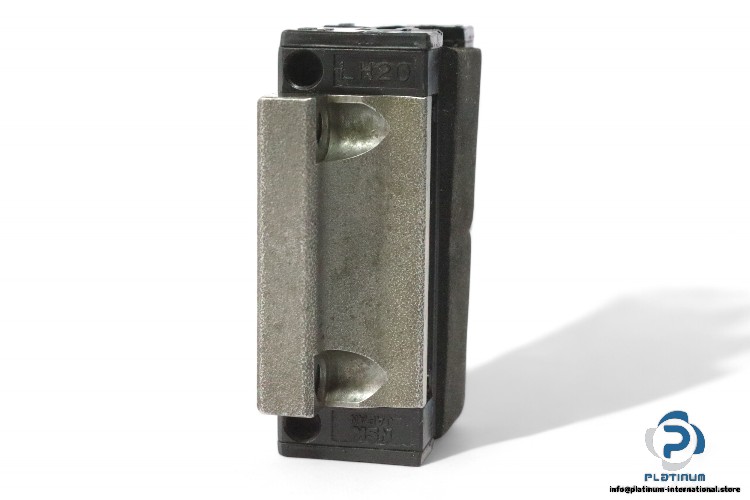

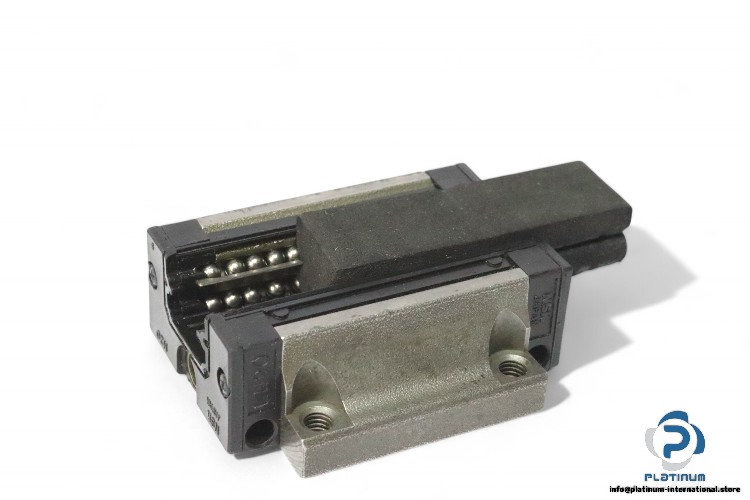

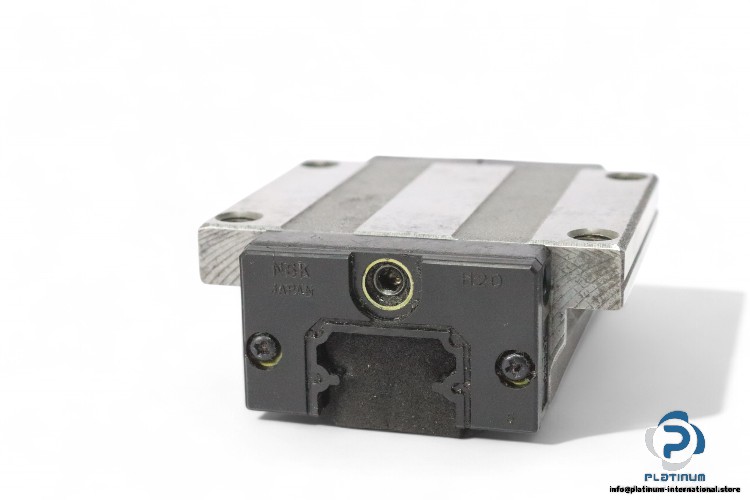

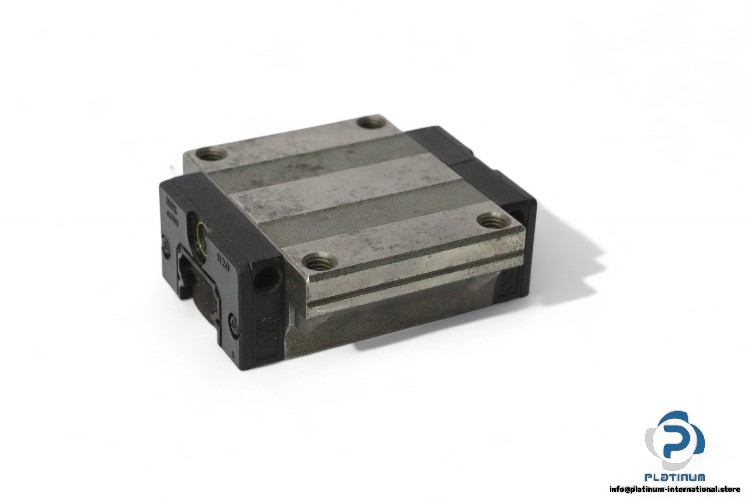

NSK LAH20 EM Linear Guideway Block

Manufacturer: NSK
Type: LINEAR GUIDEWAY BLOCK
Model: LAH20-EM

Size: 20 mm

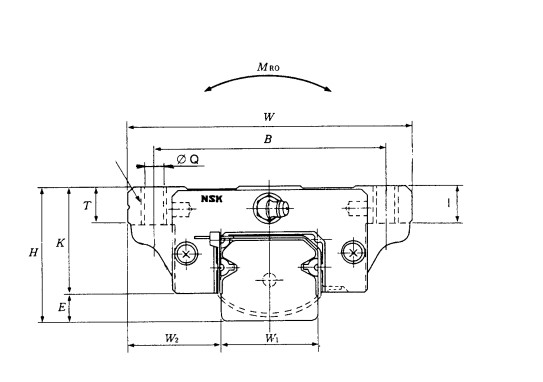

Dimensions
Total Height H: 30 mm
Block Width W: 63 mm
Block Length L: 69.8 mm
Block Height K: 25 mm
E: 5 mm
BXJ: 53X40  mm
Bolt size thru hole: M5
Interchangeable ball slide model code: LAH
Ball slide shape code: EM, low height type, with tapped &thru holes
Block Type: Flanged Standard Type
Load Type: high load
Basic Load Ratings:
Dynamic C: 1450 N
Static C₀: 2560 N
Allowable Static Moment:
X axis M_RO: 22 Nm
Y axis M_YO: 18 Nm
Z axis M_PO: 18 Nm
