NSK LAH25ANZ/DC Linear Bearing Block

Manufacturer: NSK
Type: Linear Guideway Block
Model:  LAH 25 ANZ/DC , LH25ANZ/DC

Size: 25

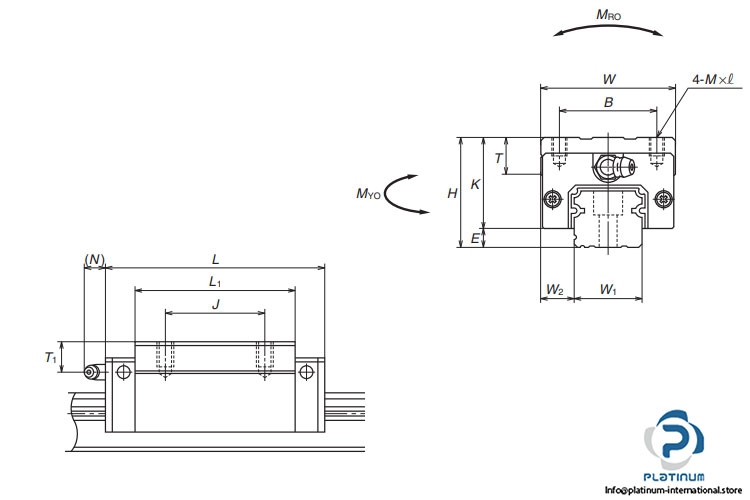

Dimensions
Total Height H: 40 mm
Block Height K: 33 mm
Width W: 48 mm
Block Length L: 79 mm
B: 35 mm
J: 35 mm
L₁: 58 mm
Preload code: Z; Slight preload
Block Type: Square Type
Mounting Hole: 4 Tapped holes
Hole size: M6 x 0.75
Basic Load Ratings:
Dynamic C₅₀:  25600 N
Dynamic C₁₀₀:  20300 N
Static C₀: 46000 N
