NSK LAH30ANZ Linear Bearing Block
Manufacturer: NSK
Type: Linear Guideway Block
Model: LAH 30 ANZ , LH30ANZ
Size: 30

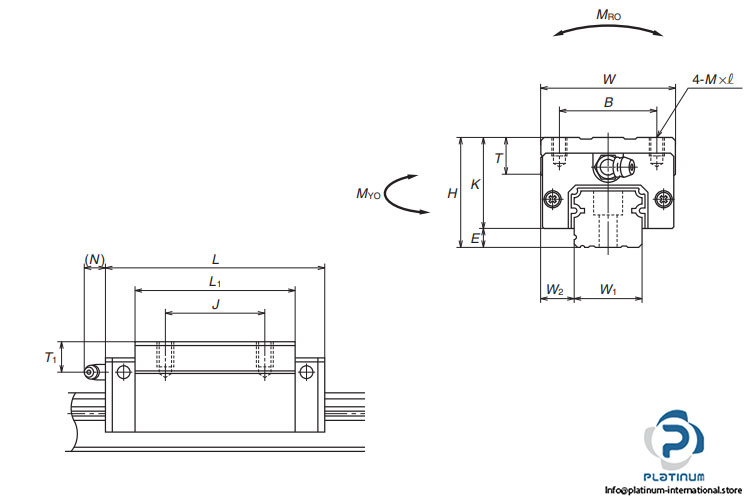

Dimensions
Total Height H: 45 mm
Block Height K: 36 mm
Width W: 60 mm
Block Length L: 85.6 mm
B: 40 mm
J: 40 mm
L1: 59 mm
Preload code: Z; Slight preload
Block Type: Square Type
Mounting Hole: 4 Tapped holes
Hole size: M6 x 0.75
Basic Load Ratings:
Dynamic C50: 31000 N
Dynamic C100: 24600 N
Static C0: 51500 N
