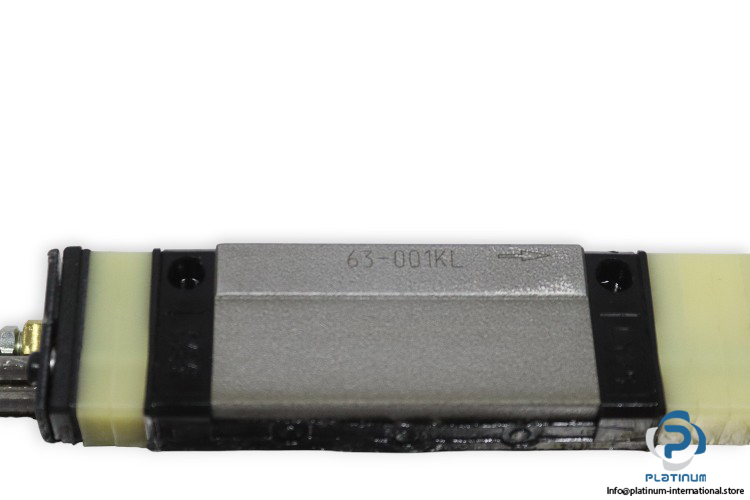

NSK LY250660ALG2G03K64 Linear Guideway Block
New
In stock2 unitsReady to ship
Linear Guideway Block
NSK size 25 linear guideway block with AL ball slide design, high load ratings, and precision dimensions for industrial motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

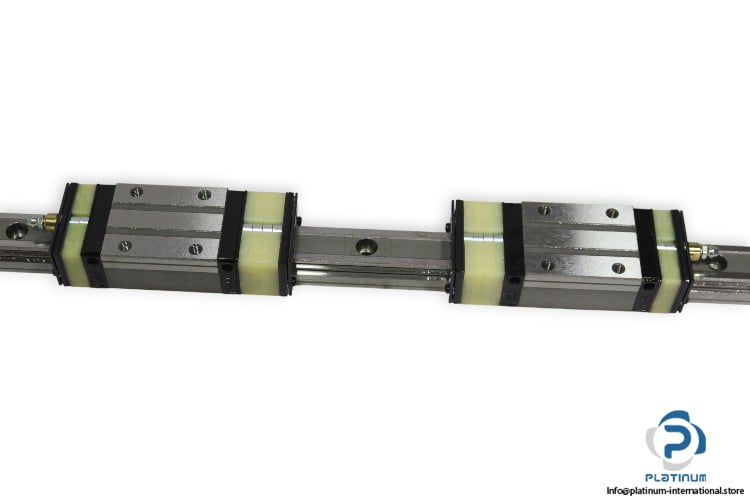

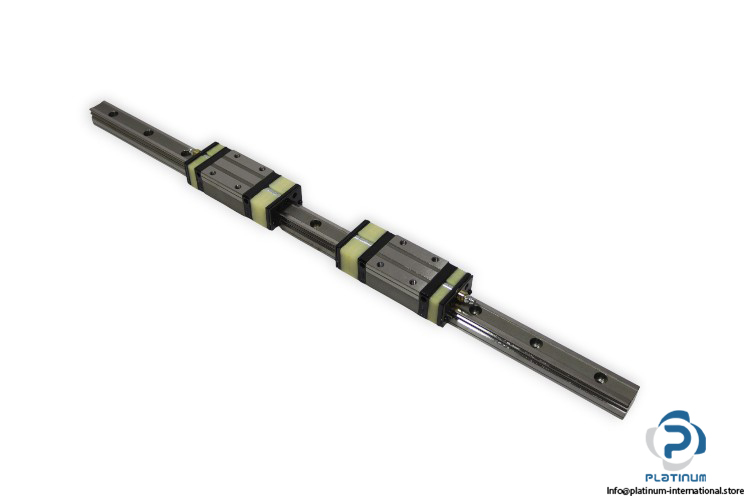

NSK LY250660ALG2G03K64 Linear Guideway Block
The NSK LY250660ALG2G03K64 linear guideway block is a precision-engineered rolling guide component designed to provide smooth linear motion, high load capacity, and long service life in industrial and automation applications.
Manufacturer: NSK
Type: Linear Guideway Block

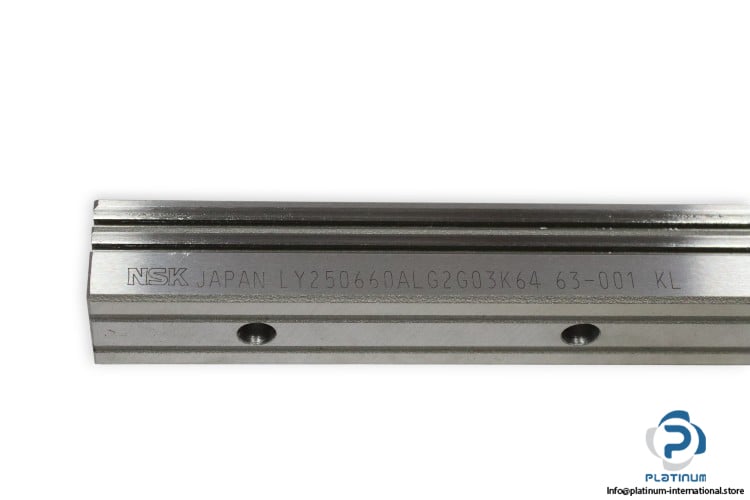

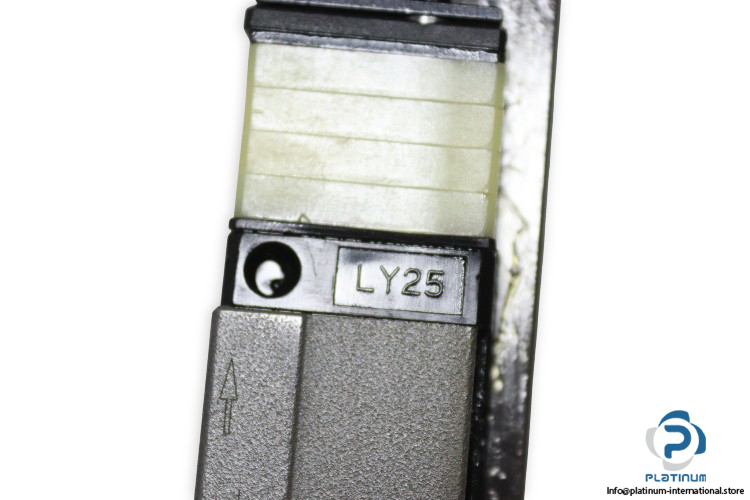

Model: LY250660ALG2G03K64 (LY25AL)

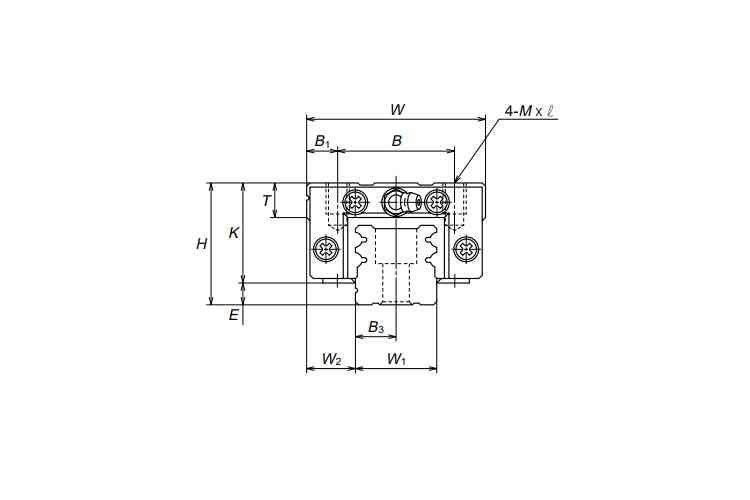

| Size | 25 |
| Height for System (H) | 36 mm |
| Block Height (K) | 30.5 mm |
| Width for Bearing (W) | 48 mm |
| Block Length (L) | 80.8 mm |
| Mounting Hole | 4 Tapped Holes |
| Distance Between Bolts | 35 mm |
| B | 35 mm |
| J | 35 mm |

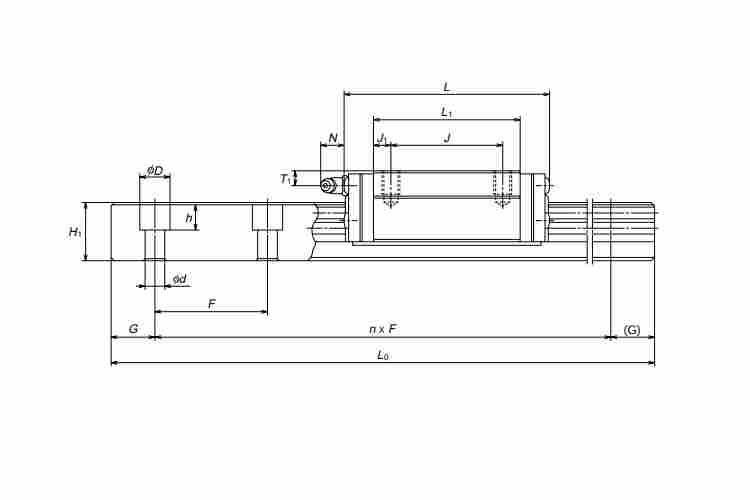

| L1 | 58 mm |
| G | 20 mm |
| Rail Width (W1) | 23 mm |
| Rail Height (H1) | 22.5 mm |
| Rail Length | 660 mm |
| Pitch (F) | 60 mm |
| Ball Slide Shape | AL |
| Dynamic Load Rating (C) | 17,100 N |
| Static Load Rating (C0) | 26,000 N |
| Number of Ball Slides per Rail | 2 |
| Material / Surface Treatment | G |
