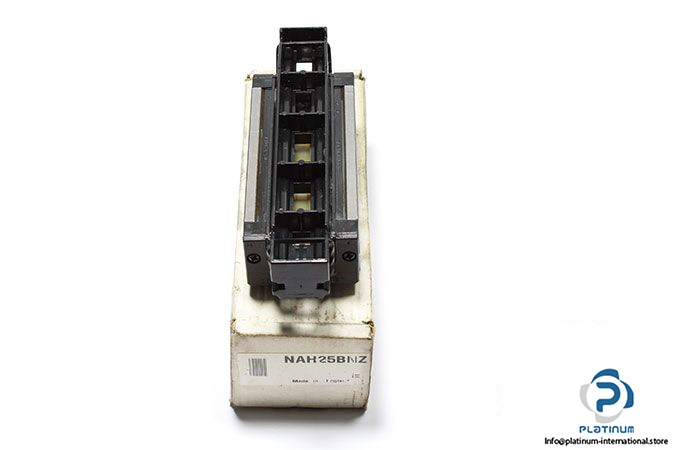

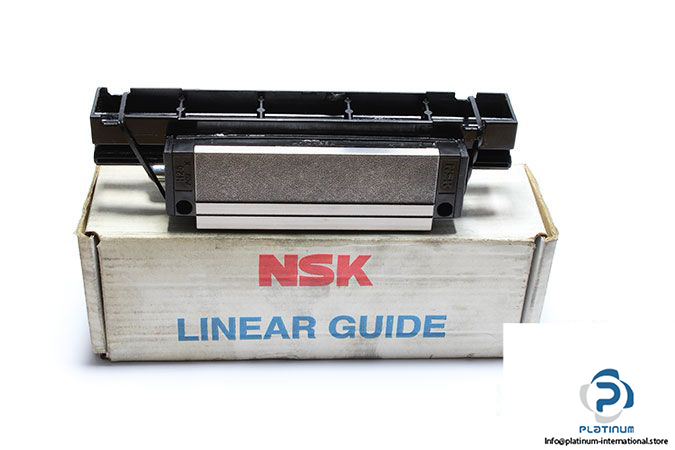

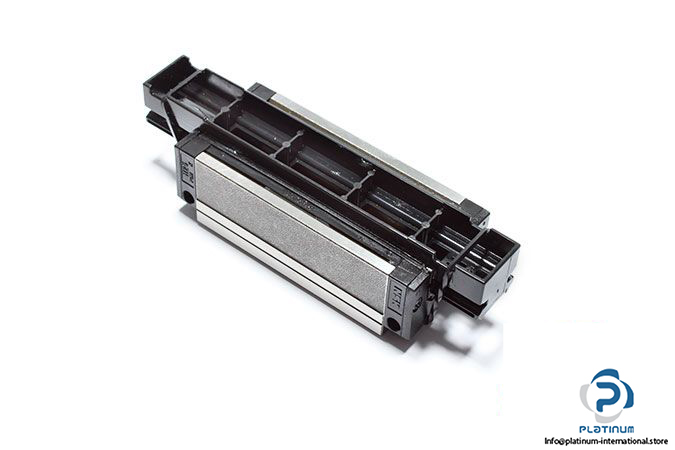

NSK NAH25BNZ Linear Guideway Block

Manufacturer: NSK

Type: Linear Guideway Block NAH

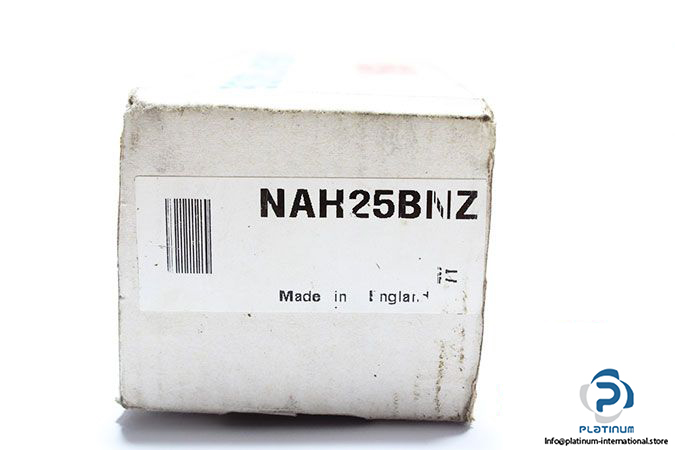

Model: NAH25 BNZ

Size: 25 mm

Block Type: Square Type

Load Type: Very High

Basic Load Ratings:

Dynamic C: 45500 N

Static C₀: 71000 N

Allowable Static Moment:

X axis M_RO: 555 Nm

Y axis M_YO: 610 Nm

Z axis M_PO: 725 Nm

Preload Class: Z -Light

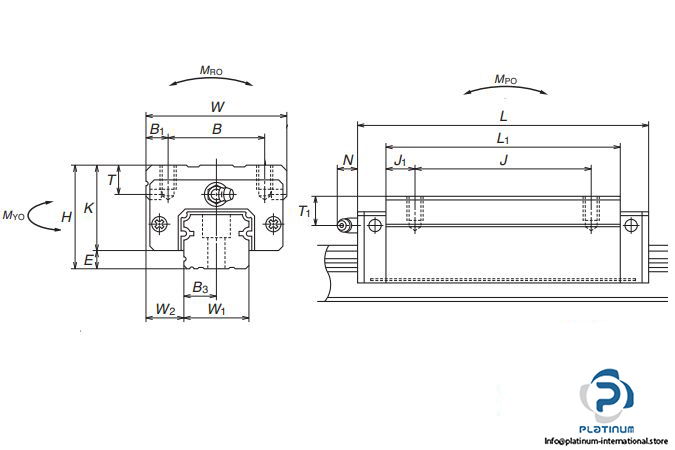

Dimensions

Total Height H: 40 mm

Block Width W: 48 mm

Block Length L: 107 mm

B: 35 mm

J: 50 mm
