NSK NAH30ANZ-L Linear Guideway Block

Manufacturer: NSK
Type: LINEAR GUIDEWAY BLOCK
Model: NAH30ANZ L

Size: 30 mm

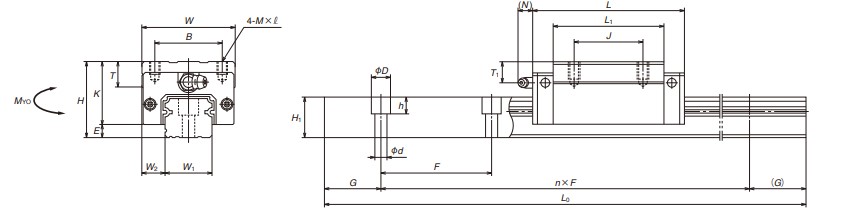

Dimensions
Total Height H: 45 mm
Block Width W: 60 mm
Block Length L: 85.6 mm
Block Height K: 36 mm
E: 9 mm
B: 35 mm
Interchangeable ball slide model code: NAH
Ball slide shape code: AN
Preload: Z, Slight preload
Option code: L, Equipped with NSK K1-L
Block Type: Square Standard Type
Load Type: High Load
Basic Load Ratings:
Dynamic C: 41000 N
Static C₀: 51500 N
Allowable Static Moment:
X axis M_RO: 490 Nm
Y axis M_YO: 350 Nm
Z axis M_PO: 292 Nm
