NSK W3205M-13P-C3Z-9S3-004 Ball Screw
New
In stock1 unitReady to ship
NSK Flange Nut Ball Screw features a nominal diameter of 32 mm, 5 mm lead, and 555 mm threaded length, providing precision linear motion for mechanical systems.
Manufacturer:
NSK
Type:
Flange Nut Ball Screw
Model:
W3205M-13P-C3Z-9S3-004
The
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

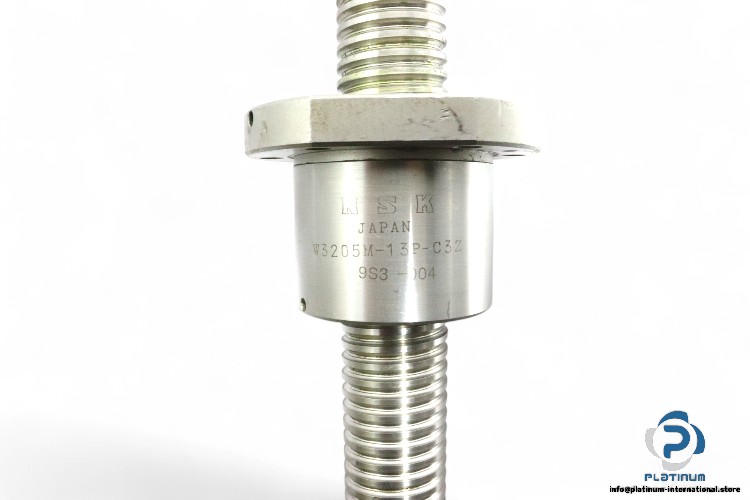

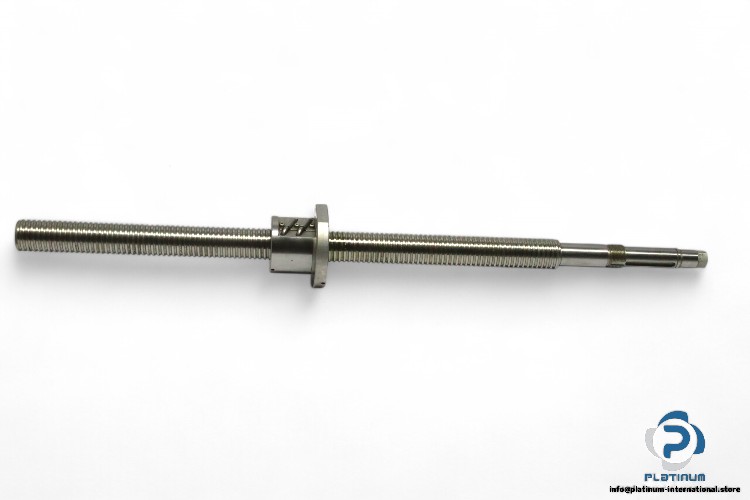

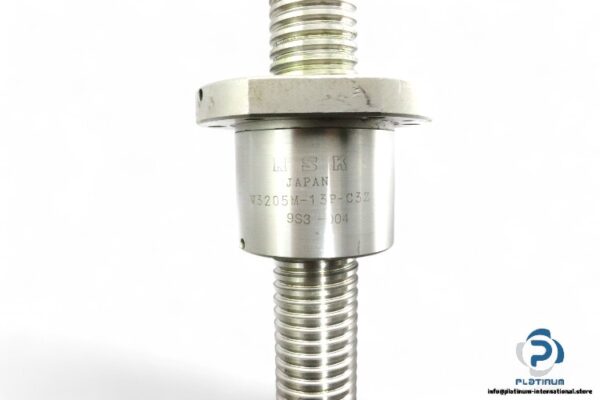

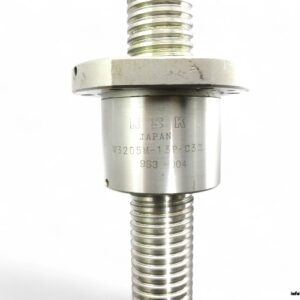

Flange Nut Ball Screw (Model: W3205M-13P-C3Z-9S3-004)
Manufacturer: NSK
Type: Flange Nut Ball Screw
Model: W3205M-13P-C3Z-9S3-004
The NSK Flange Nut Ball Screw (Model: W3205M-13P-C3Z-9S3-004) is a precision ball screw designed to provide smooth and precise movement in mechanical systems. It is ideal for applications requiring accurate linear motion and reliability in operations.
- Manufacturer: NSK
- Type: Flange Nut Ball Screw
- Model: W3205M-13P-C3Z-9S3-004
- Size: 32 x 5 R
- Nominal Diameter (dN): 32 mm
- Lead (P): 5 mm
- Number of Threads Starts: 1
- Direction of Lead: Right-Hand Thread
- Threaded Length: 555 mm
- Total Screw Length: 710 mm
- Accuracy Grade: C3
- Clearance/Preload Code: Z, Preloaded (Zero Clearance)
- Design Sequence Number: 13
- Ball Screw Specifications / Appearance: P, Single Nut, Oversize Ball Preload
