NSK W4005M-20P-C3Z-8S3-002 Ball Screw

In stock1 unitReady to ship

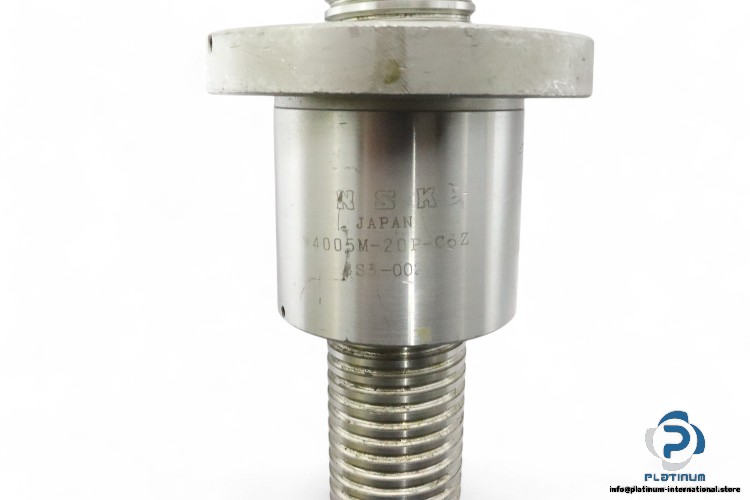

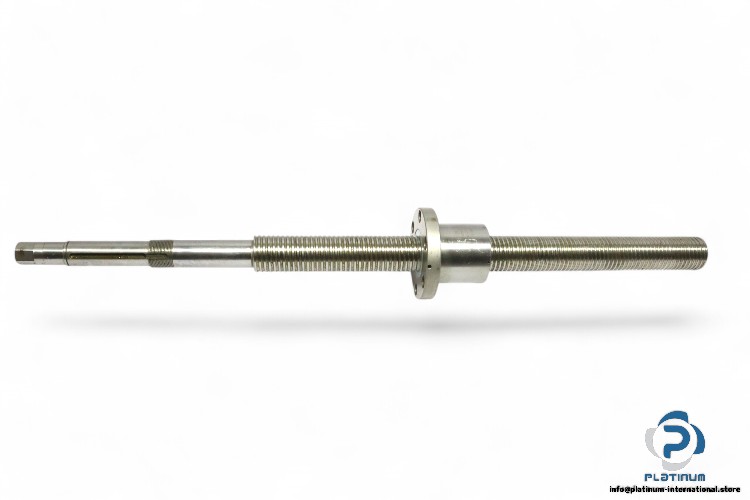

NSK Flange Nut Ball Screw (Model: W4005M-20P-C3Z-8S3-002) is designed for high precision with preloaded (zero clearance) assembly, 40 mm nominal diameter, and 5 mm lead.

Manufacturer:
NSK
Type:
Flange Nut Ball Screw
Model:
W4005M-20P-C3Z-8S3-002 The
Manufacturer
NSK
SKU
1057888
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Flange Nut Ball Screw (Model: W4005M-20P-C3Z-8S3-002)

Manufacturer: NSK

Type: Flange Nut Ball Screw

Model: W4005M-20P-C3Z-8S3-002

The NSK Flange Nut Ball Screw (Model: W4005M-20P-C3Z-8S3-002) is designed for high precision motion control. This ball screw offers excellent performance with preloaded (zero clearance) assembly and optimal threading characteristics for smooth linear motion. It is perfect for applications requiring minimal backlash and high reliability.

  • Manufacturer: NSK
  • Type: Flange Nut Ball Screw
  • Model: W4005M-20P-C3Z-8S3-002
  • Size: 40 x 5 R
  • Nominal Diameter (dN): 40 mm
  • Lead (P): 5 mm
  • Number of Starts: 1
  • Direction of Lead: Right-Hand Thread
  • Threaded Length: 530 mm
  • Total Screw Length: 780 mm
  • Accuracy Grade: C3
  • Clearance / Preload Code: Z, Preloaded (Zero Clearance)
  • Design Sequence Number: 20
  • Ball Screw Specifications / Appearance: P, Single Nut, Oversize Ball Preload
NSK 51117 Thrust Ball Bearing
New

NSK

NSK 51117 Thrust Ball Bearing

SKU: 1101214

Qty: 1

Available through quotation
NSK 3205 Btng Double-ROW Angular Contact Ball ?Bearing
New

NSK

NSK 3205 Btng Double-ROW Angular Contact Ball ?Bearing

SKU: 1098451

Qty: 1

Available through quotation
NSK 7004C SULP5 High Precision Angular Contact Ball Bearing
New

NSK

NSK 7004C SULP5 High Precision Angular Contact Ball Bearing

SKU: 1101179

Qty: 5

Available through quotation
NSK 6908VV Deep Groove Ball Bearing
Used

NSK

NSK 6908VV Deep Groove Ball Bearing

SKU: 1098533

Qty: 1

Available through quotation
NSK 7002CTYNSULP5 High Precision Angular Contact Ball Bearing
New

NSK

NSK 7002CTYNSULP5 High Precision Angular Contact Ball Bearing

SKU: 1101153

Qty: 5

Available through quotation

Related Products

Hiwin S180949-3 Ball Screw
New

HIWIN

Hiwin S180949-3 Ball Screw

SKU: 1007938

Qty: 17

Available through quotation
Steinmeyer 32-10 Ball Screw
Used

STEINMEYER

Steinmeyer 32-10 Ball Screw

SKU: 1008076

Qty: 5

499,99$
Steinmeyer 32-15 Ball Screw
Used

STEINMEYER

Steinmeyer 32-15 Ball Screw

SKU: 1008077

Qty: 2

Available through quotation
Scaravella 25050202 Ball Screw
New

Scaravella 25050202 Ball Screw

SKU: 1000803

Qty: 6

Available through quotation
Steinmeyer 2695605 Ball Screw
New

STEINMEYER

Steinmeyer 2695605 Ball Screw

SKU: 1008380

Qty: 3

Available through quotation
Platinum International
Surplus, New & Used - Always Reliable
NSK SKU: 1057888
NSK W4005M-20P-C3Z-8S3-002 Ball Screw
NSK W4005M-20P-C3Z-8S3-002 Ball Screw
PriceOn Request
Stock1 In stock
ManufacturerNSK
CategoryScrew & Ball Screws
ConditionNew
SKU1057888

Manufacturer: NSK

Type: Flange Nut Ball Screw

Model: W4005M-20P-C3Z-8S3-002

The NSK Flange Nut Ball Screw (Model: W4005M-20P-C3Z-8S3-002) is designed for high precision with preloaded (zero clearance) assembly, 40 mm nominal diameter, and 5 mm lead.

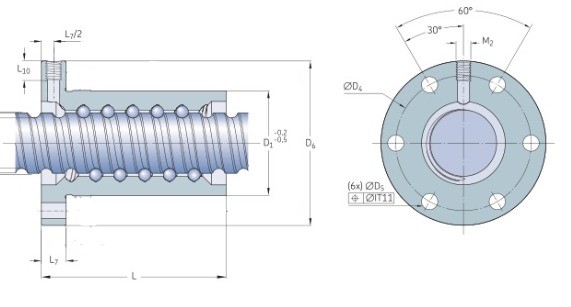

Technical Specifications
