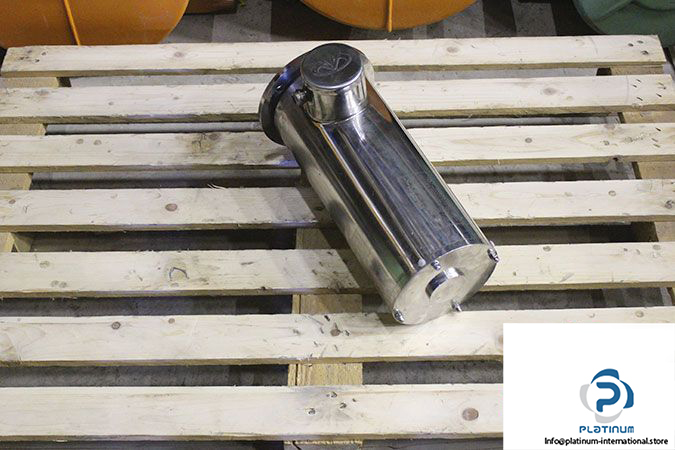

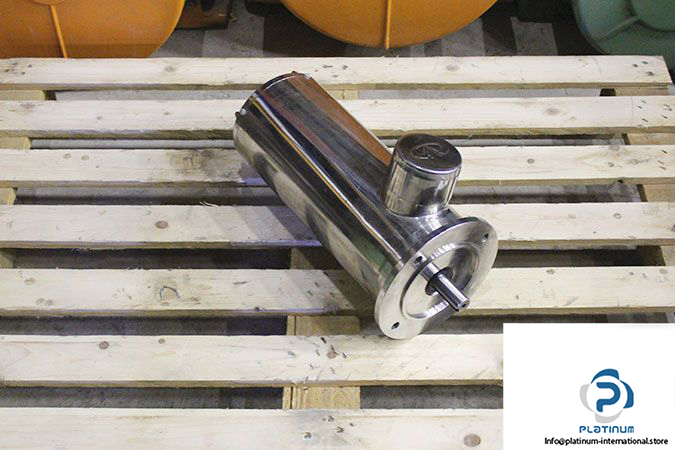

NSST90B54P2.2KW Stainless Steel Electric Motor
Type: Stainless Steel Electric Motors
Model: NSST90B54P2.2KW
Frame: 90B5
Rated Voltage [V]: 200-230/360-415 Delta/Star
Rated Current [A]: 9.0/5.5
Rated Power [kW]: 2.2
Rated Speed [rpm]: 1450
Frequency [Hz]: 50
Power Factor [cos]: 0.72
Efficiency [%]: 85.5
Max. Temperature [°C]: 40
Protection Class [IP]: 66
Duty: S1 Cont.
Insulation Class: F
Weight [kg]: 41.2
