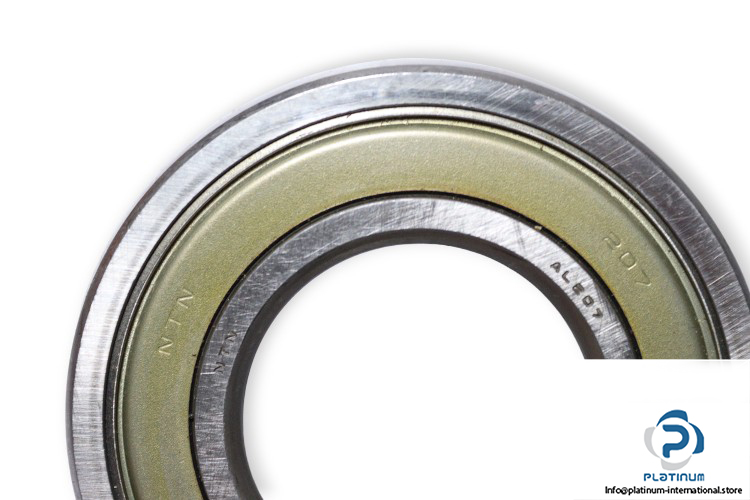

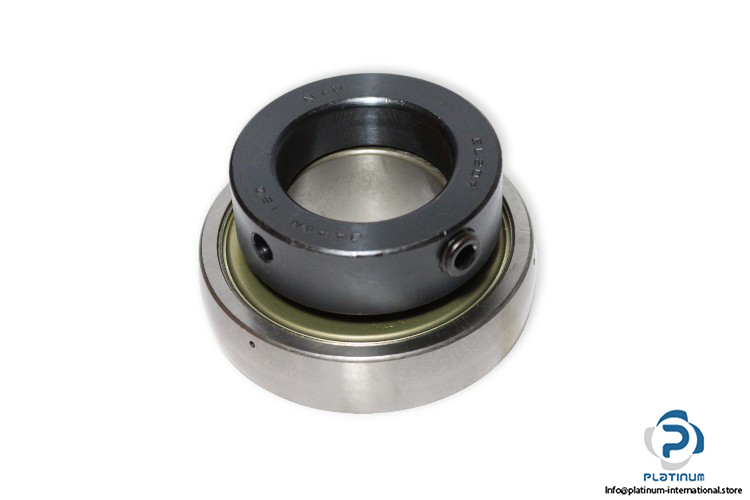

NTN AL207+EL Insert Ball Bearing

Name: NTN AL207+EL INSERT BALL BEARING
SKU: 1030387
Availability: LimitedAvailability

ntn-AL207_EL-insert-ball-bearing-(new)-(carton)

ntn-AL207_EL-insert-ball-bearing-(new)-(carton)-1

ntn-AL207_EL-insert-ball-bearing-(new)-(carton)-2

New

In stock6 unitsReady to ship

Model: AL 207+EL

Manufacturer:

NTN

Type:

Insert Ball Bearing

Manufacturer

NTN?

SKU

1030387

Category

Insert Bearing

Condition

New

35 Ball bearing bearings insert mm NTN

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NTN
Type: Insert Ball Bearing
Model: AL 207+EL

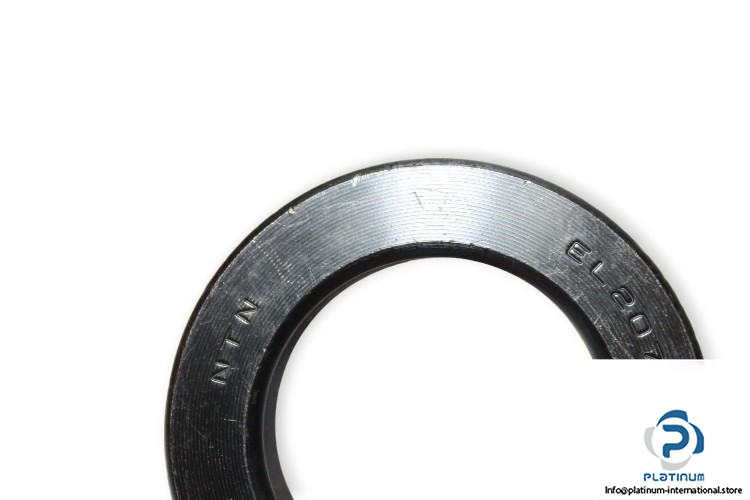

Collar Number: EL207
Basic Outer Ring: 207
Dimensions
shaft diameter d: 35 mm
Outer diameter D: 72 mm
Width of inner ring B: 25.4 mm
Width of outer ring C: 17 mm
Basic load ratings:
Dynamic C: 25700 N
Static C₀: 15300 N
Limiting Speed – Grease: 4200 rpm
Bore Type: Round
Seal Type: Contact
Enclosure: Double Sealed
Locking device: Eccentric Locking Collar
Material: Through Hardened Steel
