NTN Aspfl 203 Pressed-Steel Oval Flange Unit
New
In stock3 unitsReady to ship
Flange Bearing Unit
NTN ASPFL 203 two-bolt pressed-steel oval flange bearing unit with 17 mm bore, set screw locking, and high load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

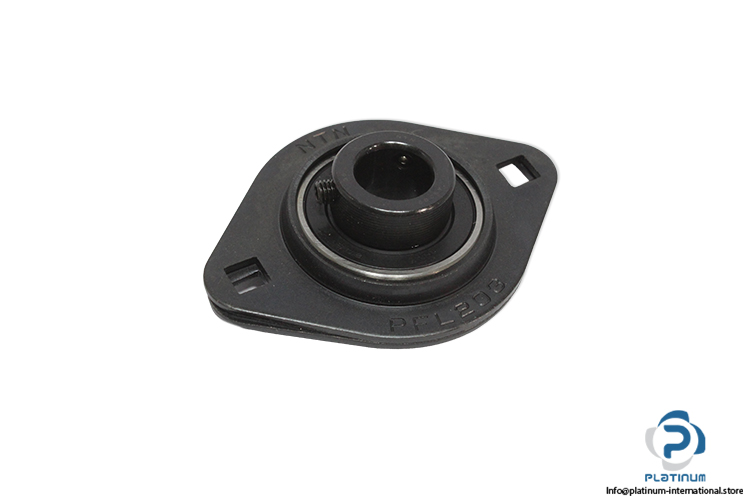

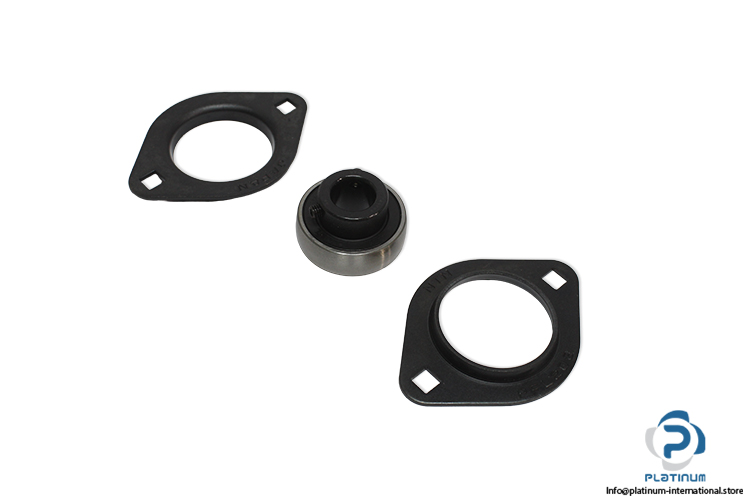

NTN ASPFL 203 Flange Bearing Unit
The NTN ASPFL 203 is a two-bolt pressed-steel oval flange bearing unit designed to provide stable shaft support, reliable load handling, and smooth rotation in industrial applications.

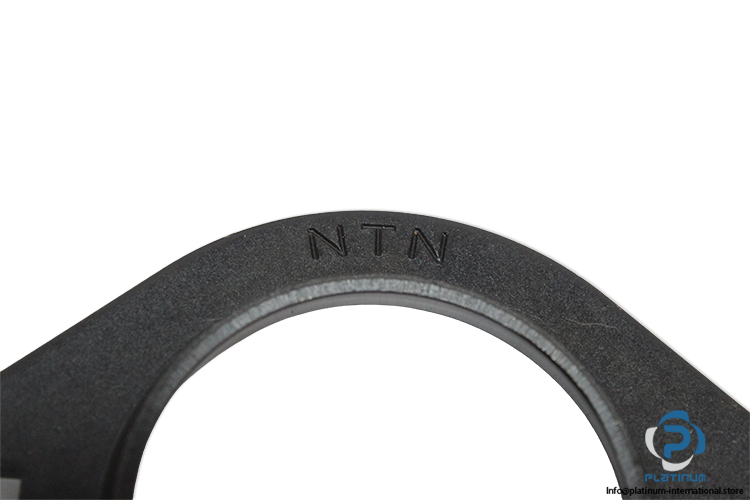

Manufacturer: NTN
Type: Two Bolt Pressed-Steel Oval Flange Unit
Model: ASPFL 203

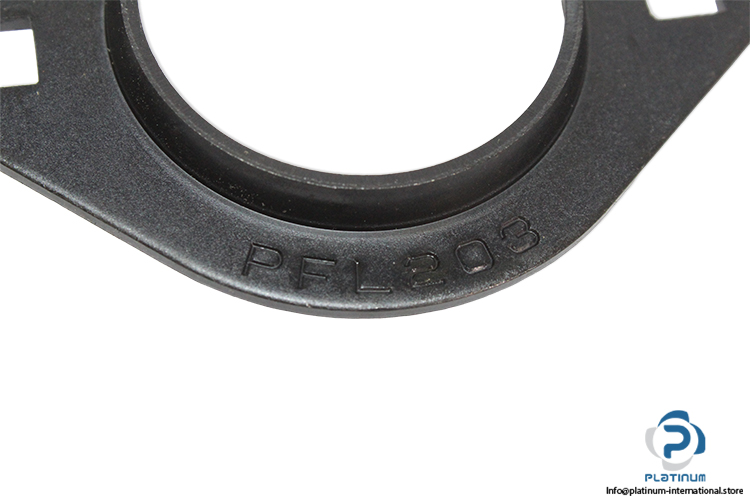

Housing Model: PFL203

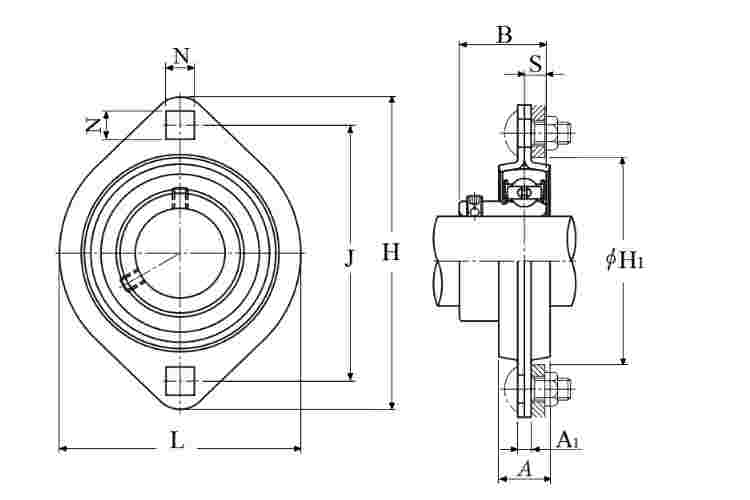

| Bore Diameter | 17 mm |
| H | 81 mm |
| A | 14 mm |
| B | 22 mm |
| Outside Ring Width | 22 mm |
| Inside Ring Width | 31 mm |
| Static Load Rating | 4600 N |
| Dynamic Load Rating | 9600 N |
| Rotational Speed | 8000 RPM |
| Bore Type | Cylindrical |
| Mounting Type | Two-Bolt Flange |
| Locking Device | Set Screw |
| Cage Material | Pressed Steel |
