NTN HK0509T2 Drawn CUP Needle Roller Bearing

Manufacturer: NTN

Type: Drawn Cup Needle Roller Bearing

Model: HK 0509-T2

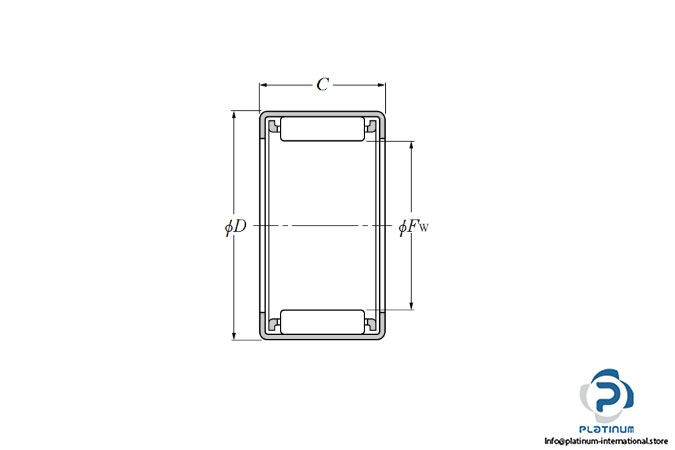

Dimensions:

Diameter under rollers F_w: 5 mm

Outer diameter D: 9 mm

Width outer ring C: 9mm

Cage Type: T2, Polyamid resin molded cage

Dynamic Load Rating: 2640 N

Static Load Rating: 2190 N

Limiting Speed – Oil: 40000 RPM

Limiting Speed – Grease: 27000 RPM

Operating Temperature Range: -40 … +120 °C
