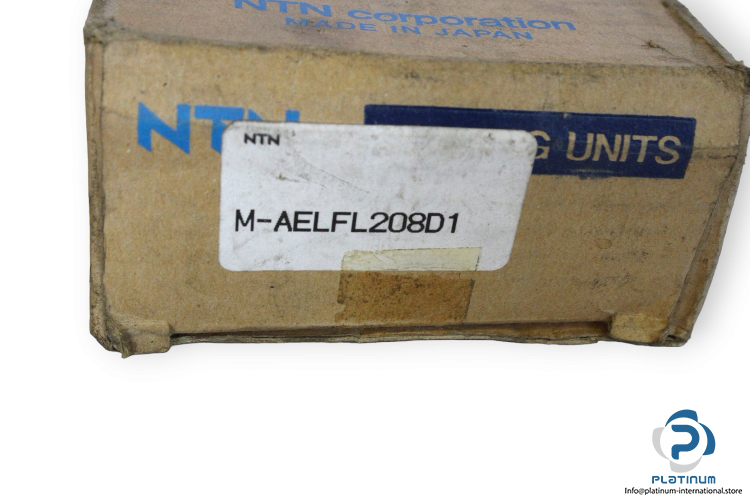

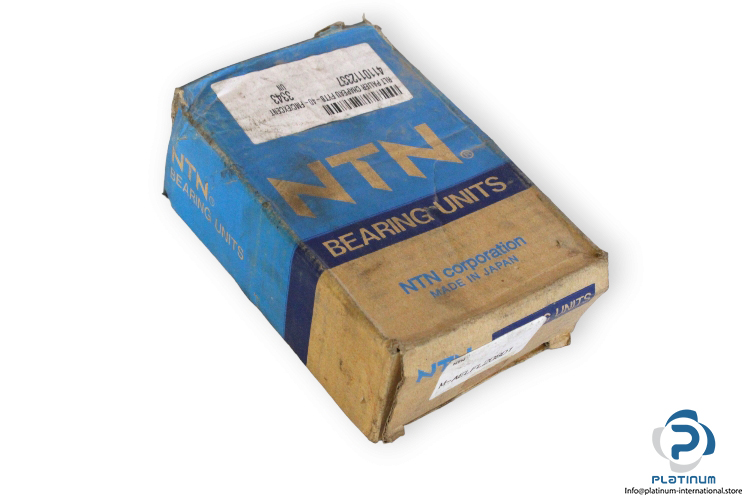

NTN M-AELFL208D1 Oval Flanged Housing Unit

Manufacturer: NTN
Type: Oval flange ball bearing unit
Model: M-AELFL 208D1
Bearing Number: AEL208D1
Housing Number: FL208D1

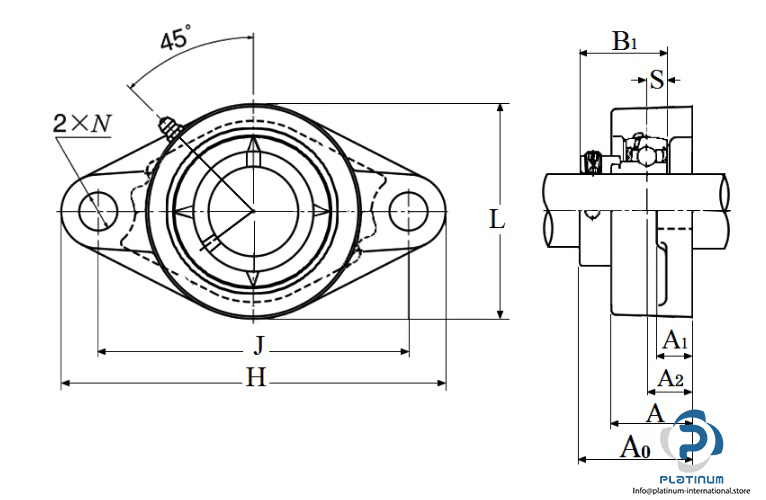

Dimensions
Bore Diameter d: 40 mm
Overall Length L: 80 mm
Overall Height H: 175 mm
Width of inner ring B1: 43.7 mm
Distance Between Attachment Bolts J: 144 mm
Overall unit width A₀: 53.6 mm
Dynamic Load Rating: 29100 N
Static Load Rating: 17800 N
Maximum Rotational Speed: 3700 rpm
Mounting: Oval Flange
Housing Material: Cast Iron
Locking Device: Eccentric Locking Collar
