NTN M-UCP 208D1 Pillow Block Ball Bearing Unit
New
In stock2 unitsReady to ship
Pillow Block Bearing
NTN M-UCP208D1 pillow block ball bearing unit with 40 mm bore, UC208 bearing insert, set screw locking, and cast iron housing for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NTN M-UCP208D1 Pillow Block Ball Bearing Unit
The NTN M-UCP208D1 is a robust pillow block ball bearing unit designed to support rotating shafts while providing reliable alignment and load handling in industrial applications.
Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: M-UCP208D1
Bearing Number: UC208
Housing Number: P208J

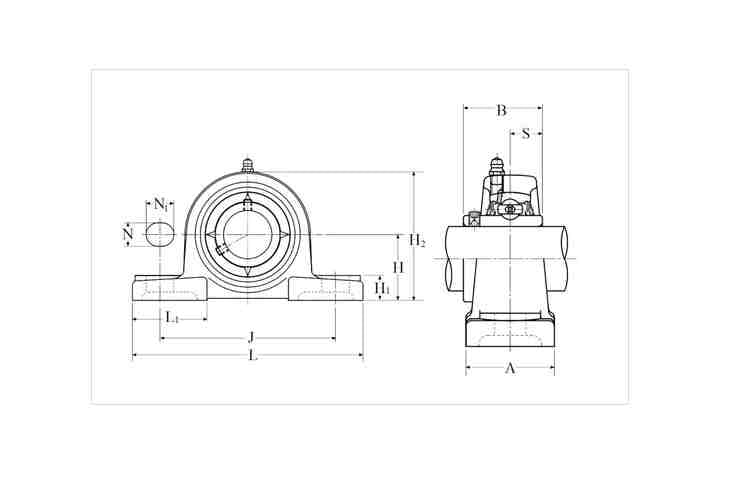

| Bore Diameter (d) | 40 mm |
| Overall Length (L) | 148 mm |
| Overall Height (H2) | 98 mm |
| Base Width (A) | 54 mm |
| Bearing Center Height (h) | 49.2 mm |
| Distance Between Attachment Bolts (J) | 137 mm |
| Length Of Attachment Bolt Hole (N1) | 20 mm |
| Width Of Inner Ring (B) | 49.2 mm |
| Foot Height (H1) | 18 mm |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
