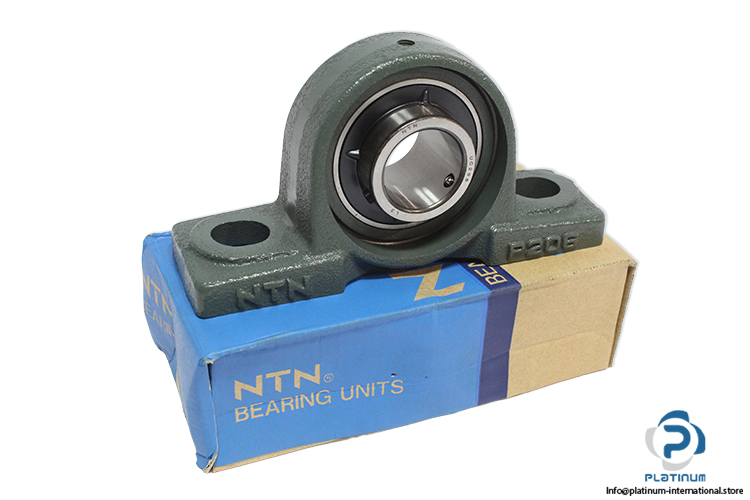

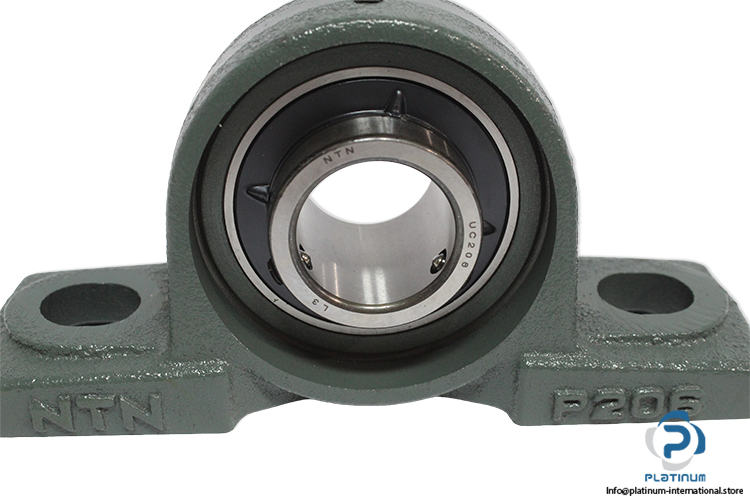

NTN S-UCP206D1-S Pillow Block Ball Bearing Unit

In stock30 unitsReady to ship

Pillow Block Bearing Unit

NTN S-UCP206D1-S pillow block bearing unit with cast iron housing and set screw locking, designed for stable shaft support and smooth operation in industrial applications.

Manufacturer
NTN?
SKU
1090798
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Bearing No.UC206
Housing No.P206
Housing Width48 mm
Width Over Pressed Steel Covers (A4)62 mm
Insert IR Width (B)38.1 mm
Bore Dia. (Shaft Diameter)30 mm
Bearing Center Height (h)42.9 mm
Housing Foot Height (H1)17 mm
Housing Height (H2)83 mm
Distance Of Attachment Bolt Holes (J)121 mm
Housing Length (L)165 mm
Housing Foot Length (L1)54 mm
Mounting Hole (Width) (u)17 mm
Mounting Hole Length (N1)20 mm
Distance IR Face - Middle Of Bearing Raceway (S)15.9 mm
Distance Between Insert And Press Steel Dust Cover (t1)7 mm
MaterialCast Iron
Locking DeviceSet Screw
RecommendationIdeal choice for reliable shaft support with easy installation and long-lasting performance in demanding industrial environments.
ConditionNew
Stock KeyJO-004
