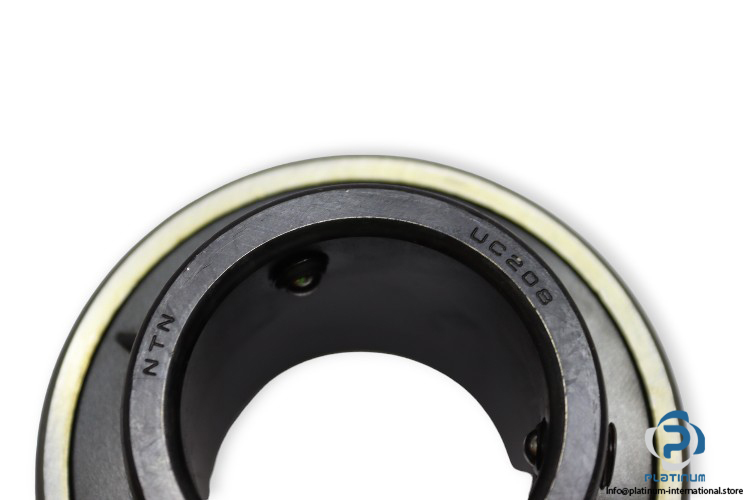

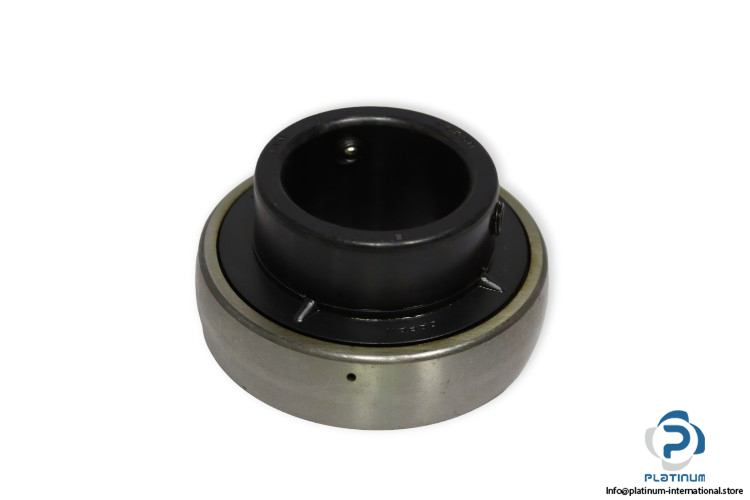

NTN UC208 Insert Ball Bearing
Manufacturer: NTN
Type: Insert Ball Bearing
Model: UC 208

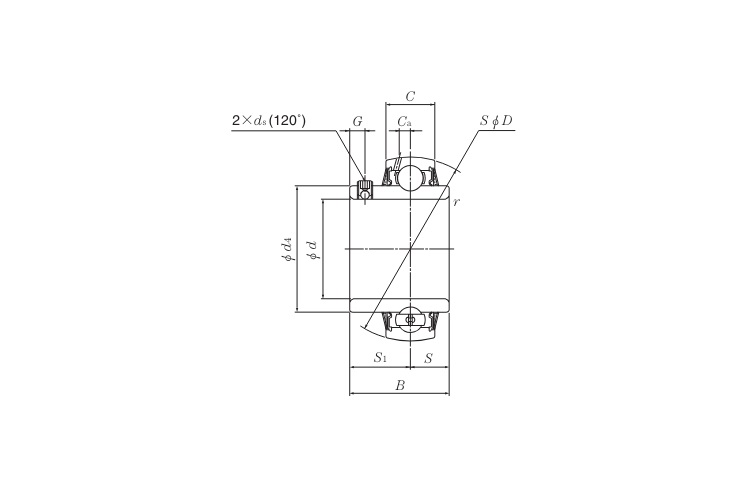

Dimensions
shaft diameter d: 40 mm
Outer diameter D: 80 mm
Width B: 49.2 mm
Width, outer ring C: 21 mm
ds: M8X1
Basic load ratings:
Dynamic C: 29100 N
Static C0: 17800 N
Locking device: Set screw type
