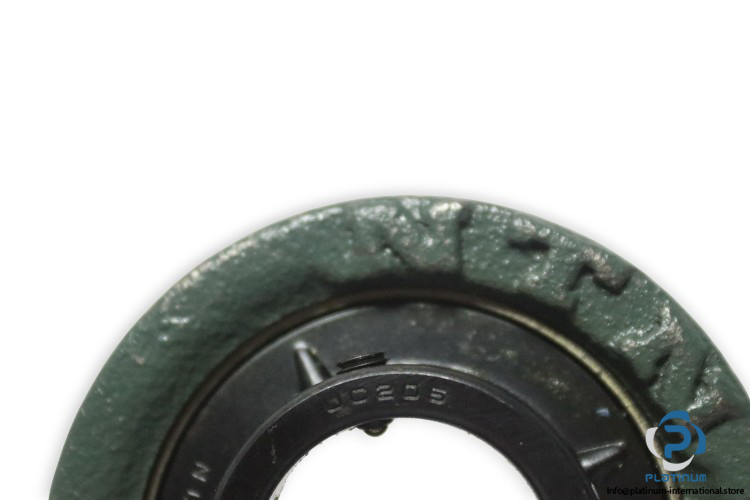

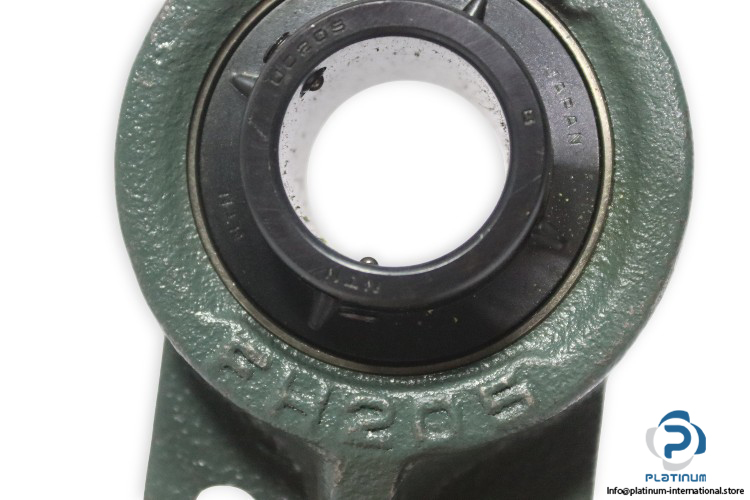

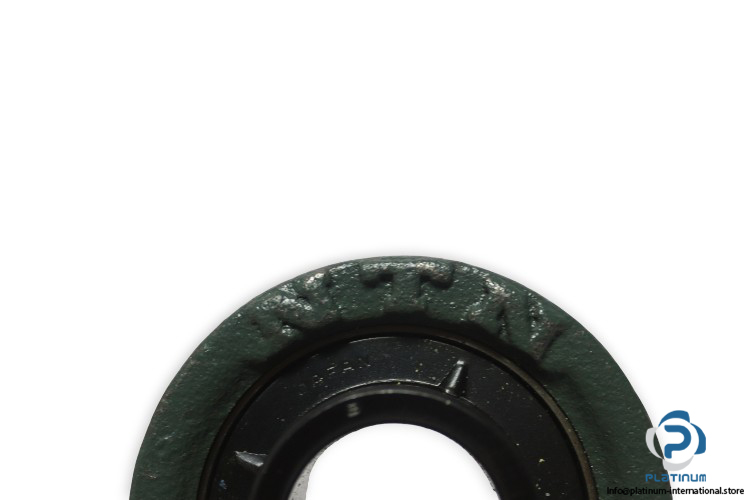

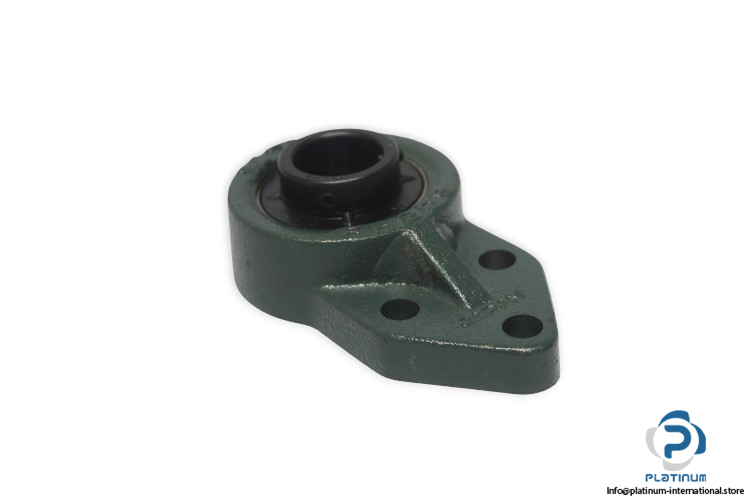

NTN Ucfh 205 Three Bolt Flanged Unit

Available on request

NTN UCFH205 Cast Iron Three Bolt Flanged Unit The NTN UCFH205 Cast Iron Three Bolt Flanged Unit is a high-quality mounted bearing unit designed for reliable shaft support and smooth operation. Featuring a 25 mm shaft diameter, cast iron housing, set screw locking, and rotational speeds up to 5900 rpm, it is ideal for industrial machinery and power transmission systems.

Manufacturer
NTN?
SKU
1089961
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Bearing NumberUC205
Housing NumberFH205
Shaft Diameter d25 mm
Overall length L68 mm
Pitch Diameter of Attachment Bolts J34 mm
Length of Attachment Bolt Hole N10 mm
Width of Inner Ring B34.10 mm
Overall Width A035.8 mm
Dynamic Load Rating14000 N
Static Load Rating7850 N
Rotational speed5900 rpm
Locking DeviceSet Screw
Housing Materialcast iron
ConditionNew
SKU1089961
Weight0,62
