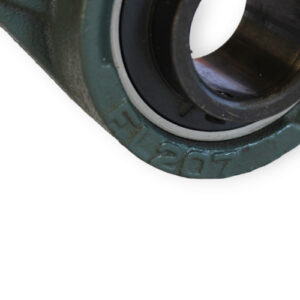

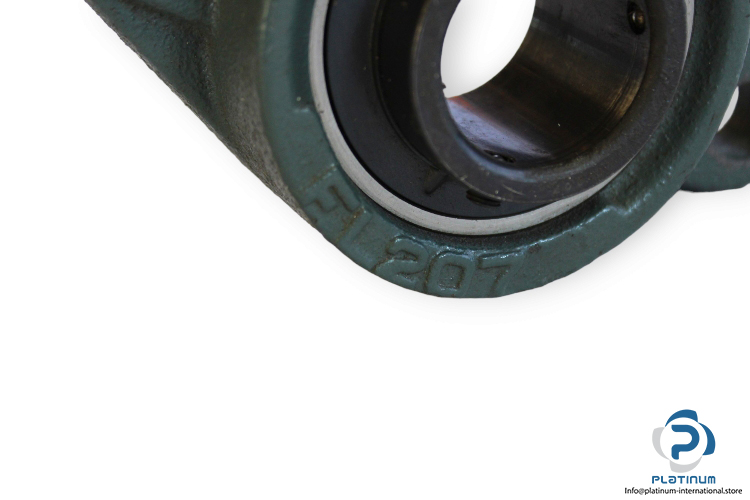

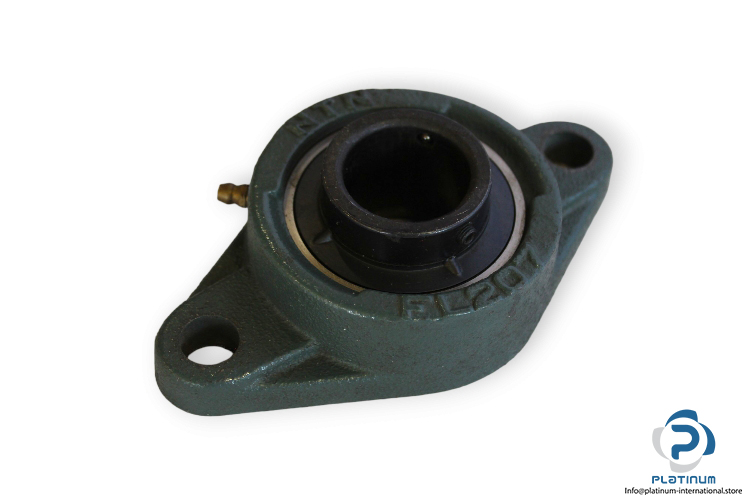

NTN Ucfl 207 Oval Flange Ball Bearing Unit

Manufacturer: NTN
Type: Oval flange ball bearing unit
Model: UCFL 207
Bearing Number: UC207
Housing Number: FL207

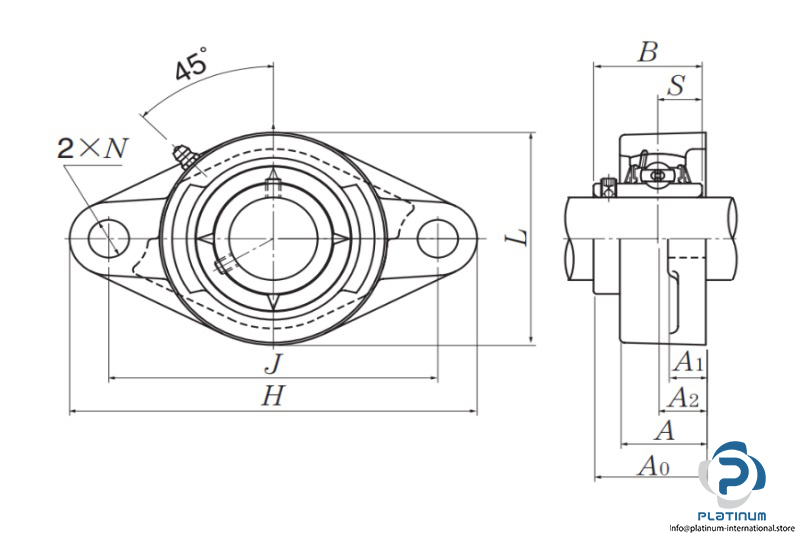

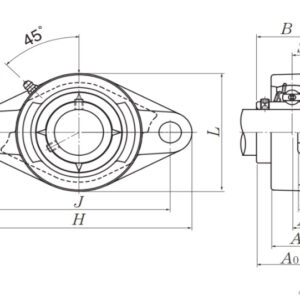

Dimensions
Bore Diameter d: 35 mm
Overall Length L: 90 mm
Overall Height H: 161 mm
Width of inner ring B: 42.9 mm
Distance Between Attachment Bolts J: 130 mm
Overall unit width A₀: 44.4 mm
Dynamic Load Rating: 25700 N
Static Load Rating: 15300 N
Maximum Rotational Speed: 4200 rpm
Mounting: Oval Flange
Housing Material: Cast Iron
Locking Device: Set Screw
