In stock3 unitsReady to ship

Hanger Unit

NTN UCHB205 hanger unit with 25 mm bore, UC205 bearing, cast iron housing, and set screw locking for industrial shaft support applications.

Manufacturer
NTN?
SKU
1089949
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

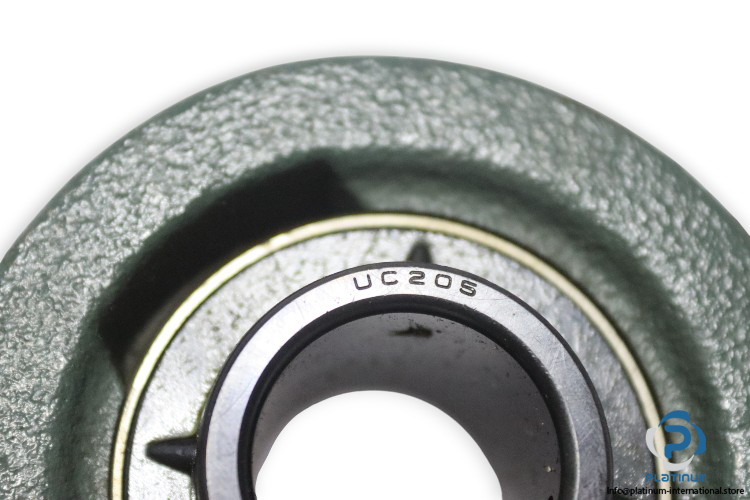

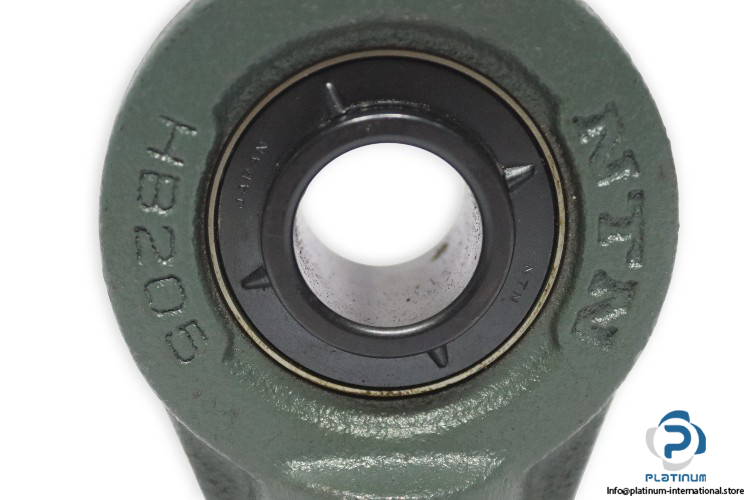

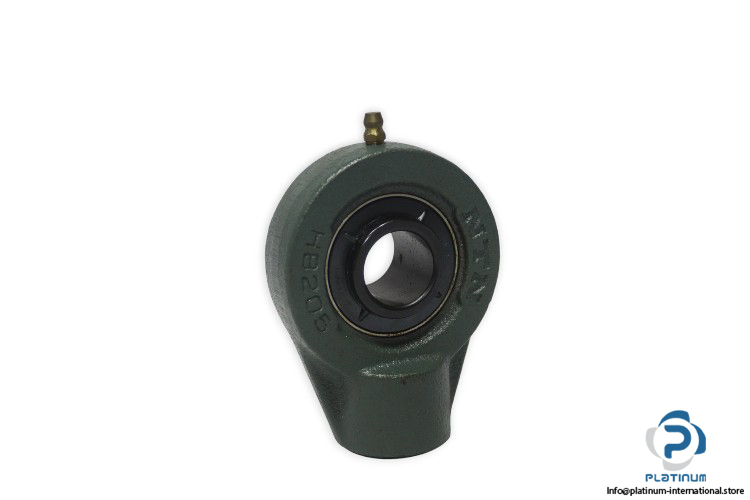

NTN UCHB205 Hanger Unit

The NTN UCHB205 hanger unit is a robust bearing assembly designed to support rotating shafts in industrial applications. It combines a UC205 insert bearing with an HB205 cast iron housing, providing reliable load handling and stable operation.

Manufacturer: NTN

Type: Hanger Unit

Model: UCHB205

Bearing Number: UC205

Housing Number: HB205

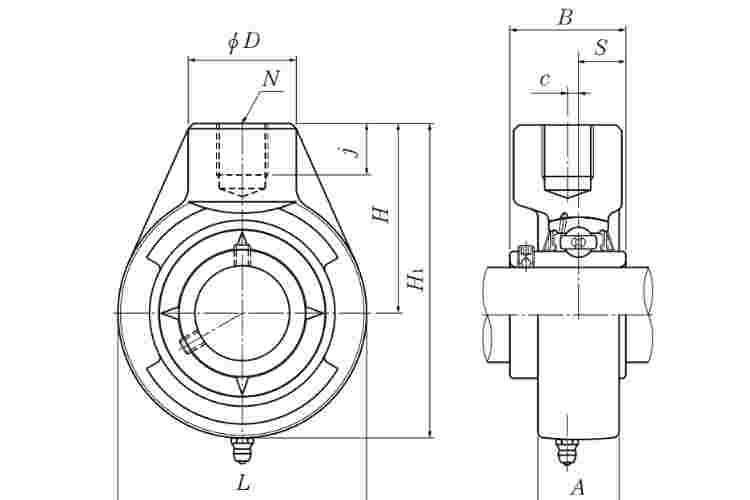

Bore Diameter (d)25 mm
Overall Length (L)78 mm
Overall Height (H1)103 mm
Width of Inner Ring (B)34.10 mm
Mounting Height (H)64 mm
Mounting Holes Distance (j)19 mm
Housing Width (A)24 mm
Distance Front Side / Bearing Center (S)14.300 mm
Dynamic Load Rating (Cr)14000 N
Static Load Rating (C0r)7850 N
Rotational Speed5900 rpm
Locking DeviceSet Screw
Housing MaterialCast Iron
NTN 1R 90X100X30 Inner Ring
New

NTN?

NTN 1R 90X100X30 Inner Ring

SKU: 1090120

Qty: 14

Available through quotation
NTN 1315 K Self-Aligning Ball Bearing
New

NTN?

NTN 1315 K Self-Aligning Ball Bearing

SKU: 1090889

Qty: 1

Available through quotation
NTN 6316 ZZ/2A Deep Groove Ball Bearing
New

NTN?

NTN 6316 ZZ/2A Deep Groove Ball Bearing

SKU: 1090416

Qty: 2

Available through quotation
NTN 6309 ZZ C3 Deep Groove Ball Bearing
New

NTN?

NTN 6309 ZZ C3 Deep Groove Ball Bearing

SKU: 1090211

Qty: 1

Available through quotation
NTN NK 25/16 R Needle Roller Bearing With Inner Ring
New

NTN?

NTN NK 25/16 R Needle Roller Bearing With Inner Ring

SKU: 1090114

Qty: 1

Available through quotation

Related Products

SKF Synt 45 F Pillow Block Roller Bearing Unit
New

SKF?

SKF Synt 45 F Pillow Block Roller Bearing Unit

SKU: 999575

Qty: 2

155,55$
Fafnir Scjt 1-1/4 TWO-Bolt Flanged Unit
New

FAFNIR

Fafnir Scjt 1-1/4 TWO-Bolt Flanged Unit

SKU: 967713

Qty: 1

Available through quotation
SKF FNL 518 B Flanged Housing Unit
New

SKF FNL 518 B Flanged Housing Unit

SKU: 984660

Qty: 22

350,00$
SKF SYT 60 F Pillow Block Roller Bearing Unit
Used

SKF?

SKF SYT 60 F Pillow Block Roller Bearing Unit

SKU: 1029389

Qty: 2

Available through quotation
Link-Belt PK-B22424H TWO-Bolt Spherical Roller Bearing Pillow Block Unit
Used

LINKBELT

Link-Belt PK-B22424H TWO-Bolt Spherical Roller Bearing Pillow Block Unit

SKU: 967750

Qty: 2

144,44$
Platinum International
Surplus, New & Used - Always Reliable
NTN? SKU: 1089949
NTN Uchb 205 Hanger Unit
NTN Uchb 205 Hanger Unit
PriceOn Request
Stock3 In stock
ManufacturerNTN?
CategoryPlummer Block Housing Units
ConditionNew
SKU1089949

Hanger Unit

NTN UCHB205 hanger unit with 25 mm bore, UC205 bearing, cast iron housing, and set screw locking for industrial shaft support applications.

Description

Bore Diameter (d)25 mm
Overall Length (L)78 mm
Overall Height (H1)103 mm
Width of Inner Ring (B)34.10 mm
Mounting Height (H)64 mm
Mounting Holes Distance (j)19 mm
Housing Width (A)24 mm
Distance Front Side / Bearing Center (S)14.300 mm
Dynamic Load Rating (Cr)14000 N
Static Load Rating (C0r)7850 N
Rotational Speed5900 rpm
Locking DeviceSet Screw
Housing MaterialCast Iron

Technical Specifications

Weight0,85 kg
ConditionNew
ManufacturerNTN?
Shelf No.260120
Type of ProductHanger unit
