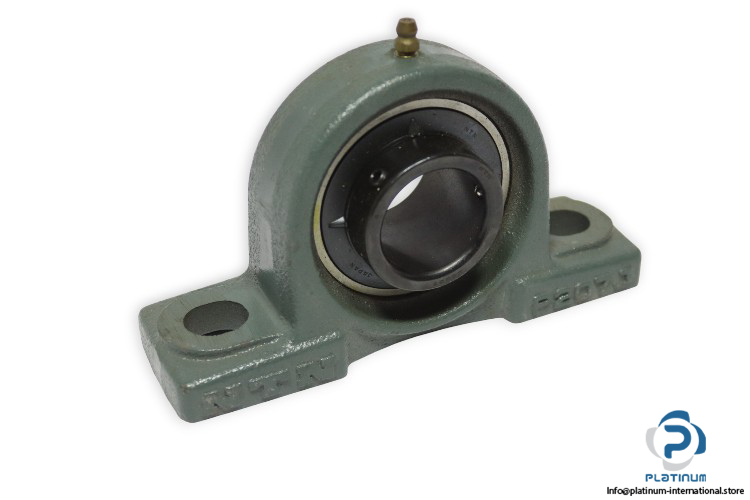

NTN UCP 207J Pillow Block Ball Bearing Unit
New
In stock2 unitsReady to ship
Pillow Block Bearing Unit
NTN UCP207J pillow block bearing unit with UC207 insert, set screw locking, cylindrical bore, and cast iron housing for industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NTN UCP207J Pillow Block Bearing Unit
The NTN UCP207J is a robust pillow block ball bearing unit designed for stable shaft support and reliable operation in industrial environments. It features a mounted UC207 insert bearing housed in a durable cast iron P207J housing, providing long service life and easy installation.
Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: UCP207J

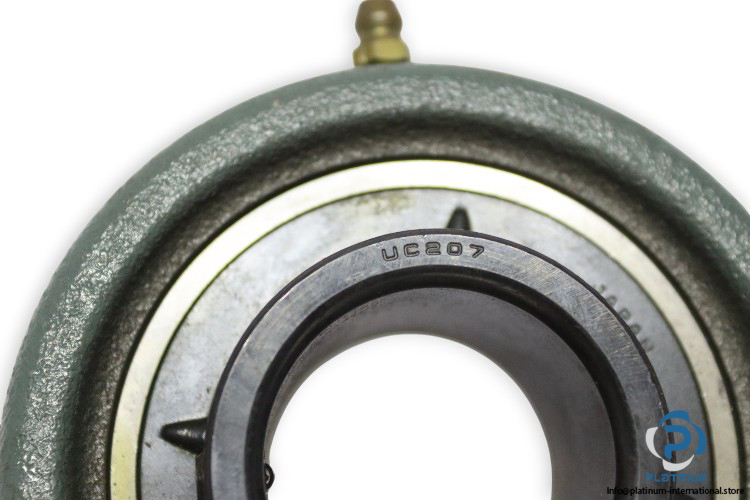

Bearing Number: UC207

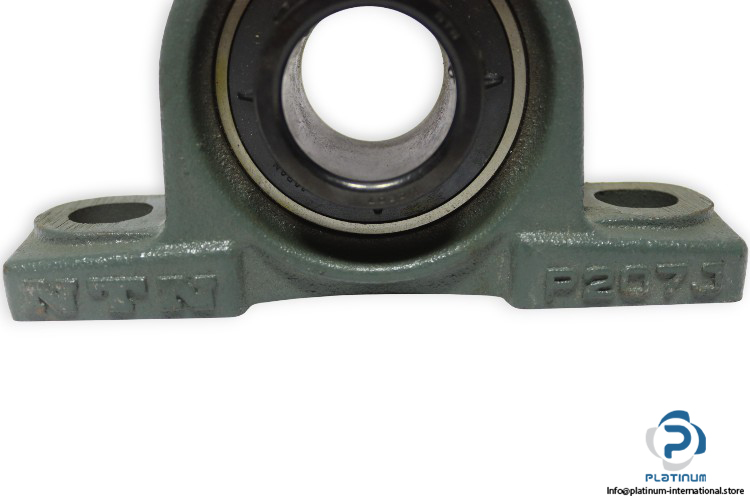

Housing Number: P207J
| Bore Diameter (d) | 31.750 mm |
| Overall Length (L) | 167 mm |
| Overall Height (H2) | 93 mm |
| Base Width (A) | 48 mm |
| Height Of Spherical Seat Center (H) | 47.6 mm |
| Distance Between Attachment Bolts (J) | 127 mm |
| Diameter Of Attachment Bolt Hole (N) | 17 mm |
| Length Of Attachment Bolt Hole (N1) | 20 mm |
| Width Of Inner Ring (B) | 42.9 mm |
| Foot Height (H1) | 18 mm |
| Bore Type | Cylindrical Bore |
| Locking Device | Set Screw |
| Material | Cast Iron |
