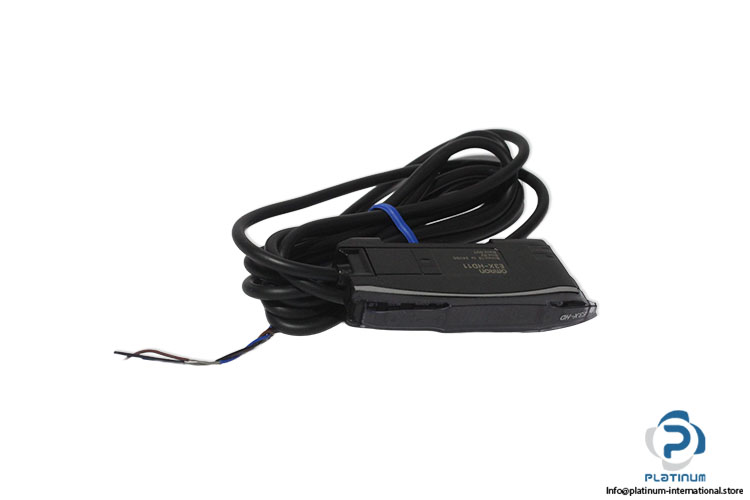

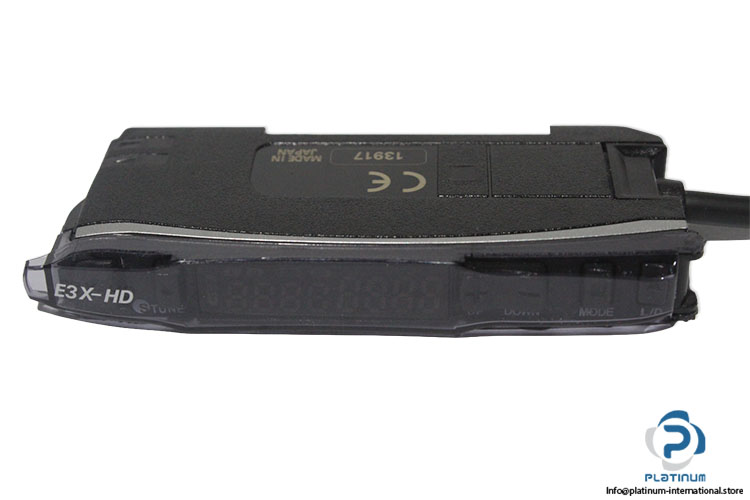

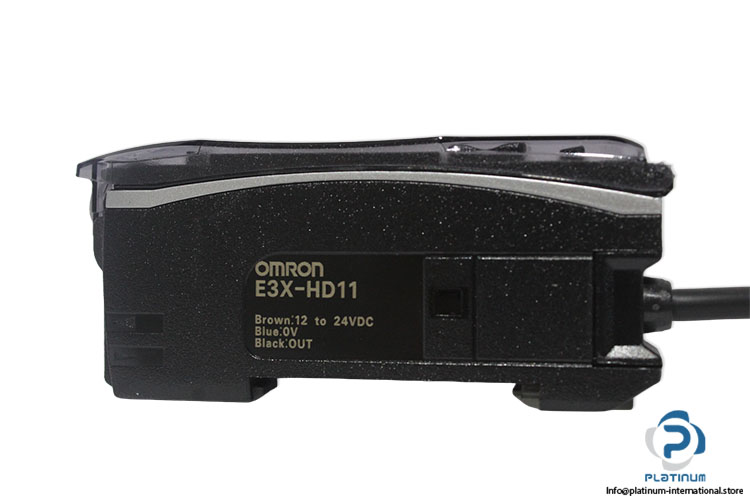

Omron E3X-HD11 Smart Fiber Sensor

In stock1 unitReady to ship

59,99$

Smart Fiber Sensor OMRON smart fiber sensor with NPN output, 12–24 VDC supply, red LED light source, and multiple response modes for precise industrial detection and automation applications.

Manufacturer
OMRON
SKU
1100893
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Ref No13917, 4548583104259
outputNPN
Connecting methodPre-wired
Light source (wavelength)Red, 4-element LED (625 nm)
Power supply voltage12 to 24 VDC ±10%, ripple (P-P) 10%
(Current consumption22 mA max. at 24 VDC, 44 mA max. at 12 VDC)
Eco LO 640 mW max. (Current consumption26 mA max. at
Control output Load power supply voltage26.4 VDC max., open-
Load currentGroups of 1 to 3 Amplifier Units: 100mA max.,
Groups of 4 to 16 Amplifier Units20mA max.
Residual voltageAt load current of less than 10 mA: 1 V max.,
At load current of 10 to 100 mA2 V max.
OFF current0.1 mA max.
Protection circuitsPower supply reverse polarity protection, output short-circuit protection and output reverse polarity protection
Response time, Super-high-speed mode (SHS)NPN outputs: Operate or reset: 50 µs,PNP outputs: Operate or reset: 55 µs
High-speed Mode(HS) Operate or reset: 250 µs (default setting)
Standard Mode(STND) Operate or reset: 1 ms
Giga-power Mode(GIGA) Operate or reset: 16 ms
Maximum connectable Units16 units
Mutual interference preventionPossible for up to 10 units (optical communications sync)
Auto power control (APC)Always ON
Other functionsPower tuning, differential detection, DPC, timer (OFF-delay, ON-delay, or one-shot),
Ambient illumination(Receiver side) Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Stock keyCON003
ConditionNew
SKU1100893
Weight0,08
