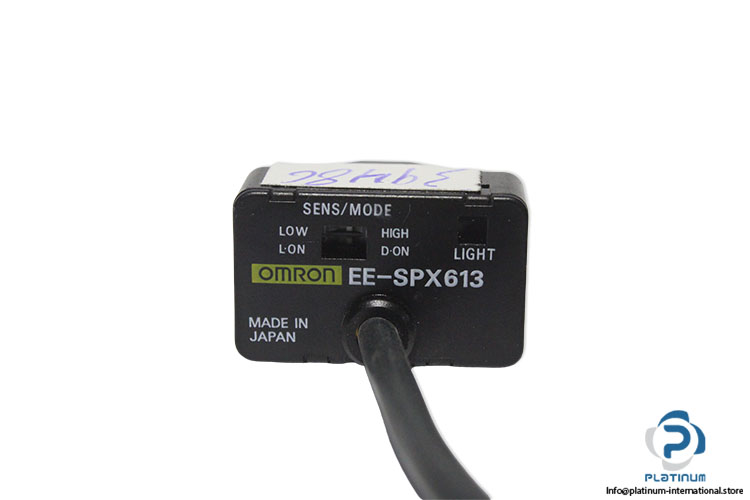

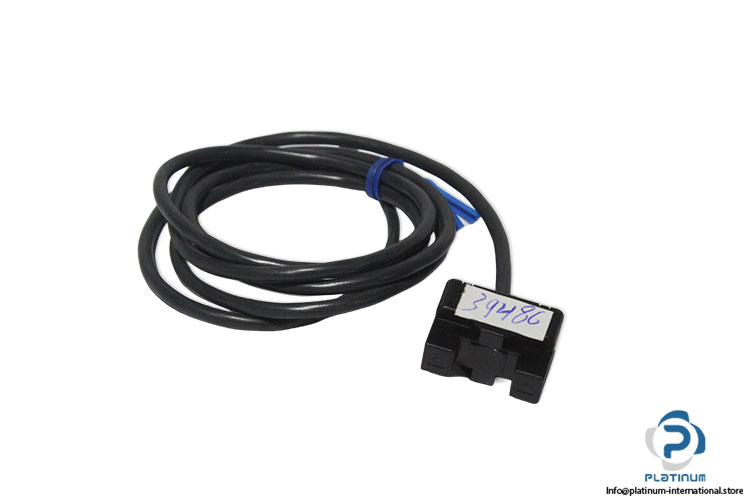

Omron EE-SPX613 Liquid Level Photomicro Sensor

In stock11 unitsReady to ship

Liquid Level Photomicrosensor OMRON EE-SPX613 pipe-mounting liquid level photomicrosensor with built-in amplifier, designed for reliable liquid detection through transparent pipes in industrial automation applications.

Manufacturer
OMRON
SKU
1100907
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Applicable pipeAny 6- to 13-mm-diameter pipe with a wall thickness of 1 mm that is made of FEP or any other material as transparent as FEP.
Sensing objectLiquids in pipes (High-viscosity liquids or liquids with floating materials may not be detected.)
Light sourceGaAs infrared LED with a peak wavelength of 940 nm
IndicatorLight indicator (Red LED)
Supply voltage12 to 24 VDC ±10%, ripple (p-p): 5% max.
Current consumptionAverage: 30 mA max., Peak: 80 mA max.
Control outputNPN open collector:
Load power supply voltage5 to 24 VDC
Load current100 mA max.
OFF current0.5 mA max.
Control output,load current100 mA with a residual voltage of 0.8 V max.,40 mA load current with a residual voltage of 0.4 V max.
Ambient illumination3,000 lx max. with incandescent light or sunlight on the surface of the receiver
Ambient temperature, Operating- 10 to +55 °C
Storage- 25 to +65 °C (with no icing or condensation)
Ambient Operating5% to 85%
Vibration resistanceDestruction: 10 to 500 Hz, 1.0-mm single amplitude or 150 m/s2 in X, Y, and Z directions
Shock resistanceDestruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protectionIEC 60529 IP50

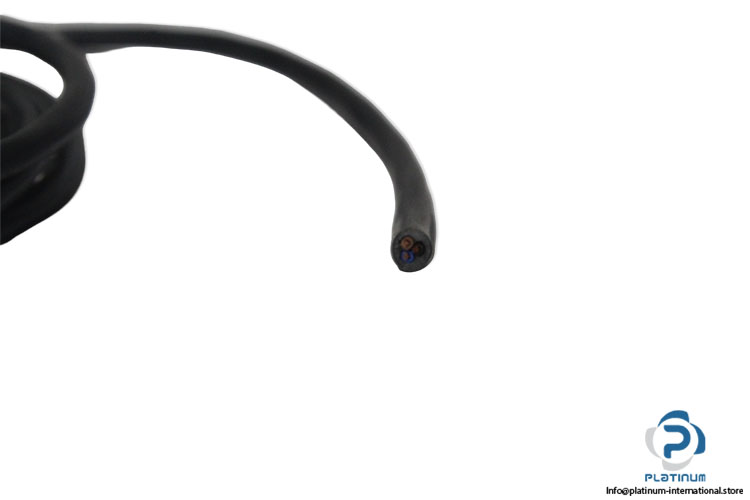

Connecting methodPre-wired (Standard length: 1 m)
MaterialPolycarbonate
Stock keyCON003
ConditionNew
SKU1100907
Weight0,02
