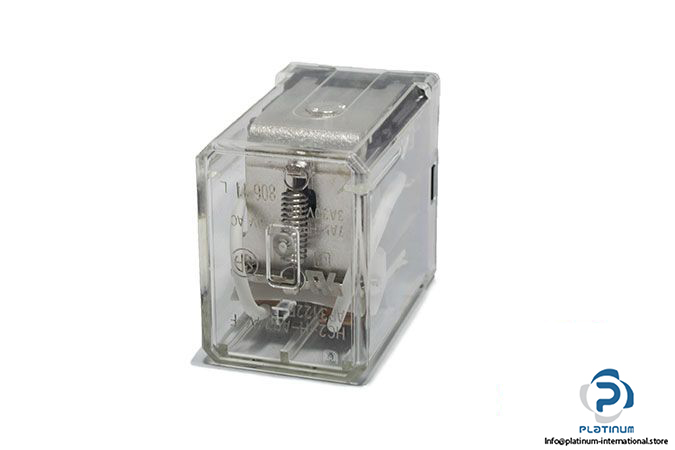

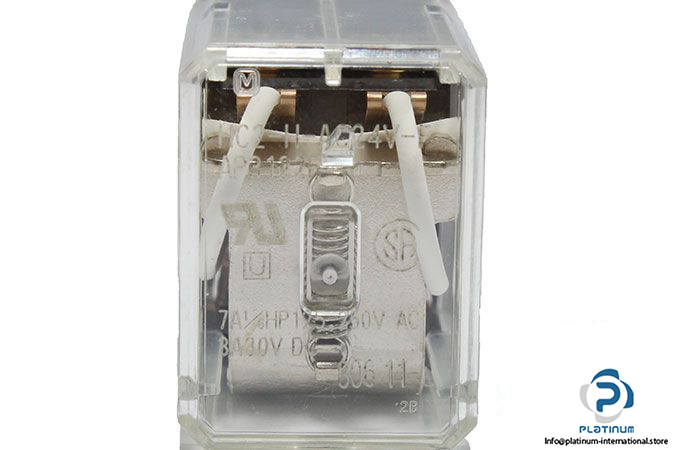

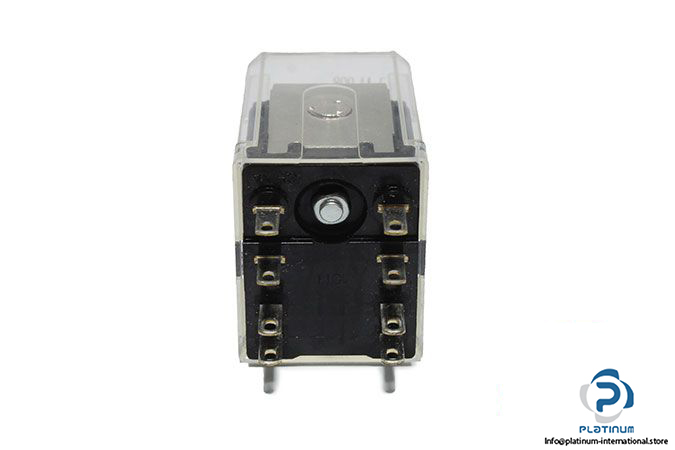

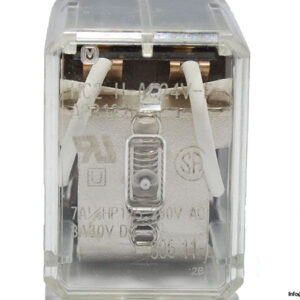

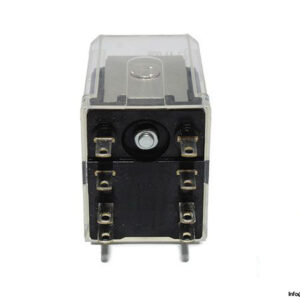

Panasonic HC2-H-AC24V-F Relay

Manufacturer: Panasonic

Type: Relay

Model: HC2-H-AC24V-F



Contact Arrangement: 2 form C

Terminal Arrangement: Plug-in type

Nominal Coil Voltage: 24 VAC

Contact Resistance: max. 30 mΩ

Contact Material: Ag alloy (cd free) + Au flush

Nominal Switching Capacity: 7 A, 250 VAC

Switching Power: max. 1250 VA

Switching Voltage: 250 VAC

Switching Current: 7 A

Ambient Temperature: -50 … 70°C

Dimensions: 20 X 34 X 27 mm

Weight: 0.035 Kg
