Parker PVS16EH140C2 Vane Pump

In stock1 unitReady to ship

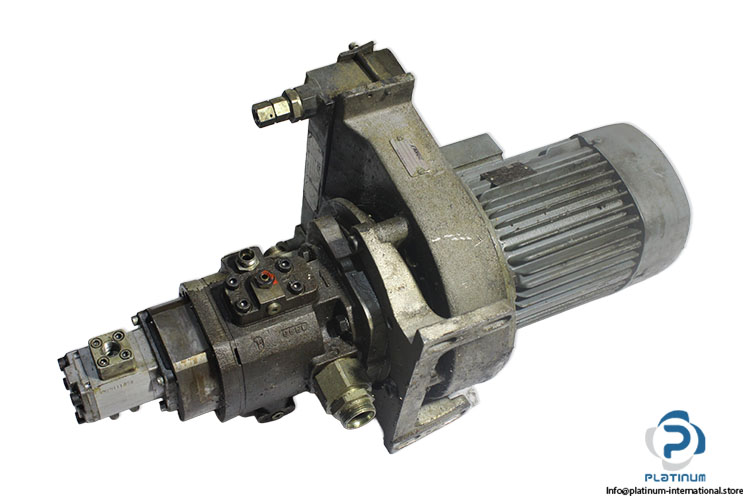

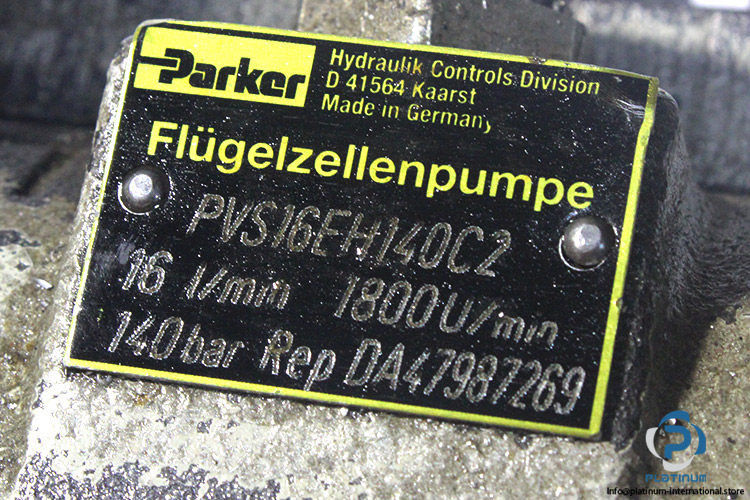

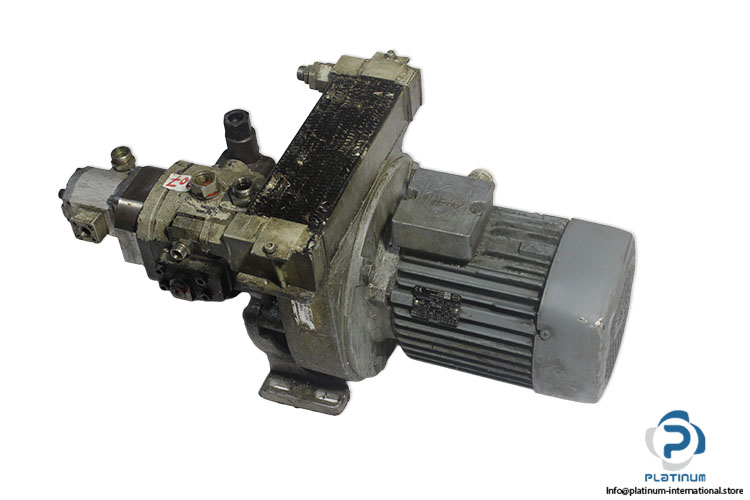

Hydraulic Vane Pump The Parker PVS 16 EH 140 C2 is a 16 cm³/rev hydraulic vane pump with servo pressure compensation and pressure up to 140 bar, supplied with a VEM brake motor and FLUTEC pump bellhousing.

Manufacturer
PARKER
SKU
1100315
Category
Vane Pumps
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

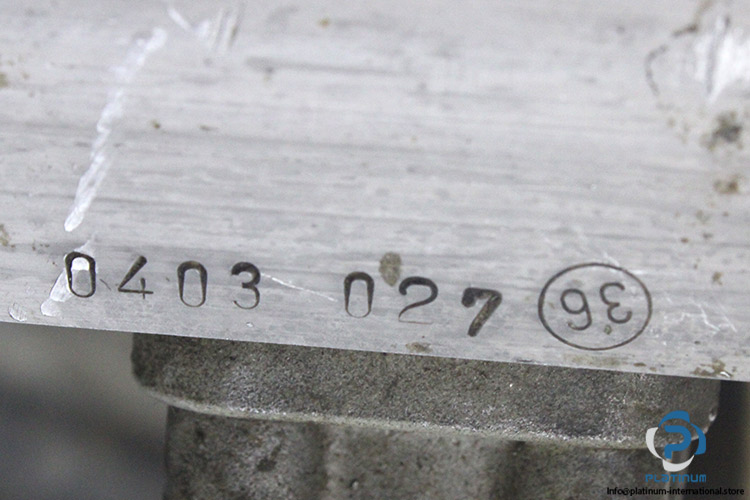

CodeDA47987269/ 330 9111 050/0403 027
SeriesPVS / c
Fluidoil
size16
Control optionsServo pressure compensator
Displacement16 cm3/rev
Direction of RotationClockwise
CombinationsSingle pump / main pump
Nominal pressureup to 140 bar
Shaft Diameter28 mm
Output flow at 1800 rpm16 l/min
Speed1800 rpm
Ambient-temperature range–10 … 70 °C
Max Pressure140 [bar]
Inlet Pressure min.1.0 [bar]
absolute Drain portmax. 0.5 [bar]
Viscosity range22 - 100[mm²/s]

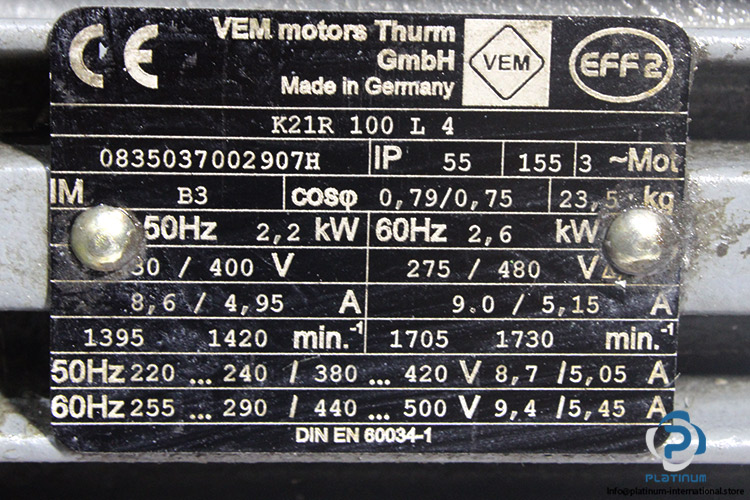

ATTACHMENTVEM K21R 100 L 4 Motor
Ref Code0835037002907H
Rated Current [A]8,6 / 4,95 / 9.0 / 5,15
Rated Voltage [V]380 / 400 / 275 / 480
Rated Power [Kw]2,2 /2.6
Rated Speed [min-1]1395-1420/ 1705-1730
Frequency [Hz]50/60
DutyS1
Power Factor [cos]0,79/0,75
Protection Class [IP]55
Thermal ClassF

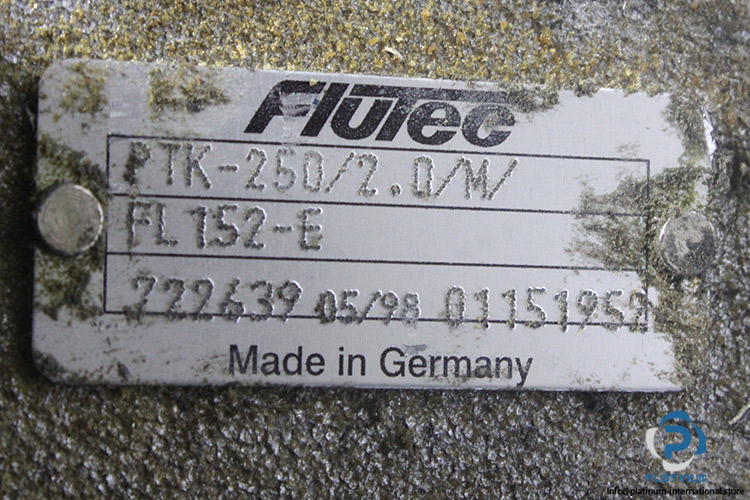

Attachment 2FLUTEC PTK-250/2.0/M/ FL152-E Pump Bellhousing
Ref No722639 05/98 01151952

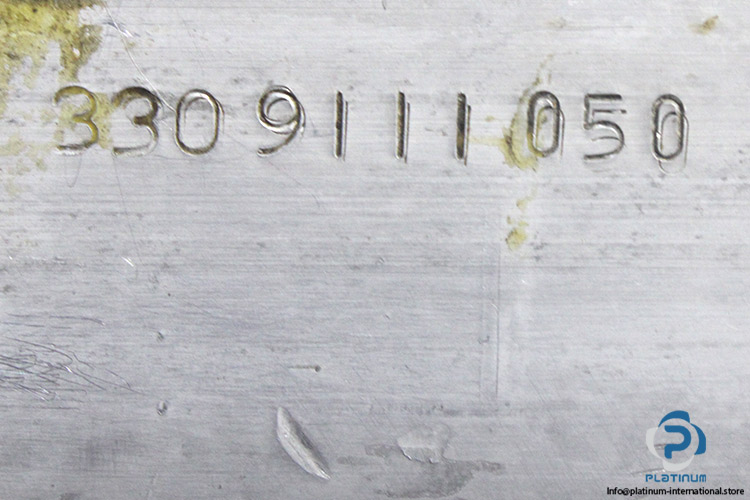

Attachment 33309111050 gear pump
Stock keyCON003
ConditionUsed
SKU1100315
Weight56,95
