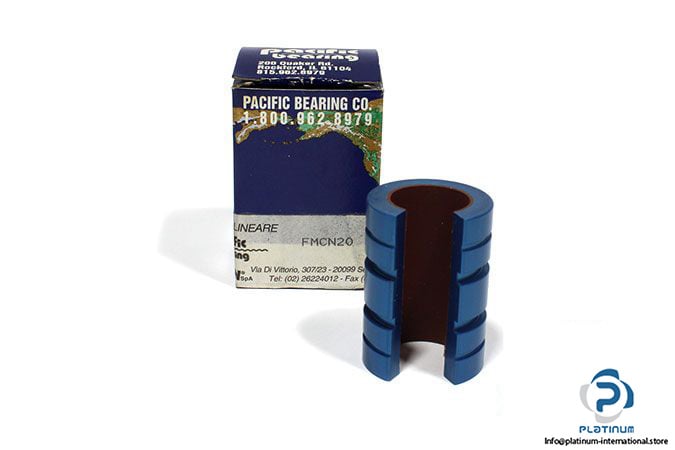

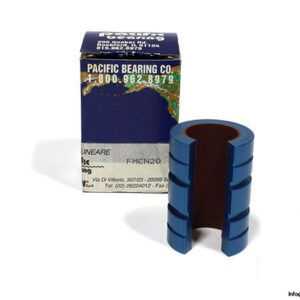

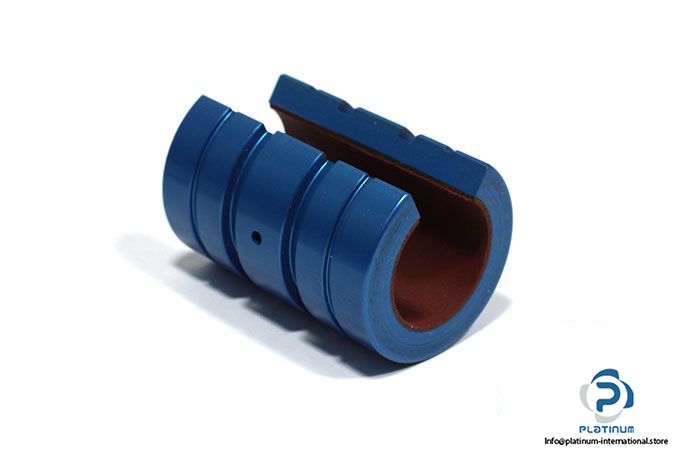

Name: PBC FMCN20 OPEN LINEAR PLAIN BEARING
SKU: 993740
Availability: LimitedAvailability

Manufacturer: PBC ROLLON

Type: Open Linear Plain Bearings Compensated I.D. Series

Model: FMCN 20

Shaft diameter ID: 20 mm

Design type: Open type

Static load rating: 18541 N

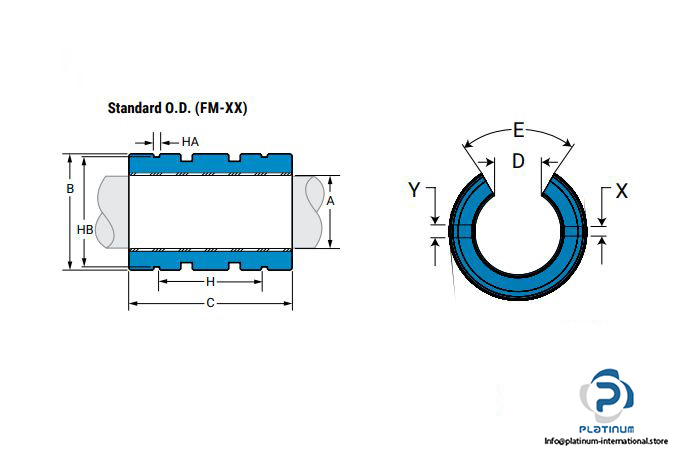

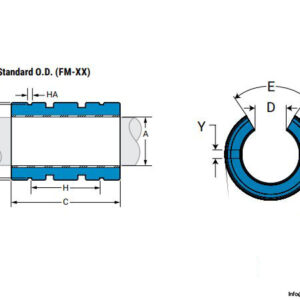

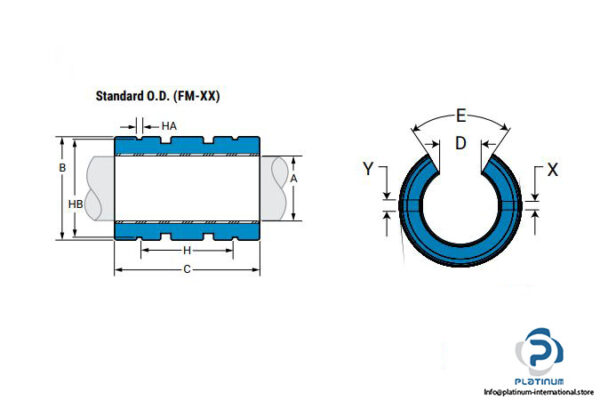

Dimensions:

B: 32 mm

C: 45 mm

H: 28 mm

Slot Wide D: 10.8 mm

Temperature Range: -240 … 204° C

Weight: 0.05 kg

Specification	Value
Condition	New
Shelf No.	221008

Price	On Request
Stock	5 In stock
Category	Shaft Guiding & Linear Ball Bushings
Condition	New
SKU	993740

Condition	New
Shelf No.	221008

PBC FMCN20 Open Linear Plain Bearing
