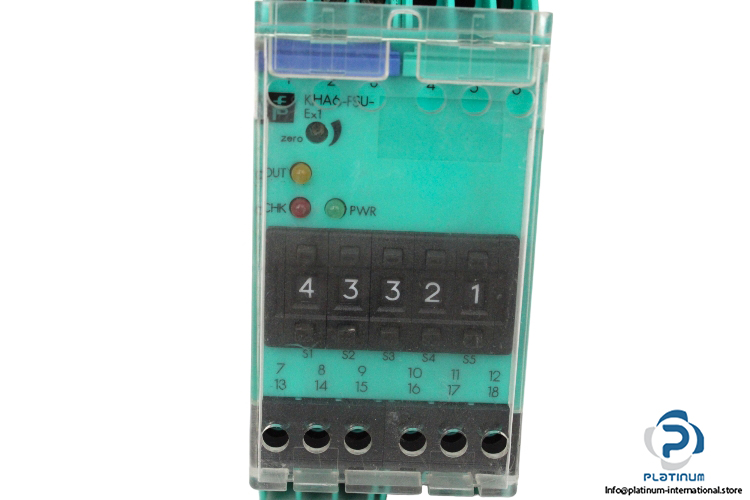

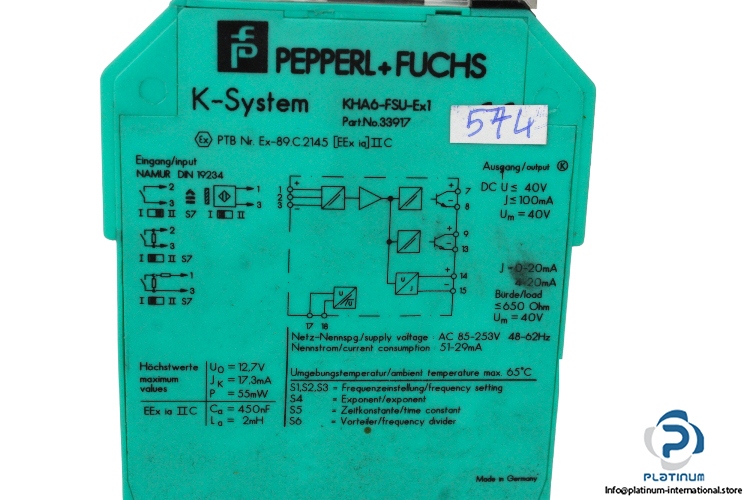

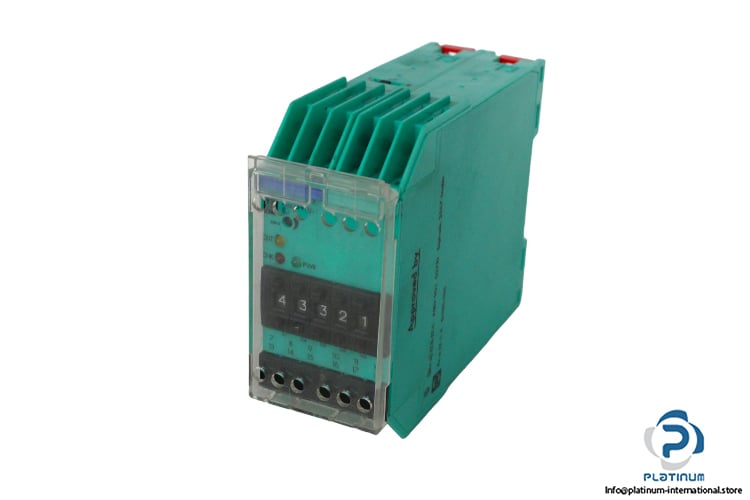

Pepperl Fuchs KHA6-FSU-EX1 Switch Amplifier

Manufacturer: Pepperl Fuchs

Type: Switch Amplifier

Model: KHA6-FSU-EX1

Part No.: 33917

Supply voltage: 85 … 253 V AC

Frequency: 48 … 62 Hz

Power consumption: ≤ 4 W

Current output range: 0 … 20 mA or 4 … 20 mA, max. 25 mA

Safety maximum voltage Um: 40 V DC

Resolution: 12 Bit

External inductance: 2 mH

External capacitance: 0,45 µF

Data for application in conjunction with hazardous areas

Voltage U0: 12,7 V

Current I0: 17,3 mA

Power P0: 55 mW

Ambient temperature: -25 … 65 °C

Protection degree: IP20

Dimensions: 40 x 100 x 115 mm
