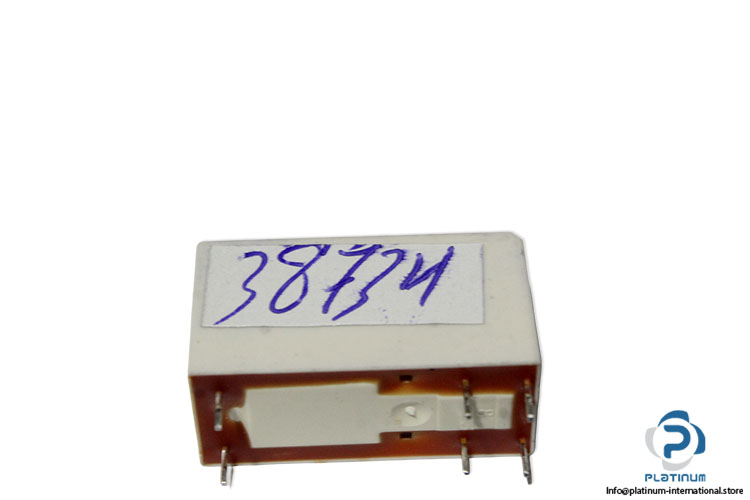

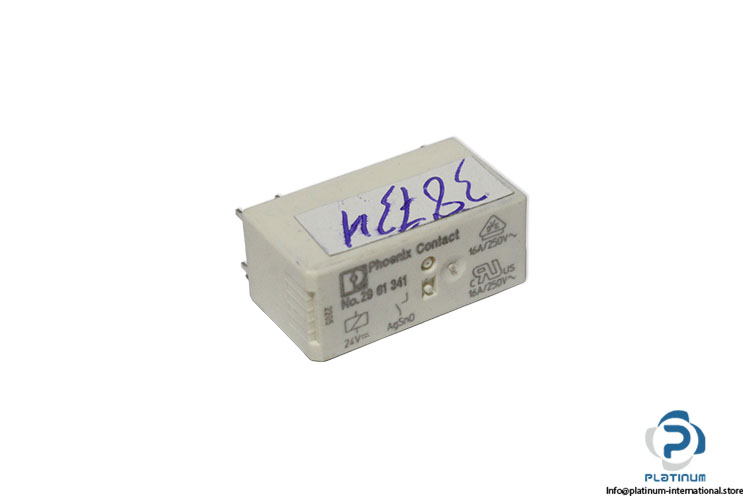

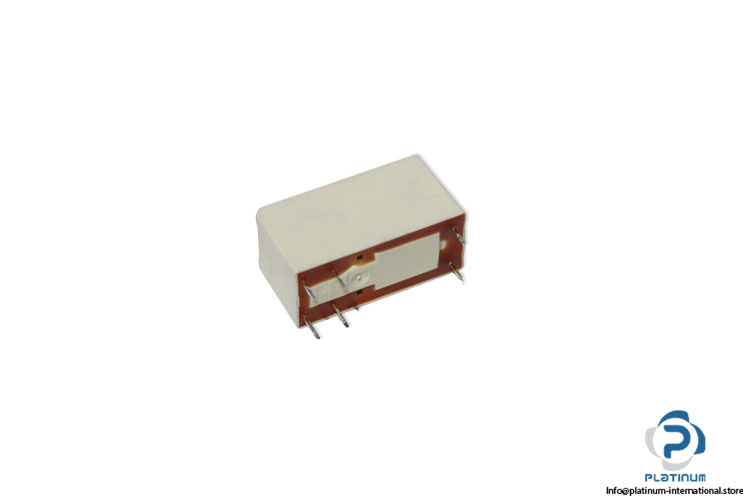

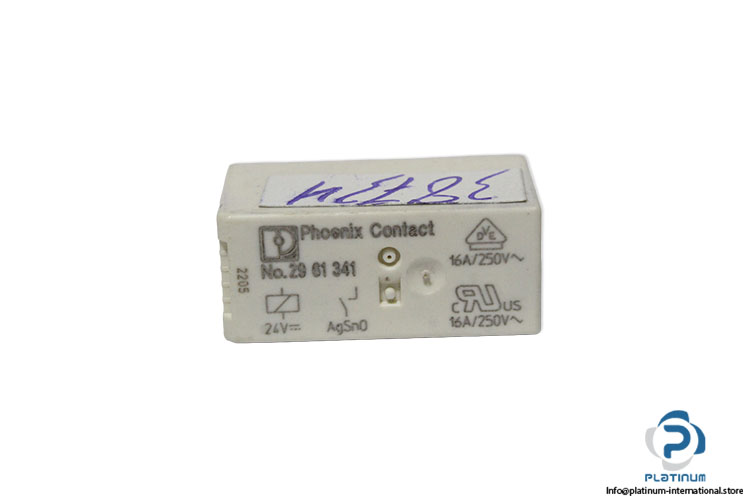

Phoenix Contact 29 61 341 Single Relay
New
In stock2 unitsReady to ship
Pluggable Miniature Power Relay Phoenix Contact miniature power relay with 24 V DC input, 1 N/O contact, 16 A limiting continuous current, and plug/solder connection for industrial switching and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 2961341 |
| Nominal input voltage | 24 V DC |
| Typical input current | 17 Ma |
| Contact switching type | 1 N/O contact |
| Contact material | AgSnO |
| Switching voltage | max. 250 V AC |
| Limiting continuous current | 16 A |
| Power dissipation for nominal condition | max. 0.41 W |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV |
| Connection method | Plug / solder connection |
| Certificate | cURus, VDE |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Dimensions | 12.7 x 29 x 15.7 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098240 |
| Weight | 0,01 |
