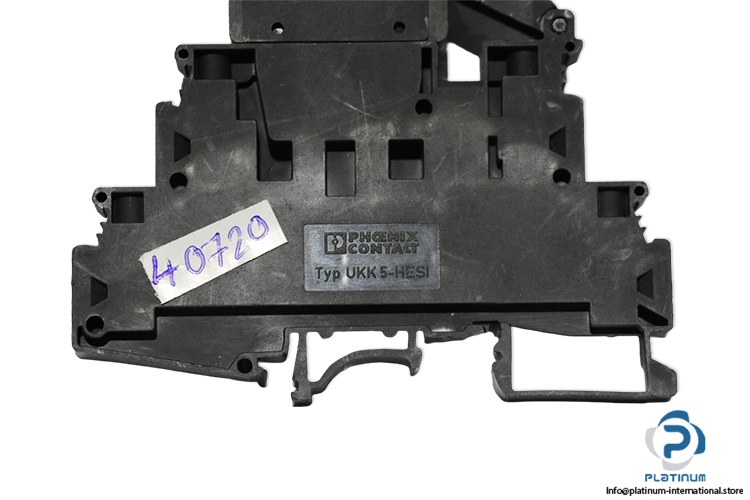

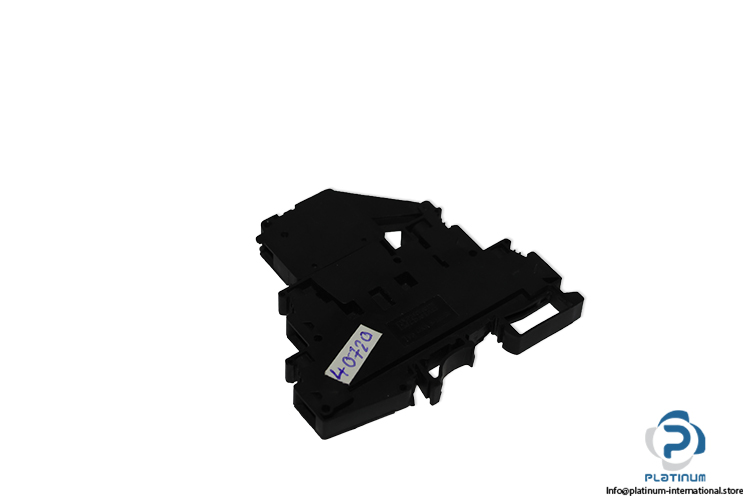

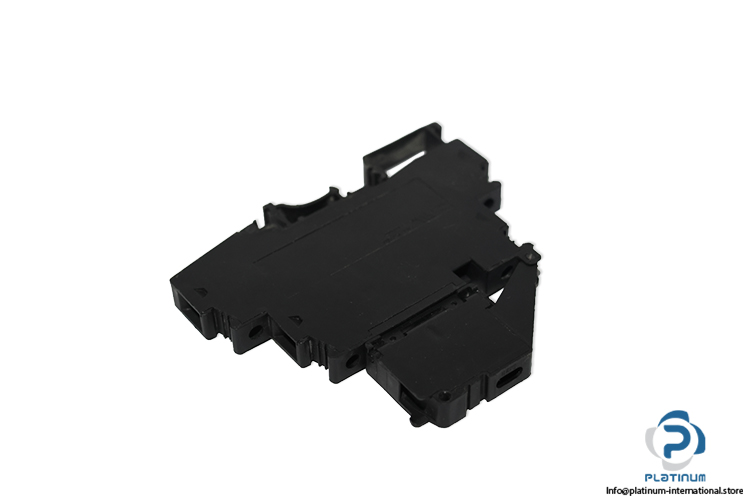

Phoenix Contact UKK5-HESI Fuse Modular Terminal Block
New
In stock1 unitReady to ship
PHOENIX CONTACT UKK5HESI Fuse Modular Terminal Block – 3007204 The PHOENIX CONTACT UKK5HESI is a fuse modular terminal block designed for industrial electrical circuit protection and secure wiring connections. It features 4 connections, 2 rows, a nominal voltage of 400 V, a nominal current of 32 A, and M3 screw connection technology. Constructed from PA material, it supports glass or ceramic fuses and complies with IEC 60947-7-1.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Item number | 3007204 |
| Number of positions | 1 |
| Number of connections | 4 |
| Number of rows | 2 |
| Fuse type | Glass / ceramics |
| Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 1.02 W |
| Fuse | G / 5 x 2 |
| Number of connections per level | 2 |
| Nominal cross section | 4 mm² |
| Connection | Screw connection M3 |
| Tightening torque | 0.5 ... 0.8 Nm |
| Stripping length | 8 mm |
| Standard | IEC 60947-7-1 |
| Nominal Voltage | 400 V |
| Nominal Current | 32 A |
| material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C |
| Dimensions | 8.2 x 86.5 x 84 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1105015 |
| Weight | 0,03 |
