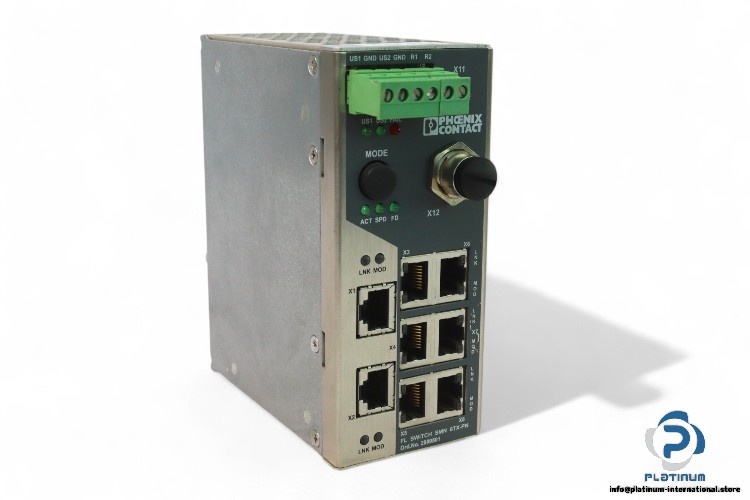

Phoenix Contact FL Switch SMN 8TX-PN Industrial Ethernet Switch
PHOENIX CONTACT Industrial Ethernet Switch FL SWITCH SMN 8TX-PN features 8 RJ45 ports, a maximum conductor length of 100 meters, and a temperature range of 0 to 55°C. It comes in an aluminum housing with IP20 protection.
PHOENIX CONTACT Industrial Ethernet Switch FL SWITCH SMN 8TX-PN
The PHOENIX CONTACT Industrial Ethernet Switch FL SWITCH SMN 8TX-PN is a robust solution designed for seamless connectivity in industrial environments. With 8 RJ45 ports and a maximum conductor length of 100 meters, this switch ensures reliable data transfer. Its aluminum housing, rated IP20 protection class, and temperature range from 0 to 55°C make it suitable for various industrial applications.
🔧 Technical Specifications:
- Manufacturer: PHOENIX CONTACT
- Type: Industrial Ethernet Switch
- Model: FL SWITCH SMN 8TX-PN
- Part No: 2989501
- Rated Supply Voltage: 24 V DC
- Current Consumption: 250 mA
- Connection Method: RS-232-C, 6-pos. MINI-DIN socket (PS/2)
- Housing Material: Aluminum
- Interface: Ethernet (RJ45)
- Number of Ports: 8 (RJ45 ports)
- Maximum Conductor Length (Twisted Pair): 100 m
- Protection Class: IP20
- Temperature Range: 0 to 55 °C
- Dimensions: 57 x 133 x 125 mm
