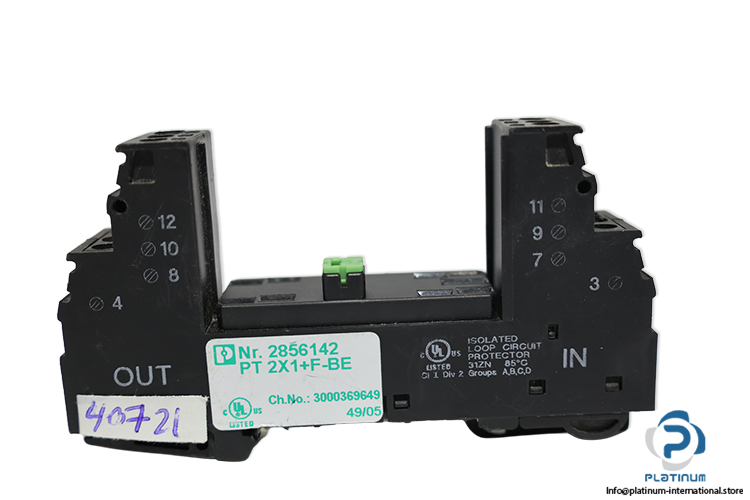

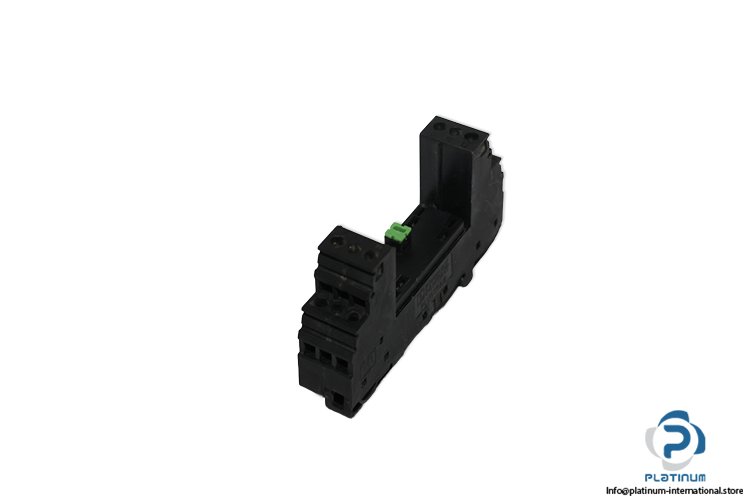

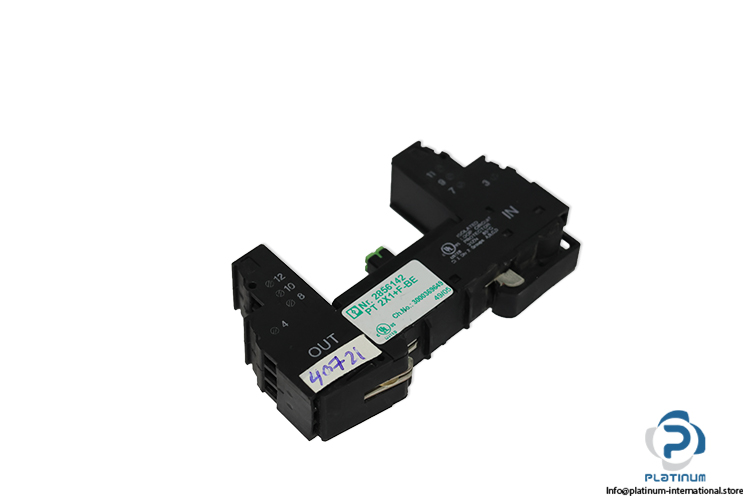

Phoenix Contact PT 2X1+F-BE Surge Protection Base-Element
Used
In stock1 unitReady to ship
PHOENIX CONTACT PT 2X1+F-BE Surge Protection Base Element (Item No. 2856142) is a 2-position base element designed for industrial surge protection applications. It features 24 V AC nominal voltage, 300 mA rated current, M3 screw connection, IP20 protection, and a durable PA housing for reliable integration into industrial electrical systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Item number | 2856142 |
| CH.NO. | 3000369649 |
| Number of positions | 2 |
| Nominal voltage UN | 24 V AC |
| Maximum continuous operating voltage UC | 40 V DC, 28 V AC |
| Rated current | 300 mA |
| Tightening torque | 0.5 Nm |
| Connection | Screw connection M3 |
| Conductor cross-section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Housing Material | PA |
| Dimensions | 17.7 x 90 x 51.5 mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1105016 |
| Weight | 0,04 |
