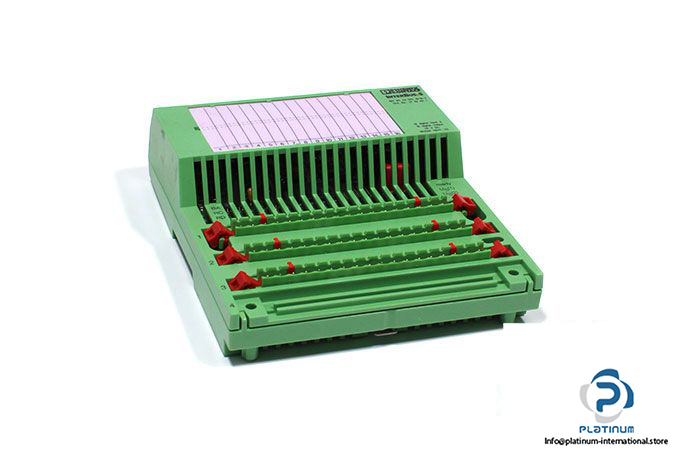

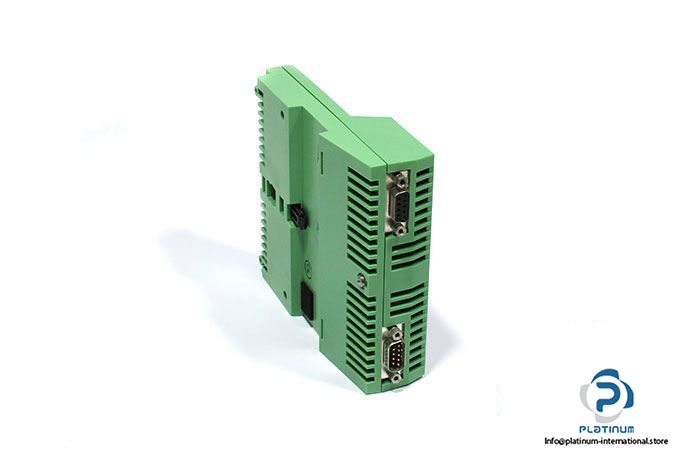

Phoenix IBS RT 24 DIO 16/16-T – 2753601 I/O Module
New
In stock1 unitReady to ship
199,99$
I/O MODULE
Phoenix Contact IBS RT 24 DIO 16/16-T I/O Module with 16 inputs, 16 outputs, 24 V DC operation, and D-SUB-9 connection. Compact 44 x 125 x 146 mm design for reliable industrial automation.16/16-T2424v2753601AutomationBUSCompactContactdcDigitalDIOI/OIBSIndustrialInputModuleOutputPhoenixRemoteRT
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

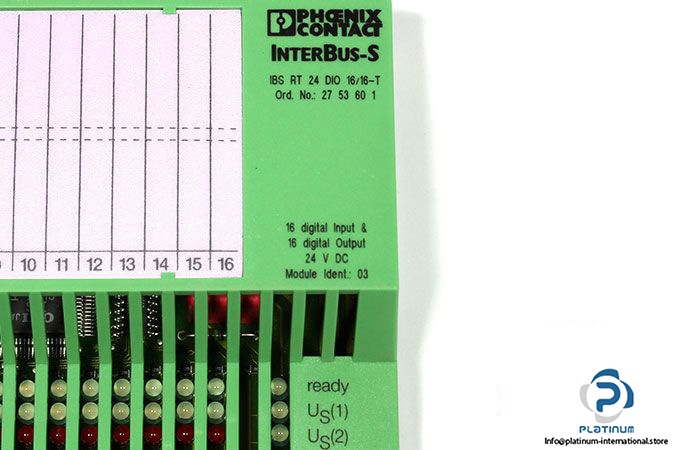

PHOENIX CONTACT IBS RT 24 DIO 16/16-T I/O MODULE
The Phoenix Contact IBS RT 24 DIO 16/16-T (Part No. 2753601) is a versatile I/O module designed for reliable industrial automation and control applications. Featuring 16 digital inputs and 16 digital outputs, this module supports stable signal processing with a robust voltage range and low current consumption.
Manufacturer: Phoenix Contact
Type: I/O Module
Model: IBS RT 24 DIO 16/16-T “ 27 53 60 1
Part No.: 2753601
| Number of Inputs | 16 |
| Typical Current Consumption | 100 mA |
| I/O Voltage | ± 24 VDC |
| I/O Voltage Range | 19.2 / 30 VDC |
| Typical Input Current Per Channel | 6 mA |
| Number of Outputs | 16 |
| Connection Technology | 1-conductor (optional 2, 3, 4-conductor) |
| Output Voltage | 24 V DC |
| Output Current | 100 mA |
| Input Voltage Range œ0 Signal | -30 V DC / 5 V DC |
| Input Voltage Range œ1 Signal | 15 V DC / 30 V DC |
| Interface | Remote bus |
| Connection Method | D-SUB-9 |
| Dimensions | 44 x 125 x 146 mm |
