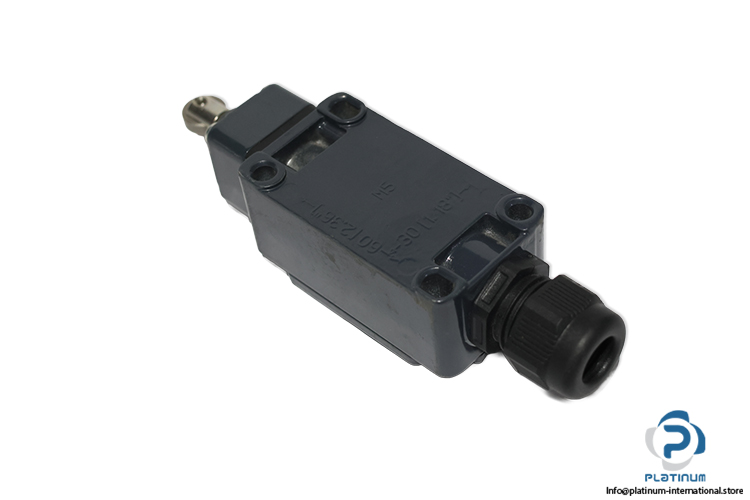

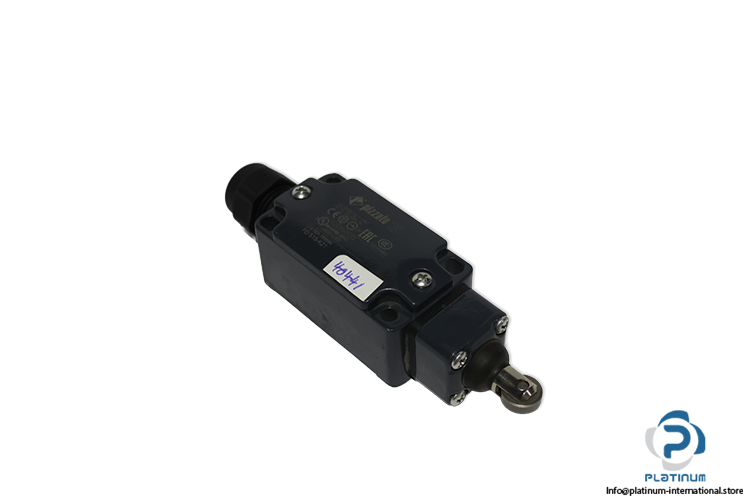

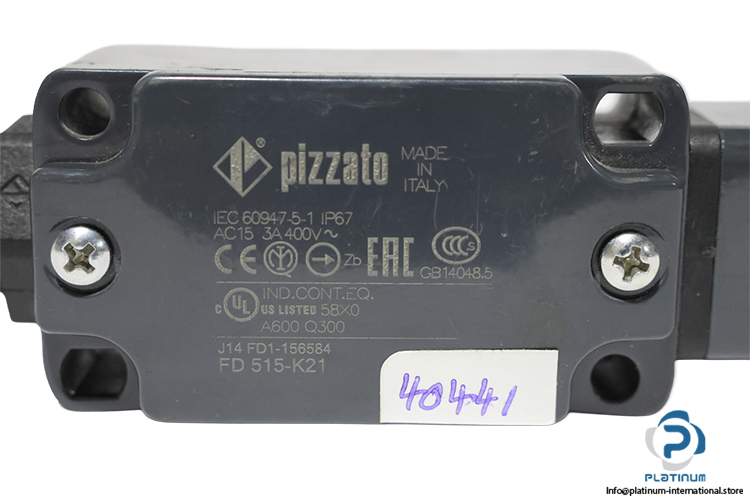

Pizzato FD 515-K21 Position Switch
New
In stock1 unitReady to ship
Pizzato FD515-K21 position switch with roller piston plunger, 1NO + 1NC snap-action contacts, M12 connector, and IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| code | J14 FD1-156584 |
| Series | FD |
| Switching Rating | 3A at 400 V AC |
| Contact Block | 1NO+1NC snap action (B5) |
| Housing | Technopolymer housing one threaded PG 13,5 |
| Head | With roller piston plunger |
| Connection | M12 connector |
| Ambient Operating Temperature | -25 … 80 °C |
| Protection degree | IP67 |
| Dimensions | 83 x 31.2 x 31.7 mms |
| Condition | New |
| Stock key | CON003 |
| SKU | 1105036 |
| Weight | 0,34 |
