PMI MSB15SSSFC Linear Guideway Block
Used
In stock2 unitsReady to ship
Linear Guideway Block PMI MSB15SSSFC is a heavy-load linear guideway block with 15 mm size, square carriage, and high load ratings (10 kN dynamic, 16,9 kN static), designed for precision motion systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | MSB |
| Size | 15 mm |
| Carriage Shape | Square |
| Pitch | 60 mm |
| Dynamic Load Rating | 10 kN |
| Static Load Rating | 16,9 kN |

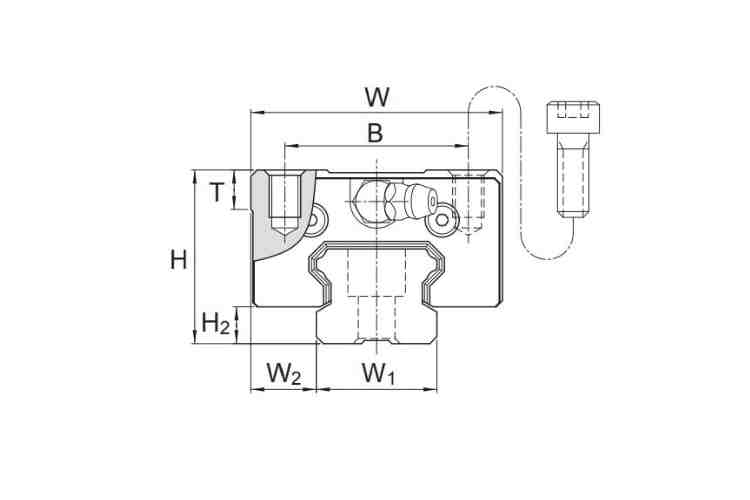

| Height system H | 24 mm |
| Width carriage W | 34 mm |

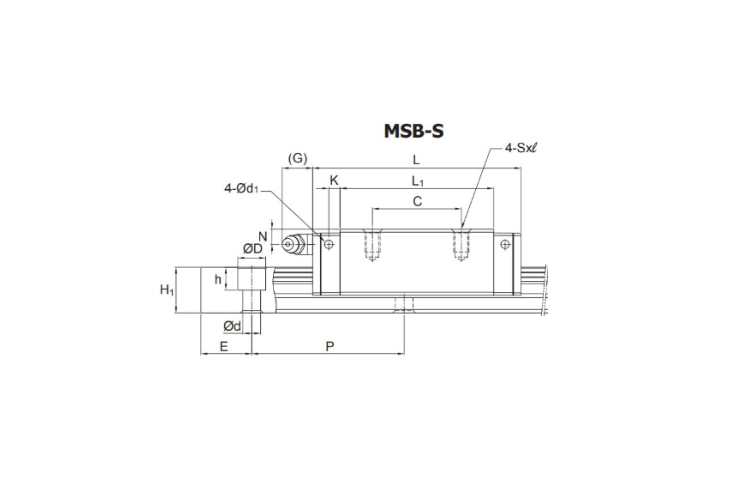

| Overall length carriage L | 57.2 mm |
| L1 | 40.5 mm |
| B | 26 mm |
| C | 26 mm |
| Rail dimensions | (D x h x d) 7.5x5.3x4.5 mm |
| Condition | Used |
| SKU | 1097121 |
| Weight | 0,17 |
