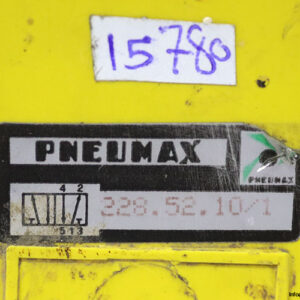

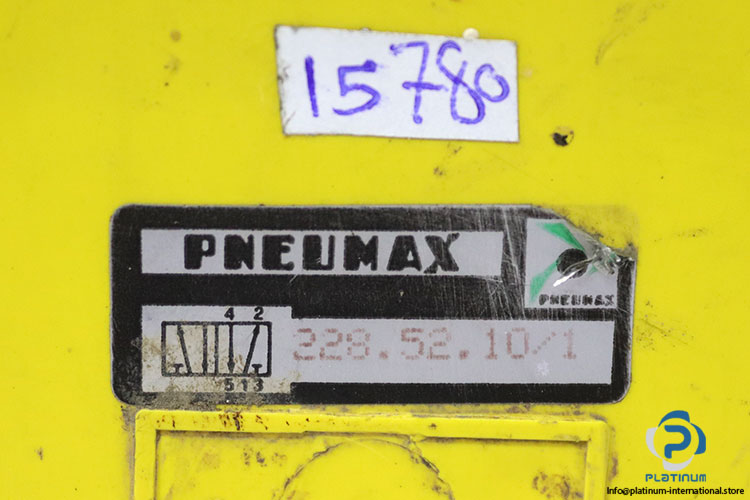

Pneumax 228.52.10/1 Pneumatic Foot Valve
Used
In stock1 unitReady to ship
Pneumatic Foot Pedal Valve
The Pneumax 228.52.10/1 foot pedal valve with yellow guard ensures safe and efficient directional control of compressed air. A 5/2-way spring return valve, ideal for pneumatic tools, clamping devices, and automation systems.228228.52.10/15/2-WayActuatedAutomatioAutomationClampingconnectionControlDevicesDirectionalFootG1/8IndustrialPedalPneumaticPneumaxReturnSeriesspringtoolsValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

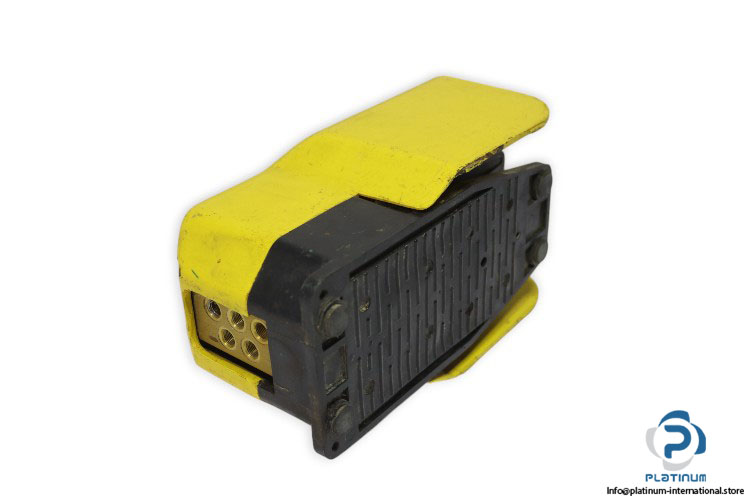

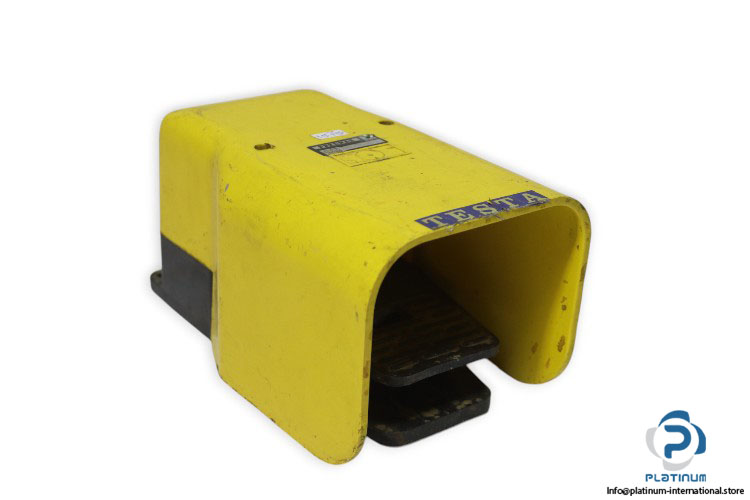

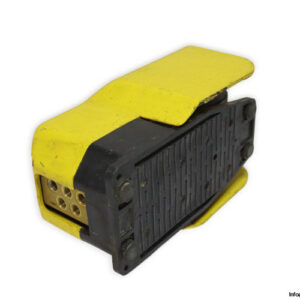

Pneumax 228.52.10/1 Pneumatic Foot Pedal Valve with Guard
The Pneumax 228.52.10/1 is a robust pneumatic foot pedal valve designed for operator safety and reliable performance in automation systems. Featuring a protective yellow guard, this 2-position, 5/2-way valve ensures accurate directional control of compressed air for pneumatic actuators and tools. Its ergonomic design allows comfortable foot operation while maintaining consistent airflow and system efficiency.
Manufacturer: Pneumax
Type: Pneumatic Foot Pedal Valve with Guard (2-positions)
Model: 228.52.10/1
Series: 228
| Fluid | Filtered and lubricated air |
| Max Working Pressure | 10 bar |
| Flow Rate at 6 bar | 540 NI/min |
| Orifice Size | 6 mm |
| Valve Type | 5/2-way pneumatic directional control valve |
| Connection | G1/8 |
| Operation | Foot pedal actuated, spring return |
| Ports | Multi-port pneumatic connections (supply, exhaust, actuator outputs) |
| Housing | Rugged yellow protective guard for safety and operator comfort |
| Function | Directs compressed air flow to actuators / pneumatic cylinders via foot control |
| Applications | Operator-controlled pneumatic tools, clamping devices, presses, and automation systems |
| Operating Temperature | -5 to 70°C |
| Dimensions | 230 x 155 x 150 mm |
