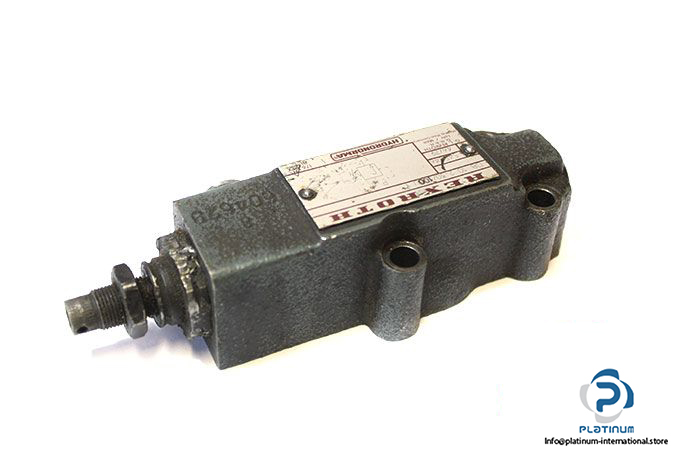

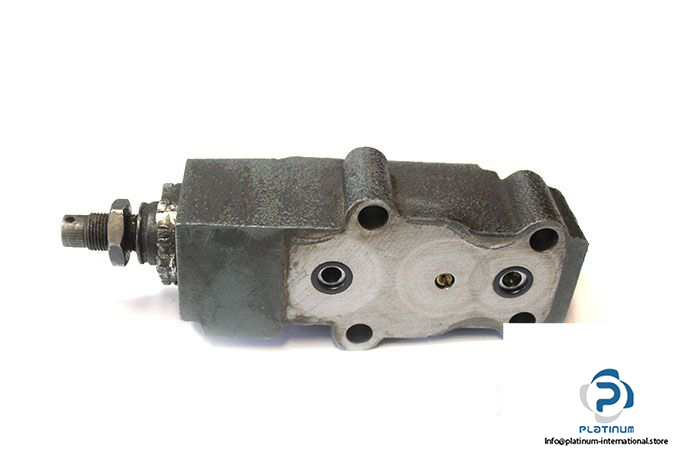

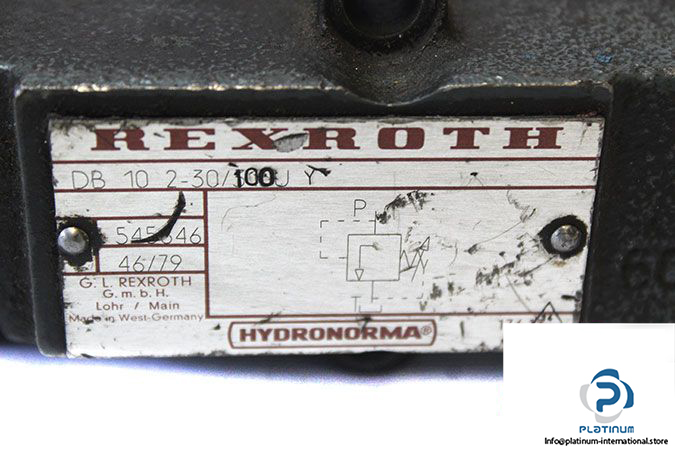

Rexroth DB 10 2-30/100JY Pilot Operated Pressure Relief Valve

Name: REXROTH DB 10 2-30/100JY PILOT OPERATED PRESSURE RELIEF VALVE
Brand: REXROTH
SKU: 988656
Availability: LimitedAvailability

rexroth-db-10-2-30_100jy-pressure-relief-valve-pilot-operated

rexroth-db-10-2-30_100jy-pressure-relief-valve-pilot-operated-2

rexroth-db-10-2-30_100jy-pressure-relief-valve-pilot-operated-1

Used

In stock1 unitReady to ship

PILOT OPERATED PRESSURE RELIEF VALVE

Rexroth Hydronorma DB 10 2-30/100JY NG10 valve with 100 bar pressure setting, high flow capacity, and durable design for precise hydraulic pressure control.

Manufacturer

REXROTH

SKU

988656

Category

Pressure Control Valves

Condition

Used

100 bar Components Control flow High Hydraulic hydronorma Industrial ng10 oil operated Pilot Pressure Relief Rexroth Valve

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

REXROTH HYDRONORMA DB10230100JY PILOT OPERATED PRESSURE RELIEF VALVE

The Rexroth Hydronorma DB 10 2-30/100JY is a high-performance pilot operated pressure relief valve designed for precise and reliable oil pressure control in hydraulic systems. Built for durability, it offers stable operation under high pressures and flow rates.

Manufacturer: REXROTH HYDRONORMA

Type: Pilot Operated Pressure Relief Valve

Model: DB 10 2-30/100JY

Part No.: 545646

Fluid	Oil
Size	NG10
Adjustment Element	Sleeve with hexagon and protective cap
Pressure Setting	100 bar
Max. Operating Pressure at Ports P, X	350 bar
Max. Operating Pressure at Port T	315 bar
Max. Backpressure at Port Y	315 bar
Max. Flow Rate	250 l/min
Ambient Temperature Range	-30 / 80 °C
Viscosity Range	10 / 800 mm²/s
Connection	Sub-plate
