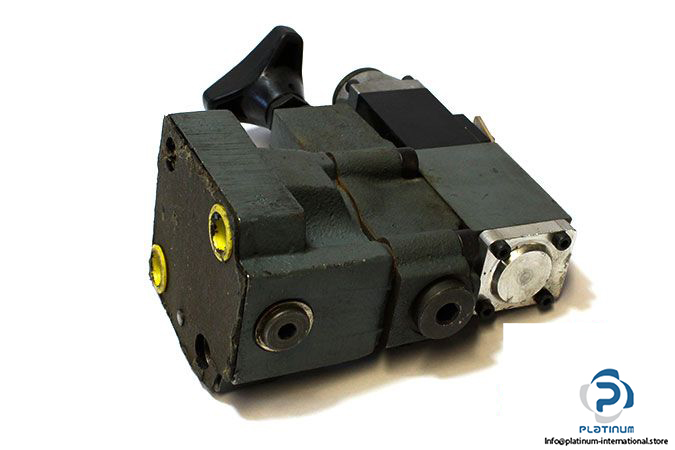

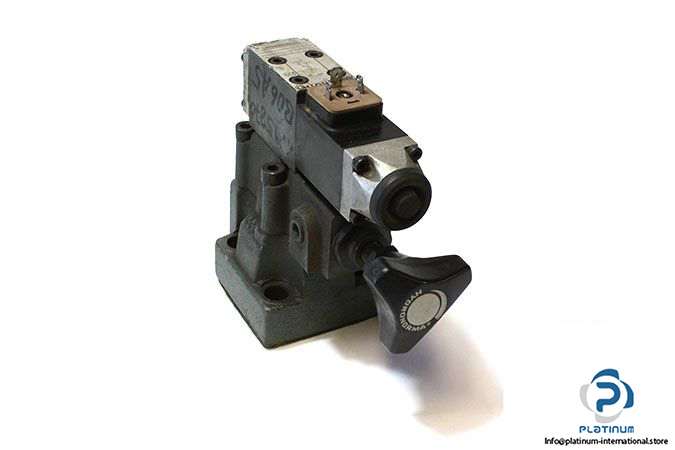

Rexroth Hydronorma DBW 10 B1-31/100UG24NZ5L Pilot Operated Pressure Relief Valve
Used
In stock1 unitReady to ship
PRESSURE RELIEF VALVE WITH SOLENOID
Pilot operated pressure relief valve by Rexroth Hydronorma with 100 bar setting, NG10 size, aluminum body, and attached 24 V DC solenoid coil for stable hydraulic performance.10024vAluminumbarcoilHydraulichydronormaIndustrialmountedng10operatedPilotPressureReliefRexrothsolenoidsub-plateValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
REXROTH HYDRONORMA DBW10B131100UG24NZ5L PRESSURE RELIEF VALVE
The Rexroth Hydronorma DBW 10 B1-31/100UG24NZ5L is a pilot operated pressure relief valve engineered for precise and stable hydraulic system control. Designed for high-pressure applications, it ensures safe operation and consistent performance in demanding environments.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Relief Valve

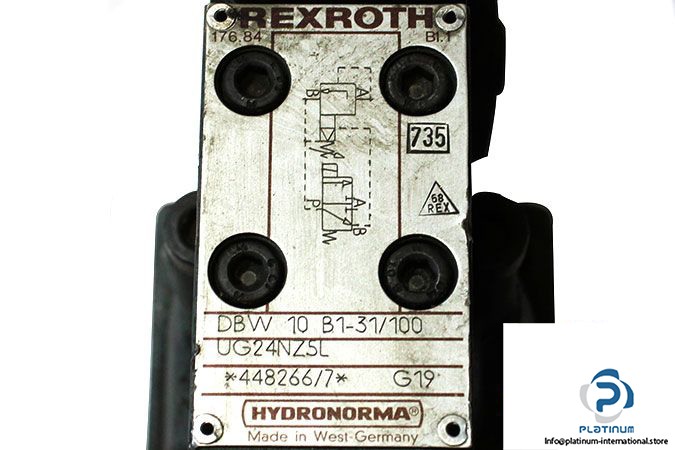

Model: DBW 10 B1-31/100UG24NZ5L
Part No.: 448266/7

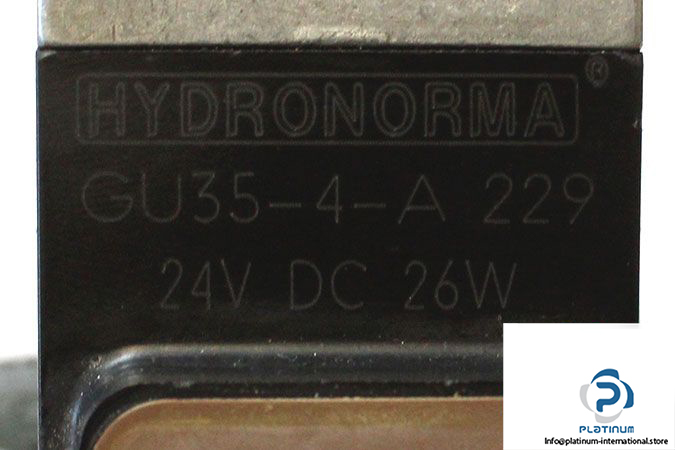

Attached Solenoid Coil
| Fluid | Oil |
| Size | NG10 |
| Adjustment Element | Sleeve with Hexagon and Protective Cap |
| Pressure Setting | 100 bar |
| Max Operating Pressure at Ports P, X | 350 bar |
| Max Operating Pressure at Port T | 315 bar |
| Max Backpressure at Ports Y, T | 210 bar (DC) / 160 bar (AC) |
| Max Flow Rate | 250 l/min |
| Viscosity Range | 10 / 800 mm²/s |
| Material | Aluminum |
| Hydraulic Connection | Sub-plate |
| Ambient Temperature | -30 / 50 °C |
| Supply Voltage | 24 V DC |
| Power Consumption | 26 W |
