Rexroth Hydronorma DBW 10 B1-31/100UG24NZ5L Pilot Operated Pressure Relief Valve
VANNE DE SÉCURITÉ AVEC SOLÉNOÏDE Vanne de décharge pilotée par Rexroth Hydronorma réglée à 100 bar, taille NG10, corps en aluminium, et bobine solénoïde 24 V DC attachée pour une performance hydraulique stable.
REXROTH HYDRONORMA DBW10B131100UG24NZ5L PRESSURE RELIEF VALVE

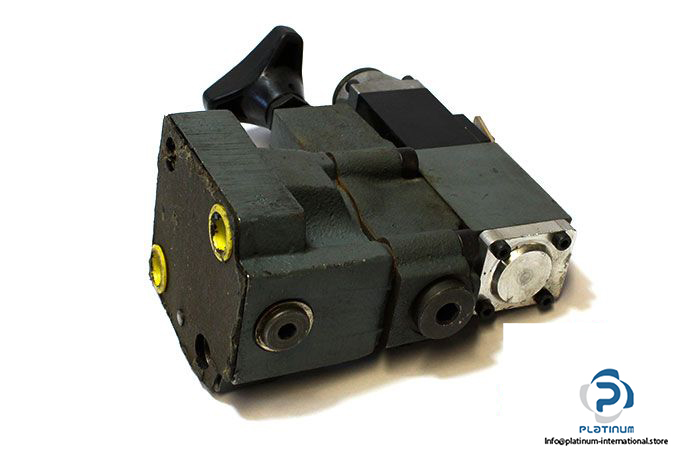

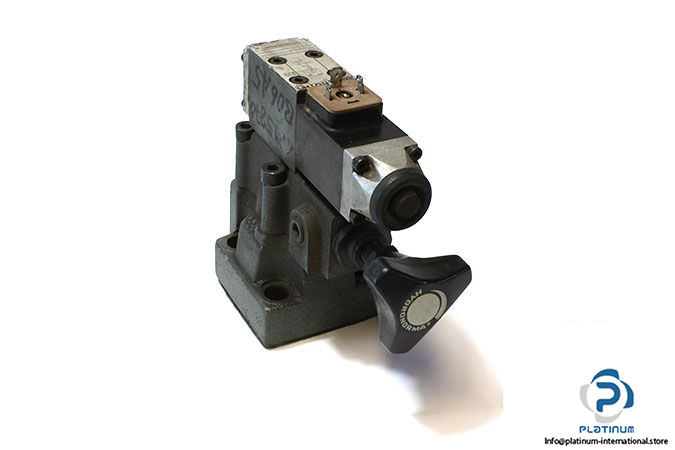

The Rexroth Hydronorma DBW 10 B1-31/100UG24NZ5L is a pilot operated pressure relief valve engineered for precise and stable hydraulic system control. Designed for high-pressure applications, it ensures safe operation and consistent performance in demanding environments.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Relief Valve

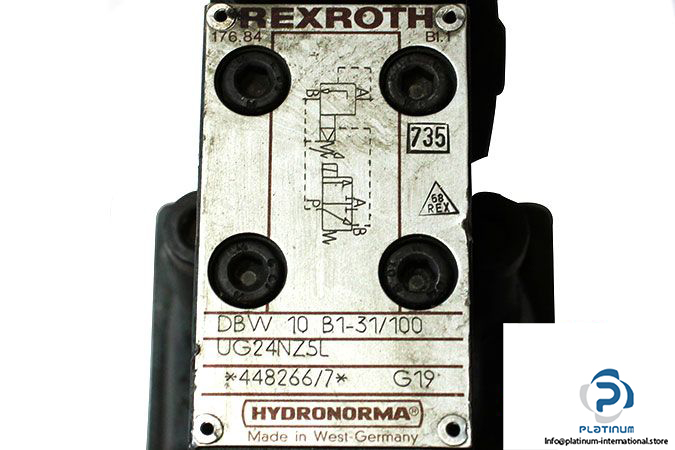

Model: DBW 10 B1-31/100UG24NZ5L
Part No.: 448266/7

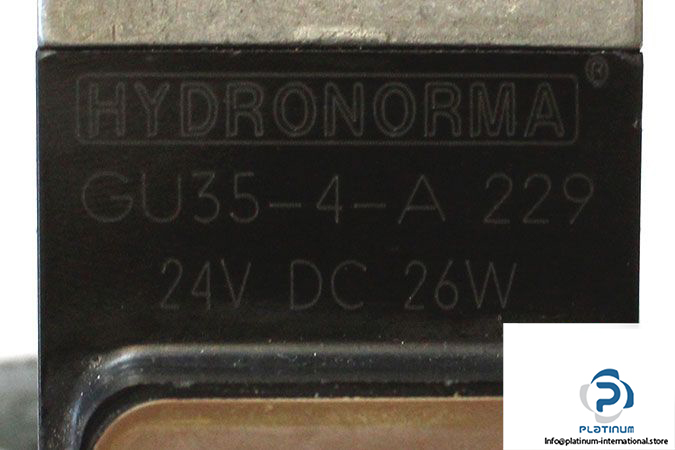

Attached Solenoid Coil
| Fluid | Oil |
| Size | NG10 |
| Adjustment Element | Sleeve with Hexagon and Protective Cap |
| Pressure Setting | 100 bar |
| Max Operating Pressure at Ports P, X | 350 bar |
| Max Operating Pressure at Port T | 315 bar |
| Max Backpressure at Ports Y, T | 210 bar (DC) / 160 bar (AC) |
| Max Flow Rate | 250 l/min |
| Viscosity Range | 10 / 800 mm²/s |
| Material | Aluminum |
| Hydraulic Connection | Sub-plate |
| Ambient Temperature | -30 / 50 °C |
| Supply Voltage | 24 V DC |
| Power Consumption | 26 W |
