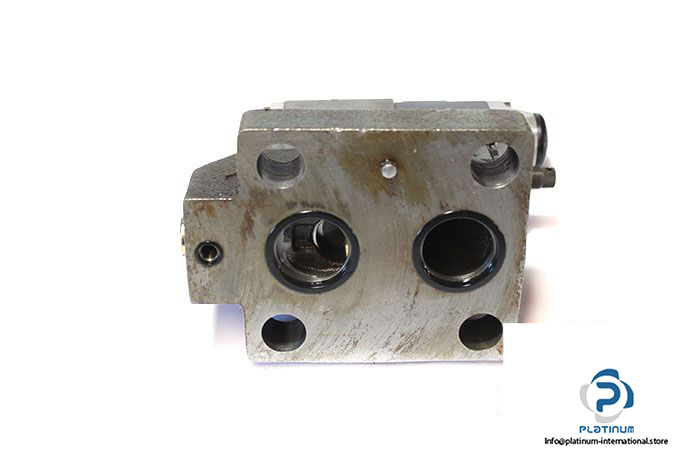

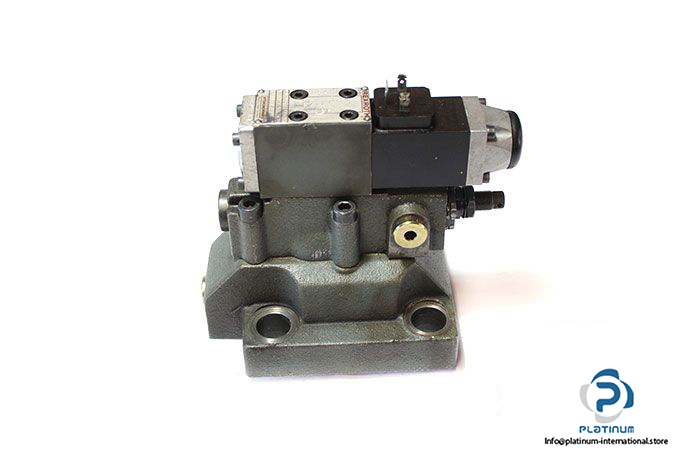

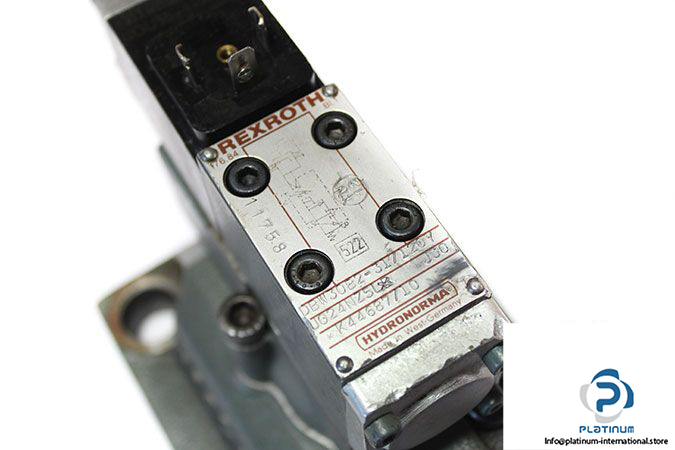

Rexroth DBW30B2-31/120YJG24NZ5LB J30 Pilot Operated Pressure Relief Valve Pilot Operated
Used
In stock1 unitReady to ship
PILOT OPERATED PRESSURE RELIEF VALVE
Rexroth Hydronorma pilot operated pressure relief valve, size 30, designed for high-pressure hydraulic applications with sub-plate connection and robust aluminum body.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
REXROTH HYDRONORMA DBW30B231120YJG24NZ5LB J30 PRESSURE RELIEF VALVE
The DBW30B2-31/120YJG24NZ5LB J30 is a high-performance pilot operated pressure relief valve from Rexroth Hydronorma, designed for reliable overpressure protection in demanding hydraulic systems. Built with a sleeve-type adjustment and durable materials, this valve supports high flow and pressure capacities with sub-plate mounting.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Relief Valve
Model: DBW 30 B2-31/120YJG24NZ5LB J30
Part No.: K44687710
| Size | 30 |
| Adjustment Element | Sleeve with Hexagon and Protective Cap |
| Maximum Operating Pressure | 350 bar |
| Maximum Operating Pressure at Ports P, X | 350 bar |
| Maximum Operating Pressure at Port T | 315 bar |
| Maximum Backpressure at Ports Y, T | 210 with DC solenoid / 160 with AC solenoid |
| Maximum Flow Rate | 650 l/min |
| Connection | Sub-plate |
| Material | Aluminum |
| Ambient Temperature | -30 / 80 °C |
