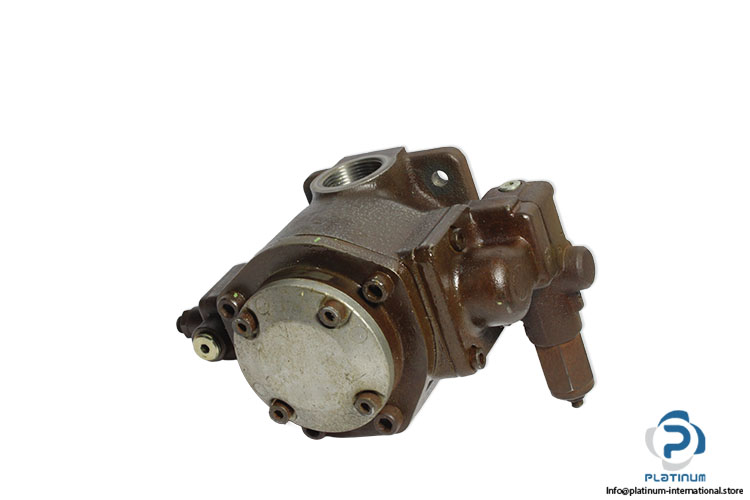

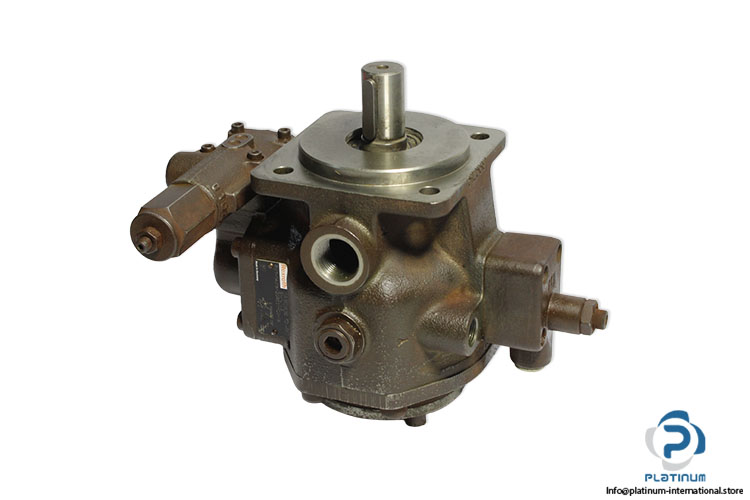

Rexroth PV7-1A/16-20RE01MC0-16 Vane Pump
Used
In stock2 unitsReady to ship
Vane Pump The REXROTH HYDRONORMA PV7-1A/16-20 RE01MC0-16 is an industrial vane pump designed for reliable oil hydraulic systems
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

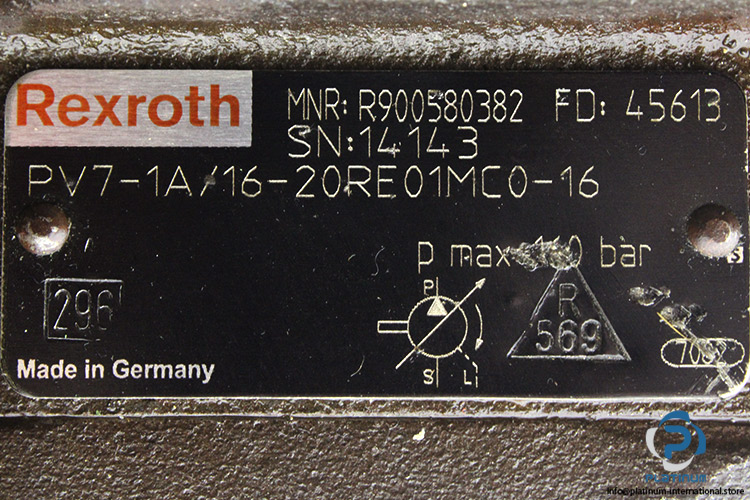

| MNR | R900580382 |
| FD | 45613 |
| SN | 14143 |
| Series | PV7 |
| Drive shaft | Cylindrical drive shaft according to ISO 3019-2 with output |
| Line connections | Suction and pressure port: Pipe thread according to ISO 228-1 |
| Controller type | Pressure controller |
| Fluid | oil |
| Frame size (BG) and size (NG) | BG 16 ‒ NG 20 cm3 |
| displacement | 20 cm3 |
| Shaft Diameter | 25 mm |
| Size [cm³] | 20 |
| Way configuration | PV7...C/D/N/W |
| Operating pressure, max. [bar] | 160.0 |
| Max. flow [l/min] | 29.0 |
| Through drive | with |
| Power rating | 8.5 Kw |
| Maximum torque | 140 Nm |
| Direction of rotation | Clockwise rotation |
| Shaft end | Cylindrical dia 25 mm with fitting key, ISO 3019-2 |
| Mounting flange | 4-hole mounting flange 100B4HW according to ISO 3019-2 |
| Hydraulic fluid | HLP/HLPD/HVLP/HVLPD |
| Seals | NBR |
| Hydraulic fluid temperature range | -10 to +70 c |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100279 |
| Weight | 15,35 |
